FT24 User Manual V1.1

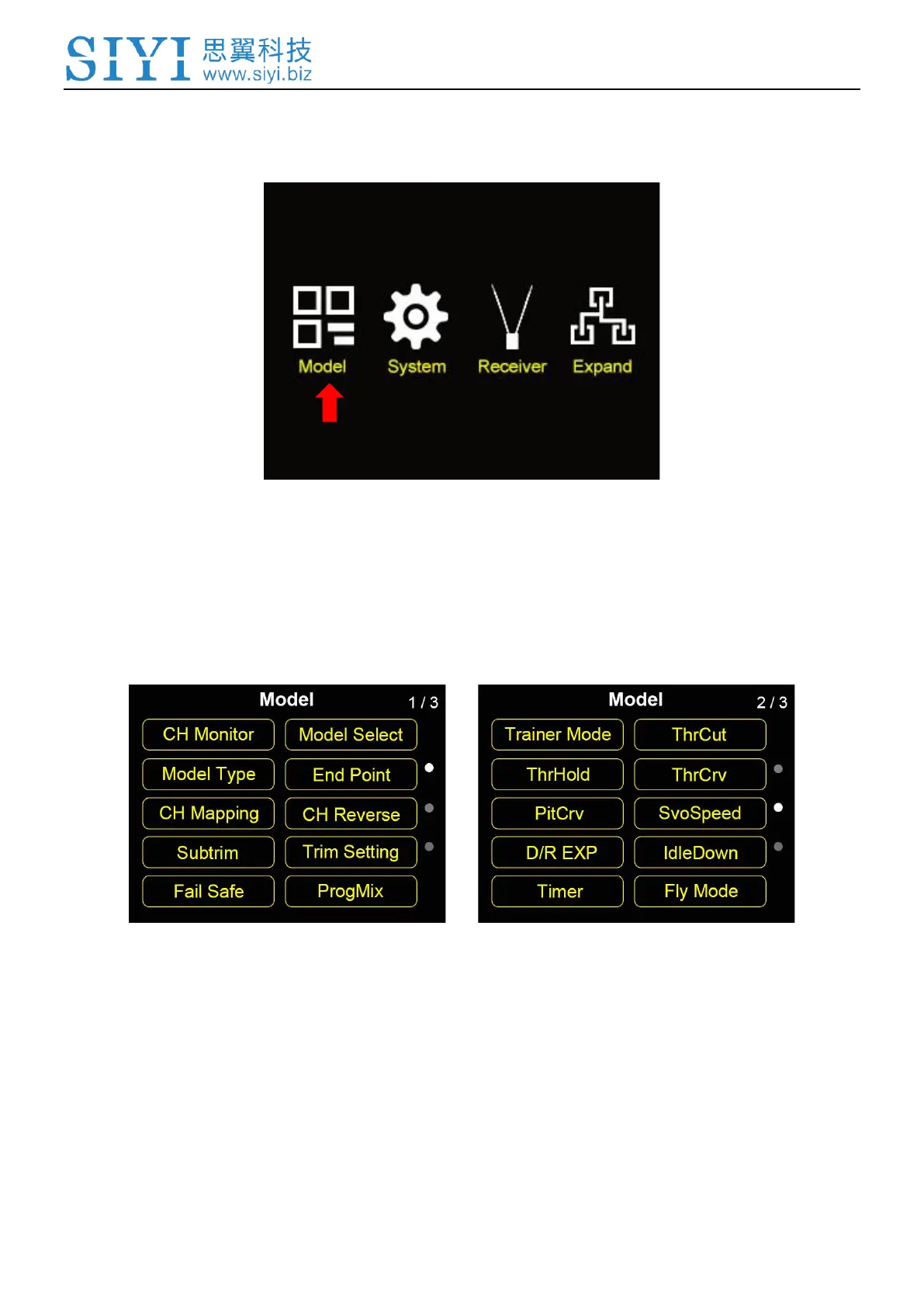

5 MODEL SETTINGS

In FT24 transmitter, the “Model Settings” menu includes a series of useful functions,

which support basic / advanced settings to different model types.
