Type: W1 smooth (max. 24 VDC)
for NLGI Grade 2 greases
with signal smoothing for NLGI Grade 2
greases (W1G = standard design)
2
4
5
3
1
6
7

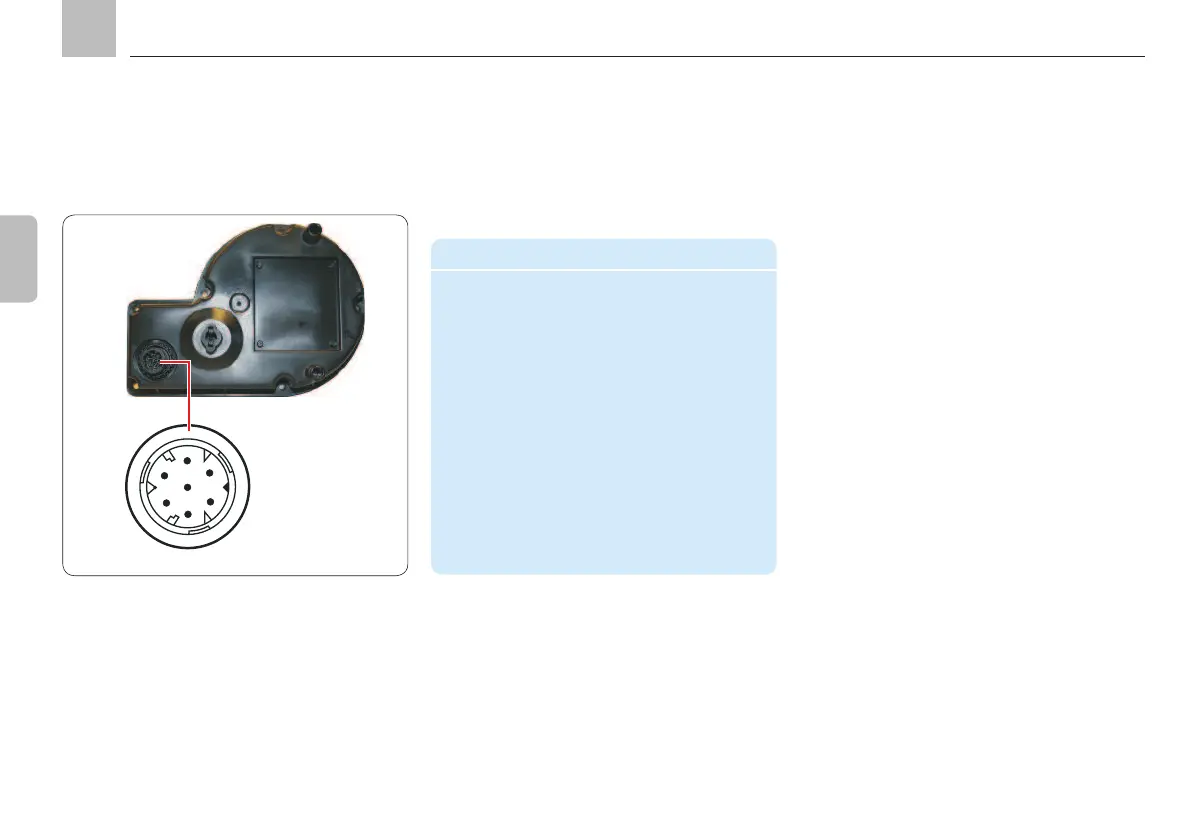

W1G connector pin assignment (pump unit)
PIN Description
1 = 31 - Supply
voltage potential (0V, GND)
2 = 15 + Supply
voltage potential
3 = NC (pin 5 and pin 3
closed, reservoir empty)
4 = NO (pin 5 and pin 3
5 = COM (+ potential)
6/7 = not assigned
Assembly instructions
KFG
