Section 04 ENGINE
Subsection 09 (ROTARY VALVE, COOLANT PUMP AND RESERVOIR)
04-09-3
To remove bearing, use a bearing puller (ex.: Snap-on
no. CJ 950) and pusher (P/N 420 8766 12) as illus-
trated.
1. Press
2. Bearing
3. Bearing puller. Ex.: Snap-on no. CJ 950
14,15,16, Shim, Rubber Washer and
Support Plate
Pry support plate out of crankcase and remove
rubber washer and shim.
11,12,14,15, Bearing 6201 and Seal
To remove bearing 6201 (the smallest one), seals
and rubber washer, use seal pusher (P/N 420
8765 12).
INSPECTION
Inspect rotary valve cover for warpage. Small de-
formation can be corrected by surfacing with fine
sand paper on a surface plate. Surface part
against oiled sand paper.
Inspect bearings. Check for scoring, pitting, chip-
ping or other evidence of wear. Make sure plastic
cage (on bigger bearing) is not melted. Rotate
them and make sure they turn smoothly.
Check for presence of brass fillings in gear hous-
ing.
Visually check gear wear pattern. It should be
even on tooth length all around. Otherwise it
could indicate a bent shaft; check deflection. Re-
place gear if damaged.
Refer to ENGINE DIMENSION MEASUREMENT
04-04.
ASSEMBLY
Assembly is essentially the reverse of disassem-
bly procedures. However, pay particular attention
to the following.
-
CAUTION
Ensure that the rotary valve shaft is perfectly
perpendicular with the press tip or damage
will occur.

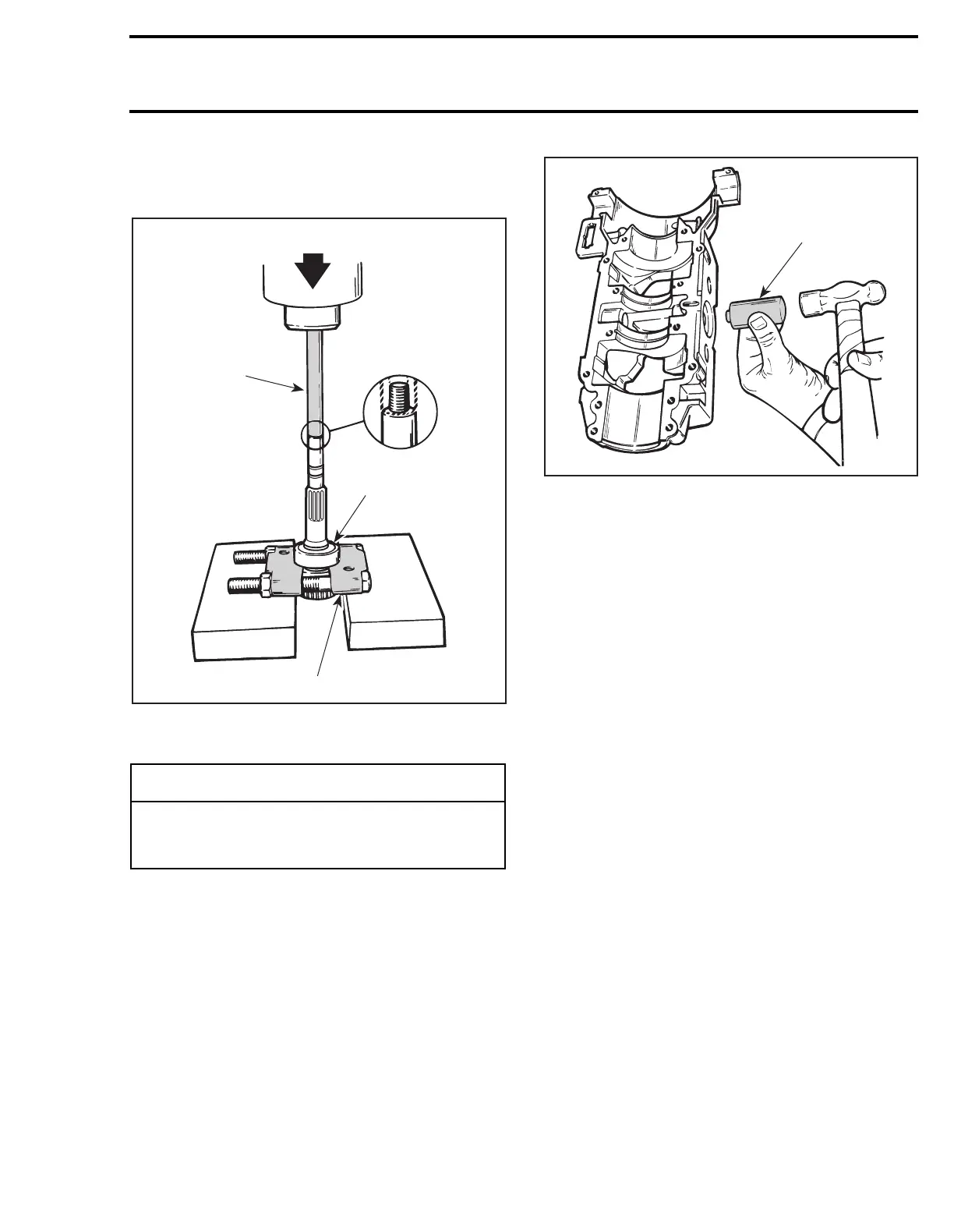

A13C0DA
1
420 8766 12
2
3
A16C0OA
420 8765 12
