Section 05 TRANSMISSION
Subsection 02 (DRIVE BELT)
05-02-1
DRIVE BELT 0
1998 APPLICATION CHART
ROTATION DIRECTION

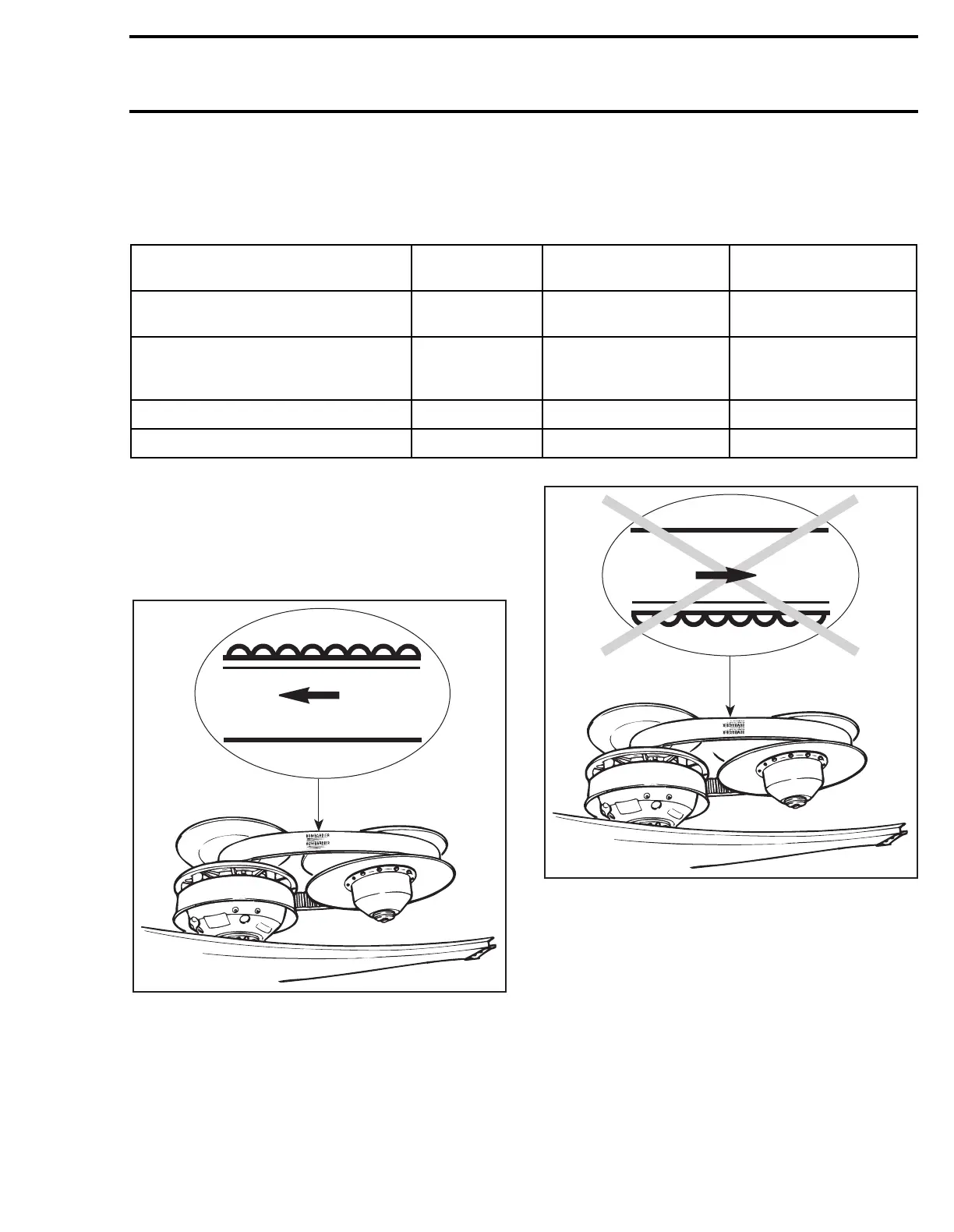

The maximum drive belt life span is obtained
when the drive belt is installed as shown. This will
ensure that correct direction of rotation is respect-
ed.
CORRECT
INCORRECT
NOTE:
For used drive belt, mark and reinstall in
the same position.
MODEL
PART
NUMBER
WIDTH (NEW)
±
0.25 mm (.010 in)
MINIMUM WIDTH
(WEAR LIMIT)
SUMMIT 583/670, FORMULA Z 670
AND MX Z 670
415 0990 00 35 mm (1-3/8) 33 mm (1-19/64)
SUMMIT 500, GRAND TOURING
500/583, FORMULA 500/500DL/583
DL/Z 583 AND MX Z 500/583
415 8607 00 35.3 mm (1-3/8) 32.3 mm (1-17/64)
SKANDIC WT/SWT/WT LC 414 6338 00 34.6 mm (1-23/64) 32 mm (1-1/4)
MX Z 440 415 0606 00 34.7 mm (1-23/64) 32.3 mm (1-17/64)
