Ski-Doo Formula 583 DL 1998 User Manual

Section 05 TRANSMISSION
Subsection 02 (DRIVE BELT)
05-02-2
DRIVE BELT DEFLECTION
MEASUREMENT
NOTE:
The drive belt deflection measurement
must be performed each time a new drive belt is
installed.
NOTE:
To obtain an accurate drive belt deflection
measurement, it is suggested to allow a break-in
period of 50 km (30 mi).
Before checking the belt deflection, ensure vehi-
cle has the proper belt (Refer to the application
chart).
Adjust pulley distance and alignment. Refer to 05-05
PULLEY DISTANCE AND ALIGNMENT.
To obtain maximum vehicle performance, the belt
tension must be adjusted according to specifica-
tions shown in the accompanying chart.
†
FOR REFERENCE ONLY

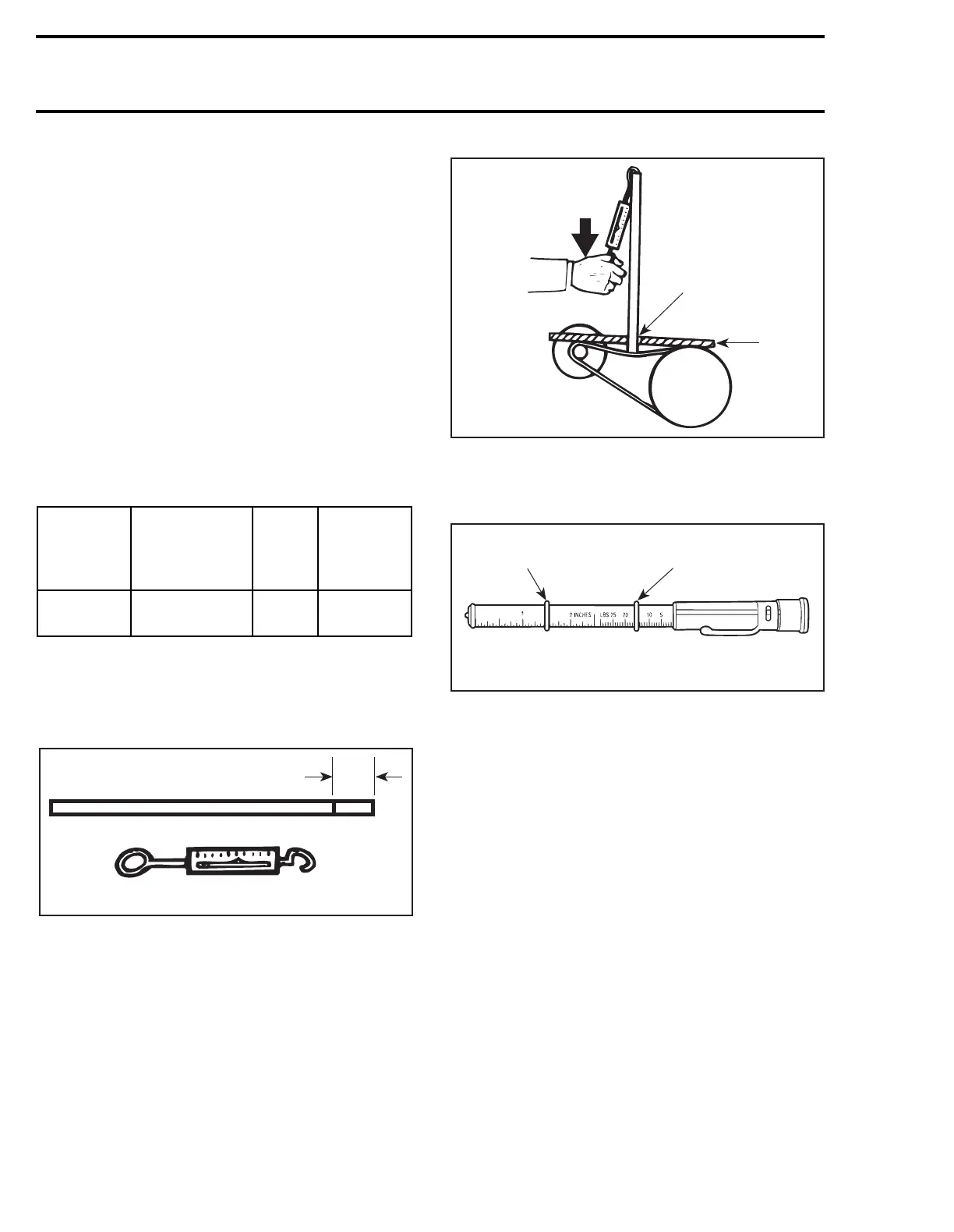

To Check Tension
Position a reference rule on drive belt.
Wooden Stick and Spring Scale Method
1. Mark specified deflection
Using spring scale and stick, apply specified force
on drive belt halfway between pulleys as shown.
1. Force
2. Read deflection here
3. Reference rule
Or use the belt tension tester (P/N 414 3482 00).
1. Lower O-ring
2. Upper O-ring
3. Force (read down)
4. Deflection (read up)
1. Slide lower O-ring of deflection scale to speci-
fied measure.
2. Slide upper O-ring to 0 (zero) on the force scale.
3. Apply pressure until lower O-ring is flush with
edge of rule and read force on the upper scale
at top edge of O-ring.
MODEL
DEFLECTION
mm (in)
FORCE
kg (lb)
HEIGHT
†
OVER
DRIVEN
PULLEY
All models
32
±
5
(1-1/4
±
13/64)
11.3
(25)
0 - 1.5 mm
(0 - 1/16’’)
A00D05A
1
A00D06A
1
2
3
12
34
{
{
A00C07B
