Section 07 REAR SUSPENSION
Subsection 02 (SC-10 SUSPENSIONS (ALL VERSIONS))
07-02-5
COMPONENT REMOVAL AND
INSTALLATION
Lift rear of vehicle and support it off the ground.

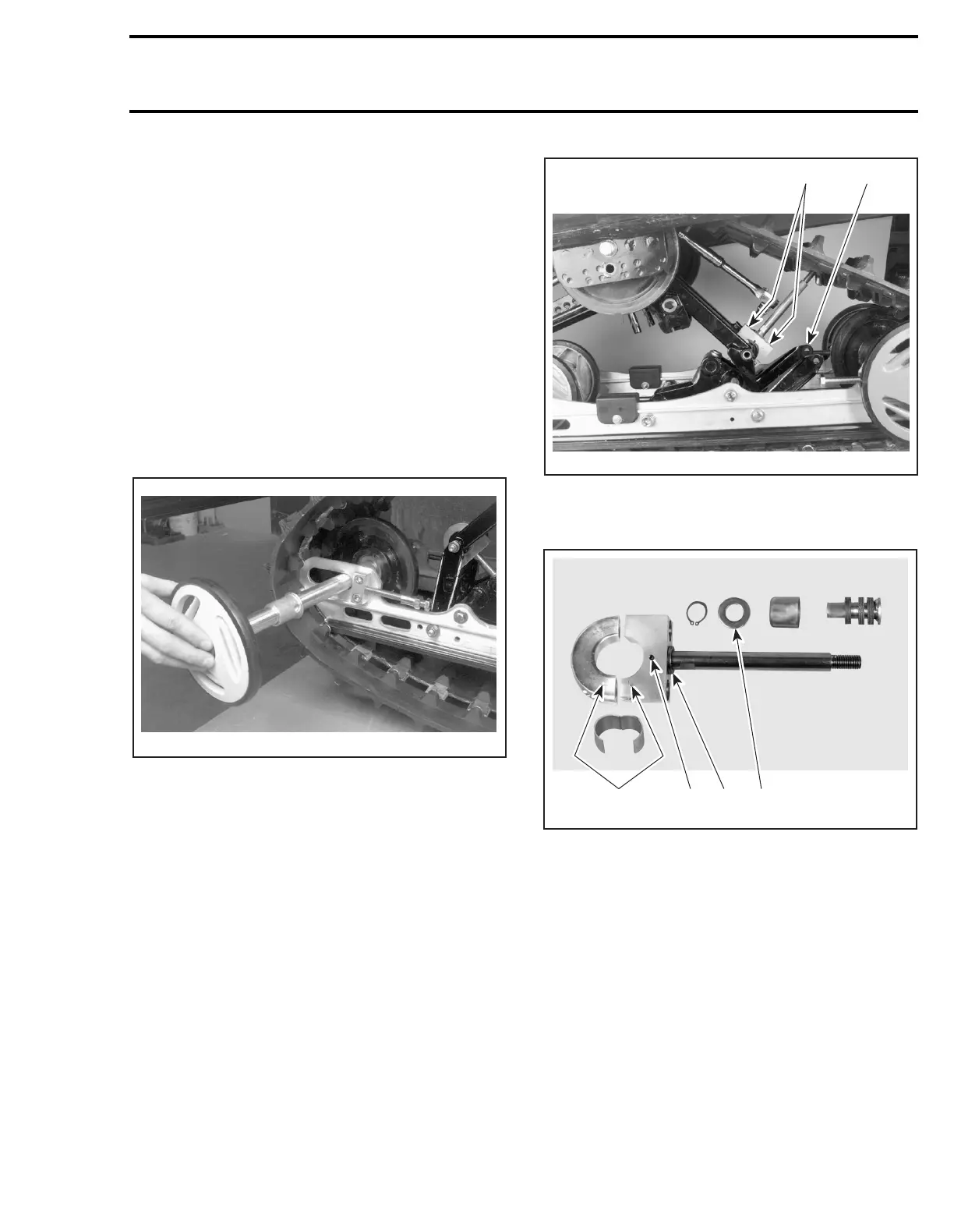

21, Rear Axle
Completely loosen track tension.
Unscrew one rear idler wheel screw.
Pull out rear axle from opposite side of offset in-
ner wheel. Proceed on either sides for models
with 4 wheels on rear axle.
At assembly, temporary loosen rear shackle lower
pivot nut and ACM (Acceleration and Control
Modulator) support rear bolt.
Align spacer hole with adjusting bolt.
TYPICAL
SC-10 HP and XC
22, Threaded Rod
NOTE:
Do not disassemble threaded rod ass’y
needlessly.
Lift rear of vehicle.
Unhook rear springs.
Unscrew threaded rod nut.
Remove through bolt from shackle.
Swing shackle rearward.
Collapse suspension in order to disengage thread-
ed rod from its support.
1. Block ass’y Allen screw
2. Schackle
Unscrew block ass’y Allen screws.
1. Marks
2. Roll pin
3. Smaller washer
4. Larger washer
23, Cushion
Separate pivot block.
Remove cushion.
Apply lithium grease on cushion at reassembly.
At assembly, match marked side of both pivot
blocks.
When cup is disassembled, it may be too difficult
to install circlip before reinstalling this assembly.
Install all parts and the circlip loosely around
threaded rod. Compress rear of vehicle or lift the
front to easily install circlip in its groove.
A03F1LA
A03F2DA
12
A03F2BA
1 23 4
