Section 07 REAR SUSPENSION
Subsection 02 (SC-10 SUSPENSIONS (ALL VERSIONS))
07-02-11
INSTALLATION
Install assembled suspension into track with front
portion first.
Insert rear portion of suspension into track.
Bolt front arm, rear arm then center top idler wheel
axle.
Adjust track tension.
RIDE ADJUSTMENT
Refer to
Operator’s Guide
.
LUBRICATION

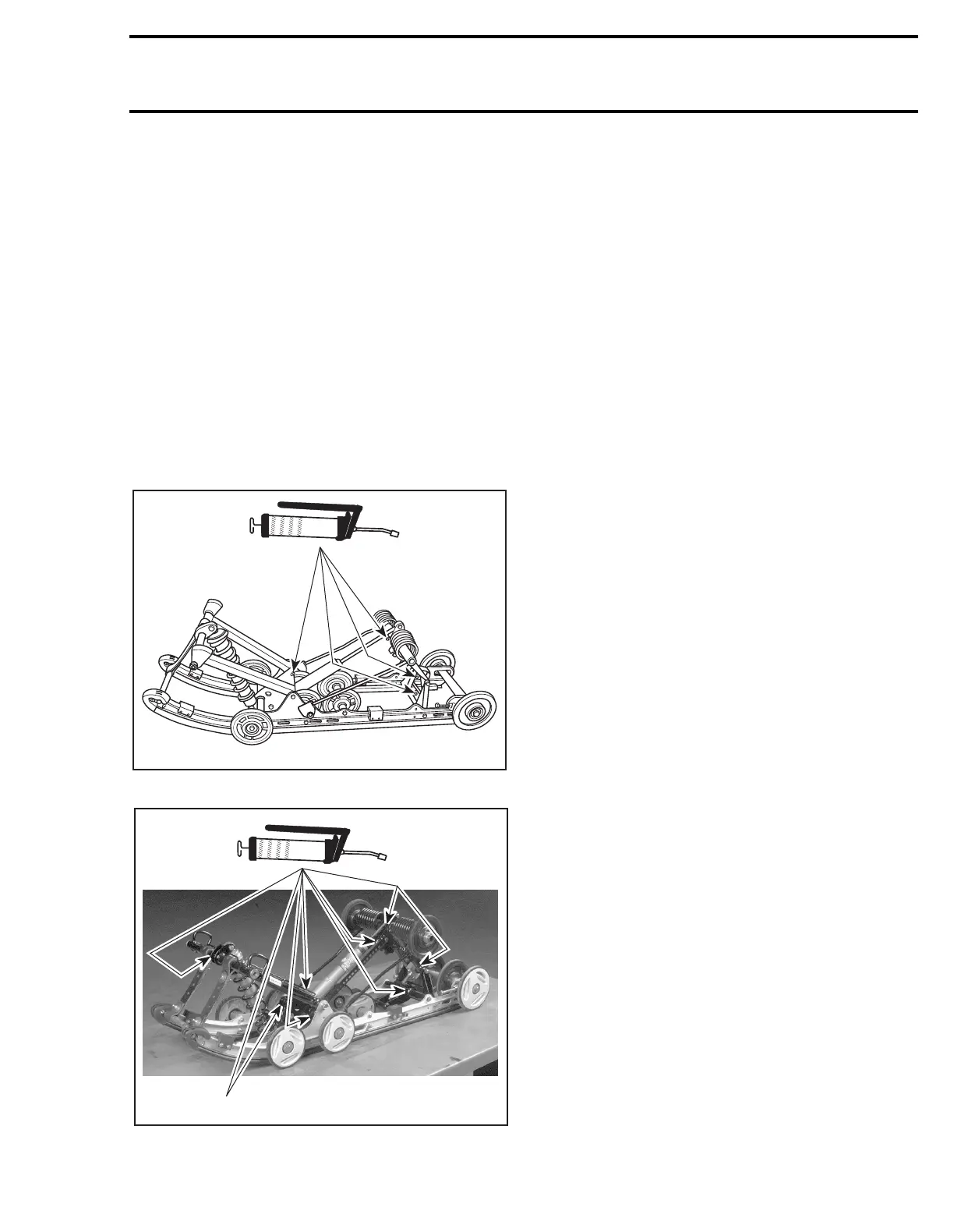

Lubricate front and rear arms at grease fittings us-
ing synthetic grease (P/N 413 7115 00).
SC-10 SPORT, MOUNTAIN AND TOURING: 4 GREASE FITTING
SC-10 XC AND HP: 7 GREASE FITTINGS
1. Only the GT 583 has this 8
th
grease fitting
