Section 07 REAR SUSPENSION
Subsection 05 (DRIVE AXLE)
07-05-9

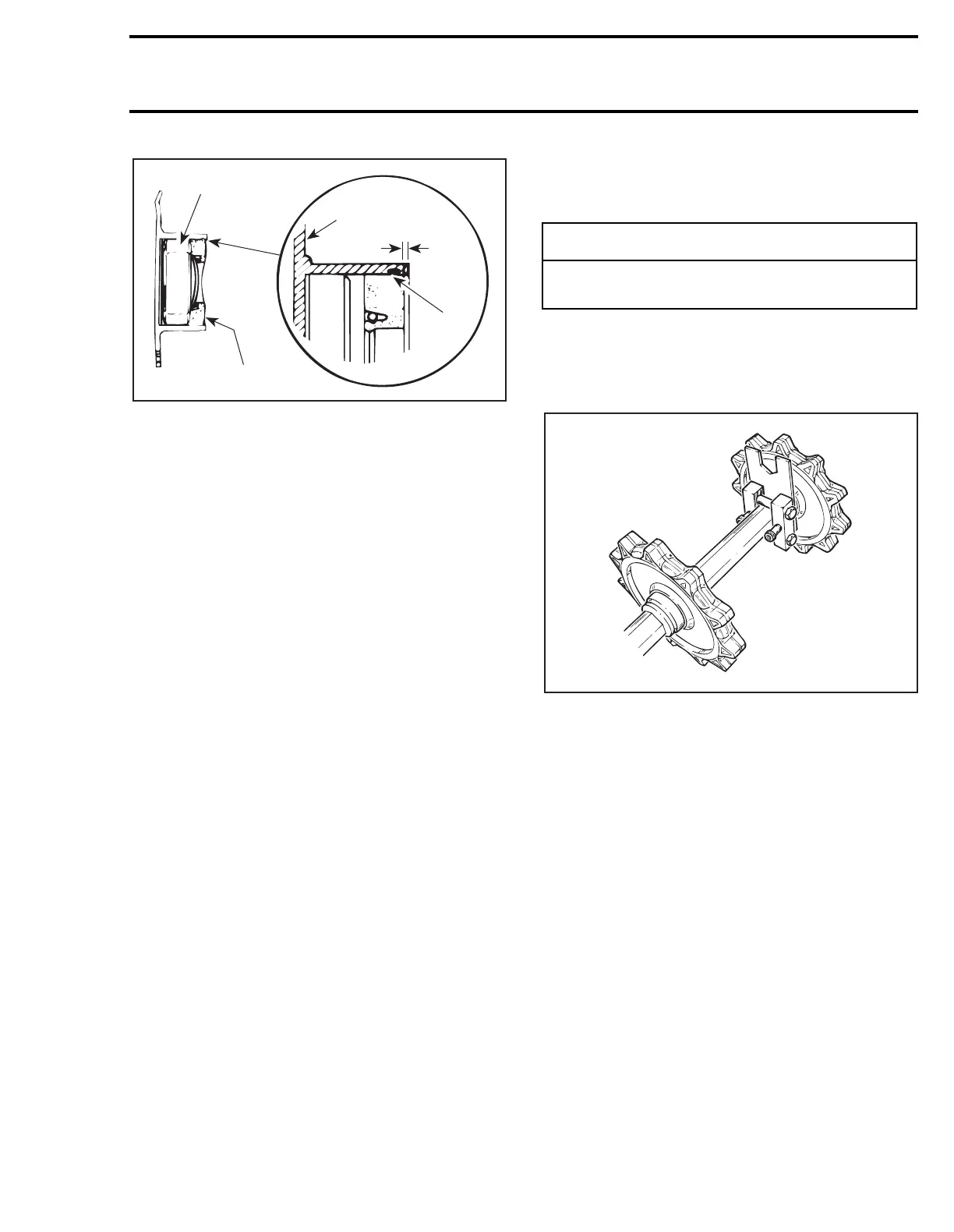

SIDE VIEW
1. Bearing
2. Seal
3. Housing
4. Seal lip
A. 2 mm approx.
3, Retainer Ring
Make sure that welded nuts are toward inside of
tunnel.
Lock drive axle sprocket with a circlip.
Reinstall the chaincase cover.
Refill with chaincase oil. Refer to TECHNICAL
DATA 10-03.
Install the suspension. Refer to TRACK 07-06 and
adjust track tension and carry out track alignment
procedure.
LUBRICATION
15, Grease Fitting
Lubricate end housing bearing with synthetic
grease (P/N 513 7115 00).
ADJUSTMENT
Sprocket/Track Alignment
Sprockets might be repositioned to fit lugs with-
out removing drive axle.
Use drive axle sprocket adjuster kit (P/N 861 7257
00).
TYPICAL
A00F0GA
A
3
1
2
4
-
CAUTION
Do not tamper with sprocket/track alignment
if frame or suspension is damaged.
A01B2PA
