Section 08 STEERING/FRONT SUSPENSION
Subsection 03 (SUSPENSION AND SKI SYSTEM)
08-03-5
ON-VEHICLE COMPONENT
VERIFICATION
8, Shock
Lift front of vehicle and support off the ground.
Remove ski bolt and nut.
Remove steel bushing from ski using a pusher.
See pusher dimensions below.
A. 220 mm (8.66 in)
B. 180 mm (7.09 in)
C. 70 mm (2.75 in)
D. 25 mm (1.0 in)
E. 15 mm (.59 in)
F. 9 mm (.35 in)
Unfasten rod nut then pull out shock from bottom.
Check shock as described below in
INSPECTION
.
At installation, make sure bushings are in place.
1. Bushings
7, Spring
Unscrew shock piston pin nut then remove washer.
Unscrew 3 Allen screws retaining cover
no. 3
,
then remove stopper
no. 5
, washers
no. 6
, washer
no. 19
.
1. Allen screws
NOTE:
These washers and stopper can be wedged
in cover.

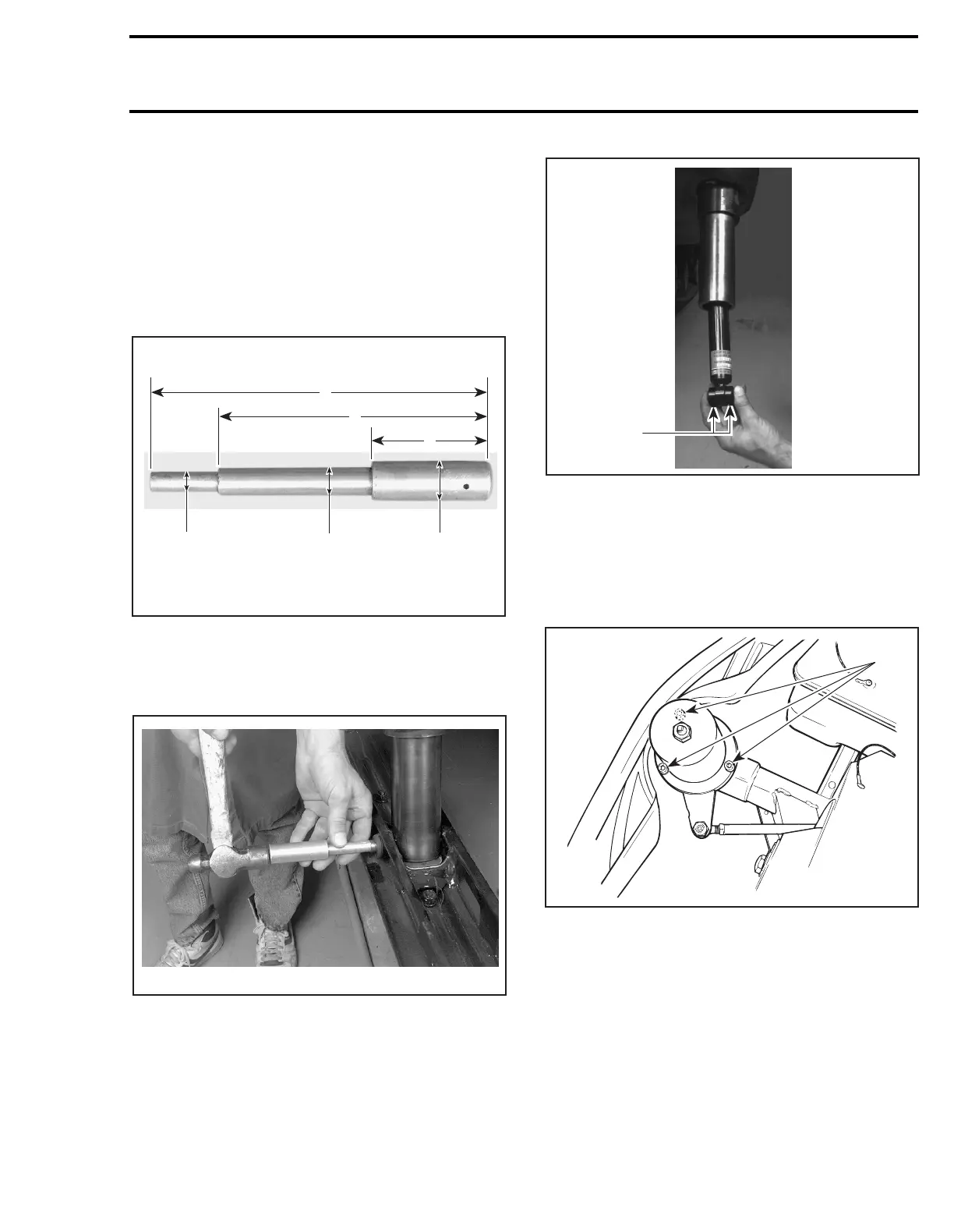

A22G0OA
