Section 05 TRANSMISSION
Subsection 08 (GEARBOX)
05-08-2

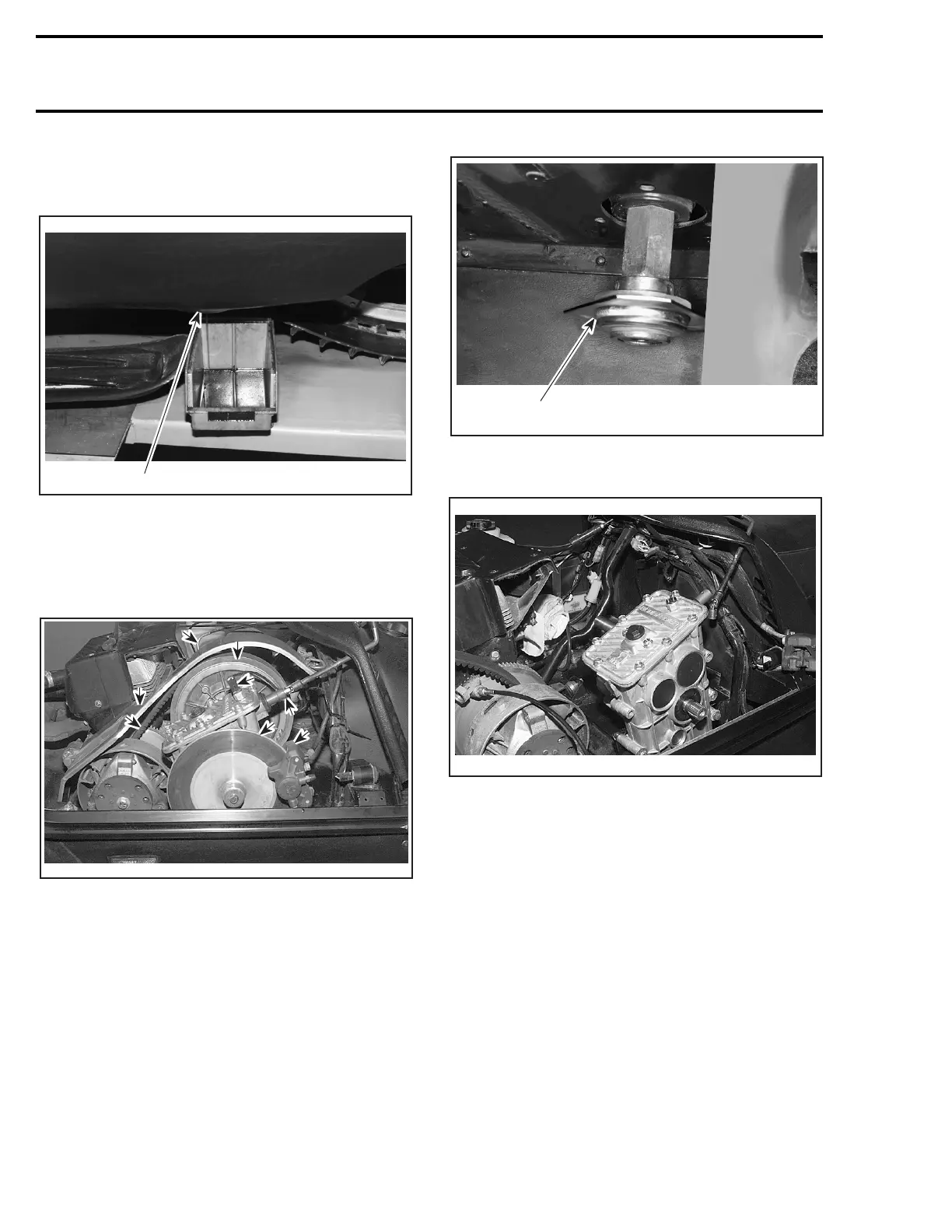

REMOVAL
Drain gearbox oil.
1. Bottom pan drain hole nearby gearbox drain plug
Remove belt guard, drive belt. Remove air silenc-
er, carburetor(s) then, driven pulley.
Remove brake caliper, brake disc. Unfasten shift-
ing rod and unplug reverse switch.
Remove rear suspension.
Remove angle drive and square pin from bottom
of gearbox.
Remove muffler. Unbolt RH end bearing then pull
drive axle toward right side.
1. RH end bearing
Unbolt gearbox from chassis.
DISASSEMBLY
For the following procedure, right hand side refers
to driven pulley side and left hand side to brake
disc side.
A29D0LA
1
A29D0MA
A29D0NA
1
A29D0OA
