Section 06 ELECTRICAL
Subsection 06 (TESTING PROCEDURE)
06-06-4
3. IGNITION SWITCH, TETHER
CORD SWITCH AND
EMERGENCY SWITCH
TESTING

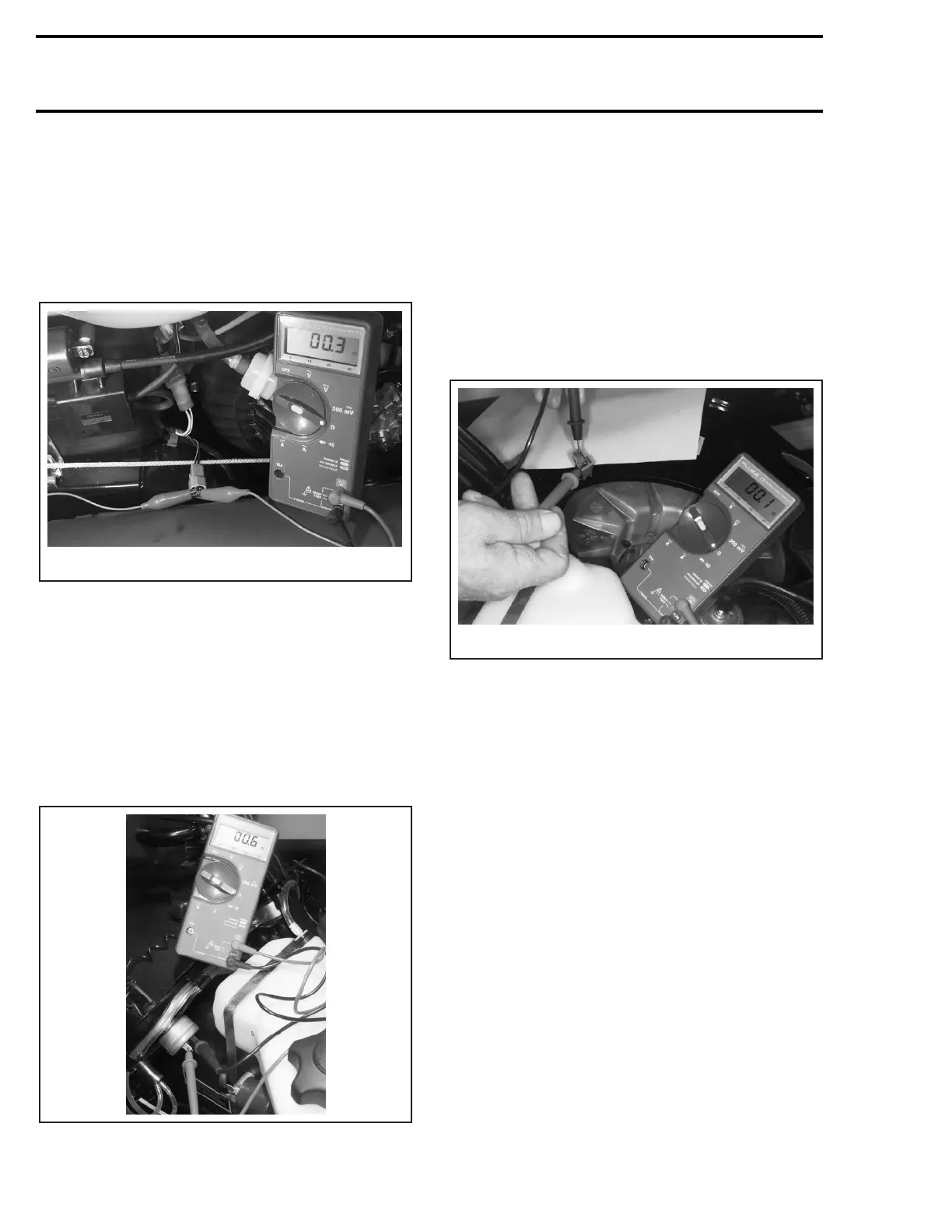

Disconnect connector housing from engine and
check resistance as indicated in IGNITION table.
TYPICAL
If readings are acceptable, go on to next step.
If readings are inadequate, individually check each
switch as follows.
Ignition Switch (key)
Disconnect switch housing. Using a multimeter,
check between
MAG
and
GRD
terminals if the
circuit is open (0.L
M
Ω
) in operating position and if
the circuit is closed (0
Ω
) in off position.
TYPICAL
If readings do not correspond to the above-mentioned
indications, replace switch.
If readings are acceptable, check other switches.
Emergency Switch
Unplug switch block connected to main wiring
harness. Check using a multimeter. Connect
probes to BLACK/YELLOW and BLACK wires.
The multimeter should indicate an open circuit
(0.L
M
Ω
) in operating position and a closed circuit
(0
Ω
) in off position.
TYPICAL
If readings do not correspond to the above-men-
tioned indications, replace switch.
If readings are acceptable, check other switches.
Tether Cord Switch
Unplug switch block connected to main wiring
harness. Check using a multimeter by connecting
probes to BLACK/YELLOW and BLACK wires.
The multimeter should indicate an open circuit
(0.L
M
Ω
) in operating position and a closed circuit
(0
Ω
) in off position.
A05E06A
A05E07A
A05E08A
