Section 07 REAR SUSPENSION
Subsection 05 (DRIVE AXLE)
07-05-7

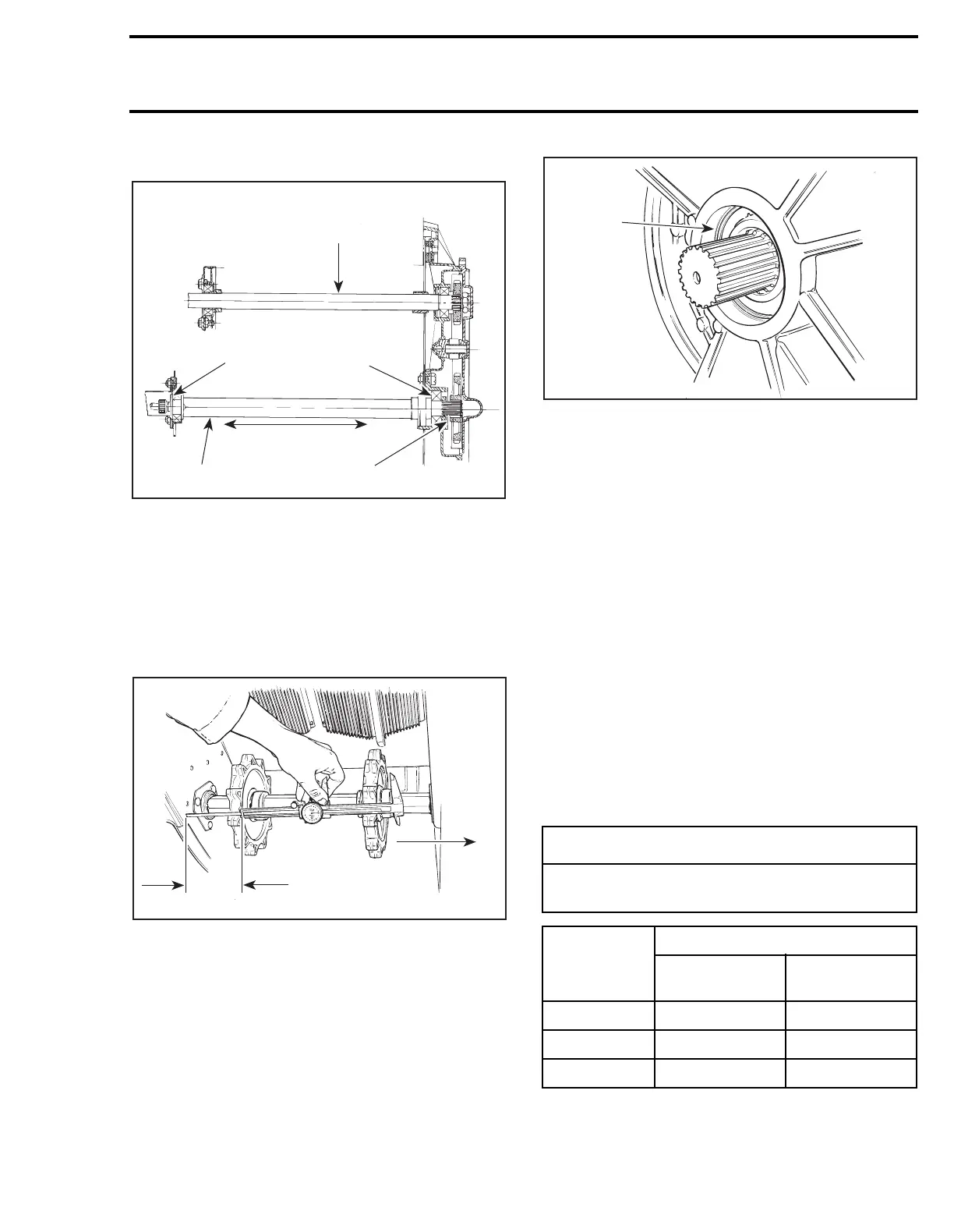

AXIAL PLAY ADJUSTMENT
TOP VIEW
1. Countershaft
2. Shim position on end bearing housing side
3. Shim position on chaincase side
4. Drive axle
5. Axial play
6. Shim between sprocket and spacer
– Push the drive axle toward chaincase and take
note of the distance between the sprocket and
tunnel.
1. Distance between sprocket and tunnel
2. Drive axle pushed toward chaincase
1. No gap all around
– Pull drive axle toward the end bearing housing
and take note of the measurement between
sprocket and tunnel.
The drive axle axial play is the difference between
these 2 measurements.
– Repeat this procedure 2 or 3 times to obtain an
accurate measurement.
The allowable drive axle axial play is 0 to 1.5 mm
(0 to .060 in).
The drive axle axial play, as calculated above,
should be within the allowable axial play, add
shim(s) accordingly.
– Remove drive axle, install required shim(s) as
per the
shim position
chart, reinstall drive axle
without the suspension and track.
SHIM POSITION
Shim position is important to maintain proper
sprocket alignment.
A01D04A
1
3
2
4
5
6
A01D08A
2
1
-
CAUTION
Install shim(s) following the pattern shown
in the chart.
SHIM(S)
REQUIRED
SHIM POSITION AND QUANTITY
END BEARING
HOUSING SIDE
CHAINCASE
SIDE
11
21 1
32 1
A01D09A
1
