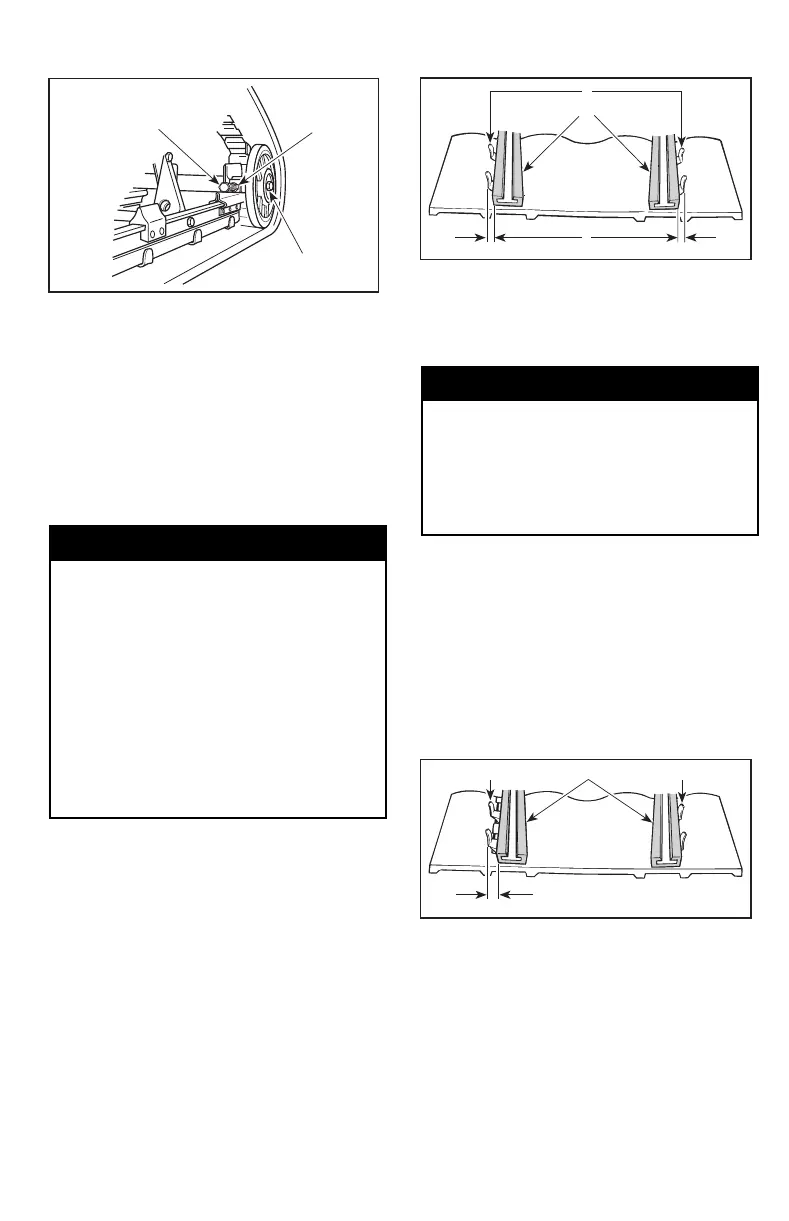

1. Adjustment screw
2. Loosen lock nut (on so equipped models)
3. Loosen screw
– Retighten retaining screws and lock
nuts (on so equipped models).
– Check track alignment as described
below.
Alignment
WARNING
Before checking track alignment,
ensure that the track is free of all
particles which could be thrown
out while track is rotating. Use a
wide-based snowmobile mechani-
cal stand equipped with a protec-
tor back panel. Keep hands, tools,
feet and clothing clear of track. En-
sure no one is standing in close
proximity to the snowmobile, es-
pecially at the rear of the track.
Never rotate track at high speed.
Start the engine and accelerate slightly
so that track barely turns. This must
bedoneinashortperiodoftime(15
to 20 seconds).
Check that the track is well centered;
equal distance on both sides between
edges of track guides and slider shoes.
A01F05A
1
2
3
1. Guides
2. Slider shoes
3. Equal distance
To Adjust Track Alignment:
WARNING
Remove tether cord cap (DESS
key) before performing any main-
tenance or adjustment, unless
otherwise specified. Vehicle must
be parked in a safe place, away
from the trail.
– Remove the tether cord cap (DESS
key).
– Loosen rear idler wheel retaining
screws.
– Loosen the lock nuts (on so
equipped models).
– Tighten the adjustment screw on
side where the slider shoe is the far-
thest from the track insert guides.
A01F0BA
1
2
3
1
1. Guides
2. Slider shoes
3. Tighten on this side
Tighten lock nuts (some models only)
and retaining scre
ws.
