37
SKOPE Reflex Upright Fridge, Freezer, Combo
Replacement Procedures
Service Manual

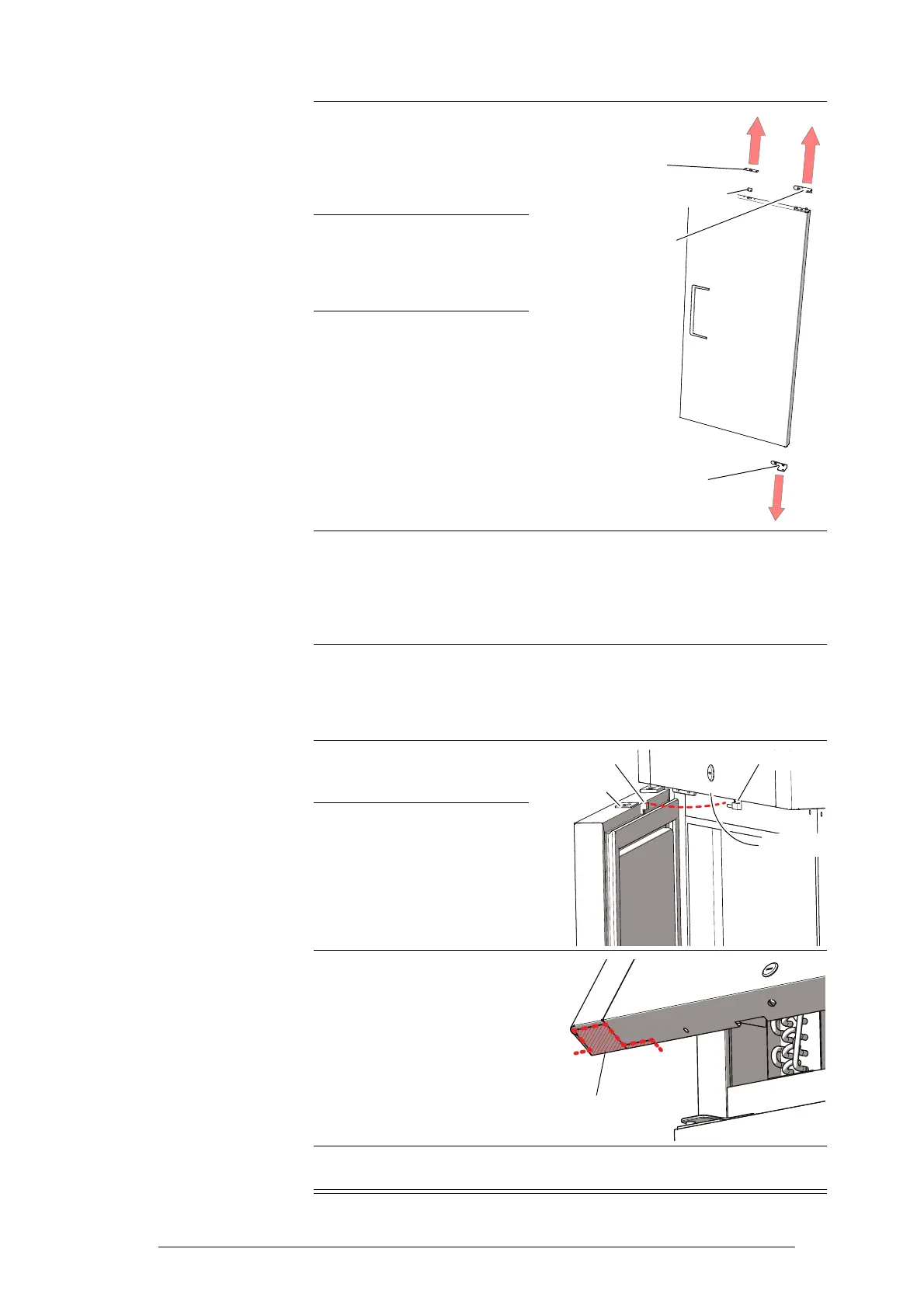

5. Unscrew and remove the
RH top and bottom hinges
from the door (2 × M4 socket
head screws and washers
per hinge). These are no
longer required.
6. Unscrew and remove the
door switch magnet and lock
plate from the top of the
door. Retain these for
refitting later.
7. Rotate door 180°.
8. Fit the LH top and bottom hinges to the door (2 × M4 socket head screws and
washers per hinge). Top and bottom hinges are not interchangeable, and can
be differentiated by weight (the bottom heavy duty hinge is heavier than the
top hinge). Ensure the bottom hinge is fitted the bottom of the door, and the
top hinge to the top of the door (when the door is rotated 180° from original
hinging).
9. Fit the door back onto the
cabinet (4 × M6 socket head
screws). Adjust height as
required to align door to
cabinet.
10. Refit the door switch magnet
using holes on top of door
(2 × screws).
11. Refit the lock plate:
• Drill 1 × 10mm hole,
10mm deep for lock bolt
engagement.
• Refit the lock plate using
holes on top of door (2 ×
screws).
12. Remove the slotted section
from the LH bottom edge of
the top panel, allowing the
top panel to close over the
new LH hinge. Ensure the
exposed edge is fully de-
burred.
Close the top panel and refit
screws.
13. Check that the door seal gasket is fitted correctly and forms a complete seal
with the cabinet when the door is closed.
Bottom hinge (discard)
Lock plate (retain)
Door switch magnet (retain)
Top hinge (discard)
Door switch magnet
Lock bracket
Lock bolt
Door switch
