Skope ReFlex Upright - Condenser Probe

56
Replacement Procedures
Service Manual
SKOPE Reflex Upright Fridge, Freezer, Combo
Condenser
Probe
The condenser probe is located on the side of the condenser coil.
To replace the condenser probe
1. Disconnect the cabinet from the power supply and remove the refrigeration
cartridge (see page 41).
2. Take note of cable routing (photo recommended), then carefully cut cable
ties to release the probe cable. Detach the probe from the side of the
condenser coil, and trace the probe cable back to it’s connector, and
unplug.
3. Following the same path as the original probe, run the new probe to the
condenser coil and secure with cable ties. Locate the probe in the same
location as the original probe.
4. Reassemble and test for correct operation.

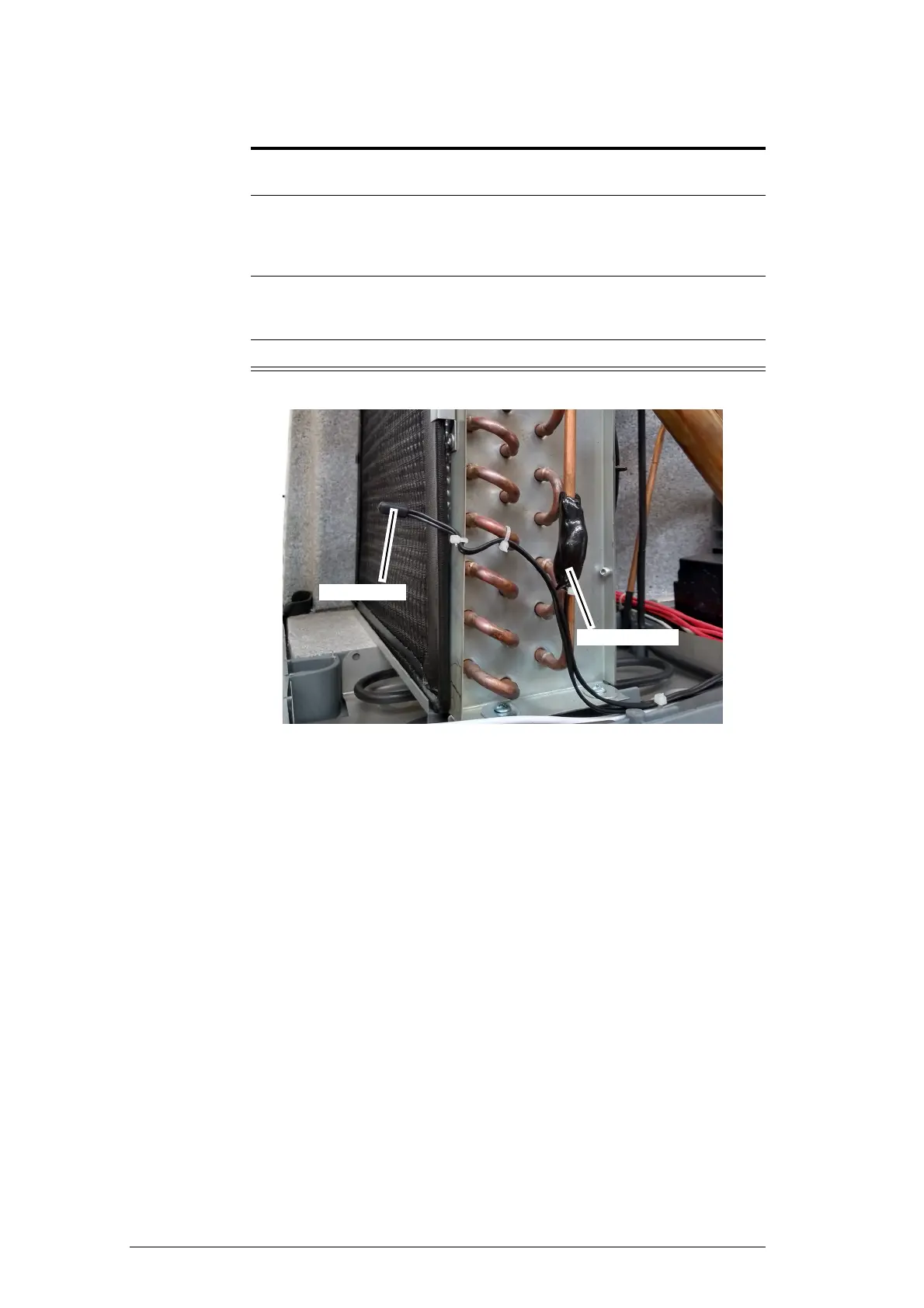

Ambient probe
Condenser probe
