46
Replacement Procedures
Service Manual
SKOPE Reflex Upright Fridge, Freezer, Combo
Condenser
Fan

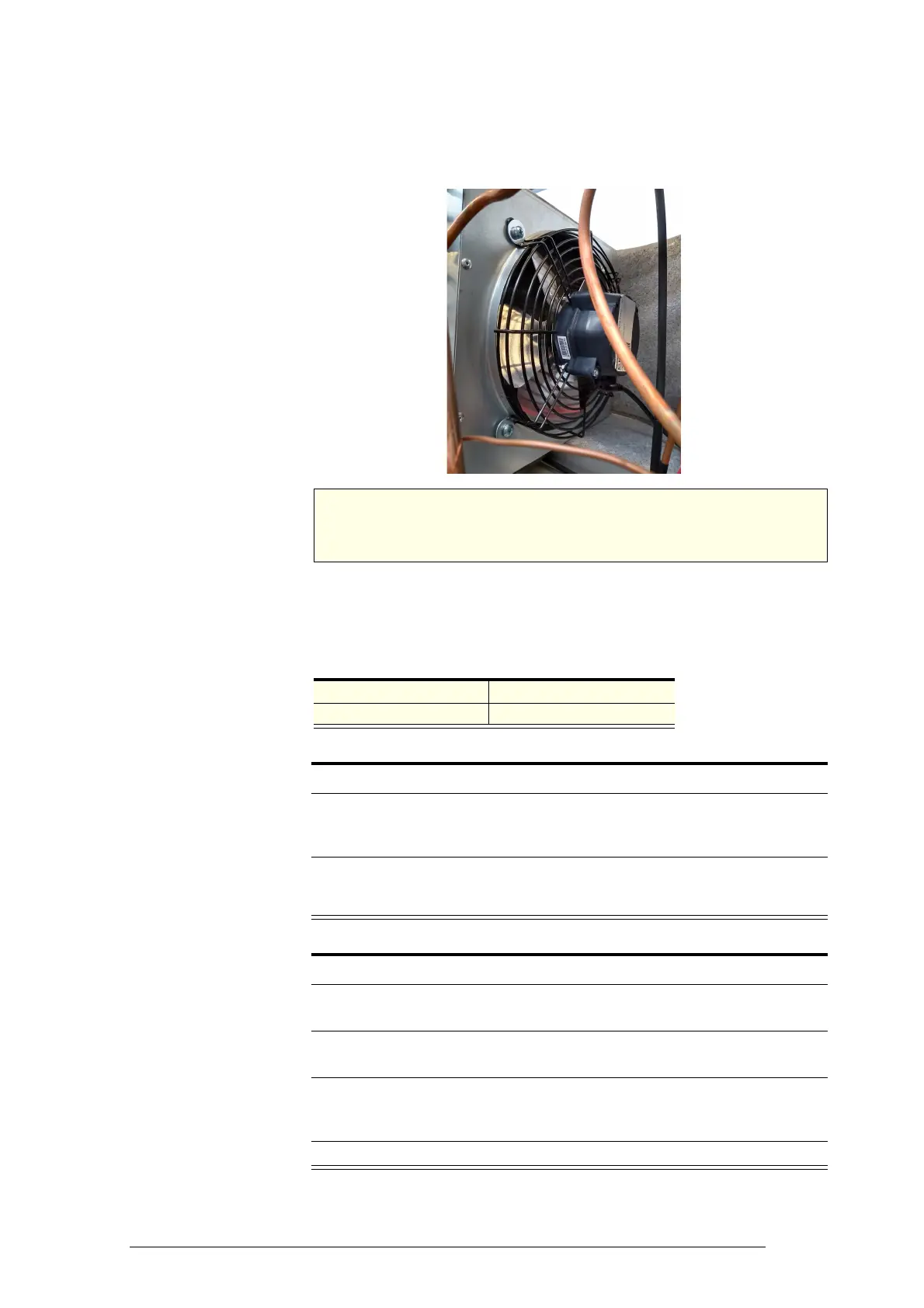

The condenser fan assembly is made up of a fan motor, fan blade and
mounting brackets which can be replaced if necessary.
If the fan stops for any reason, check all connections to ensure no plugs
have come loose.
It is important that the fan blade and/or fan motor is replaced with the same
part to ensure safety, correct alignment, refrigeration performance, and
compliance. Fan blades should be tightened to the recommended torque
settings (shown in the table below).
Fan motor manufacturer recommended torque settings
To access and remove the condenser fan assembly
To replace the fan blade
IMPORTANT
Replace the motor with the same SKOPE OEM part.
DO NOT use alternative parts.
Fan motor manufacturer Torque setting
Wellington Drive 1.4 Nm
1. Remove the cartridge from the cabinet (see page 41).
2. Take note of cable routing (photo recommended), then cut the cable ties
holding the condenser fan motor cable along the cartridge, and free up the
condenser fan motor cable.
3. Unscrew the condenser fan assembly from the condenser coil, and remove
the assembly (fan motor, fan blade, mounting brackets) from the cartridge by
lifting the shroud up and out.
1. Remove the condenser fan assembly (see above).
2. Remove the screw and washer from the centre of the fan blade, and lift the
blade from the motor.
3. Replace new blade and fix with existing 12mm flat washer and serrated
head screw. Tighten the blade to recommended torque setting.
4. Refit the condenser fan assembly to the cartridge. Following the same path
as the original probe, secure the condenser fan motor cable with cable ties
as necessary.
5. Reassemble and test.
