54
Replacement Procedures
Service Manual
SKOPE Reflex Upright Fridge, Freezer, Combo

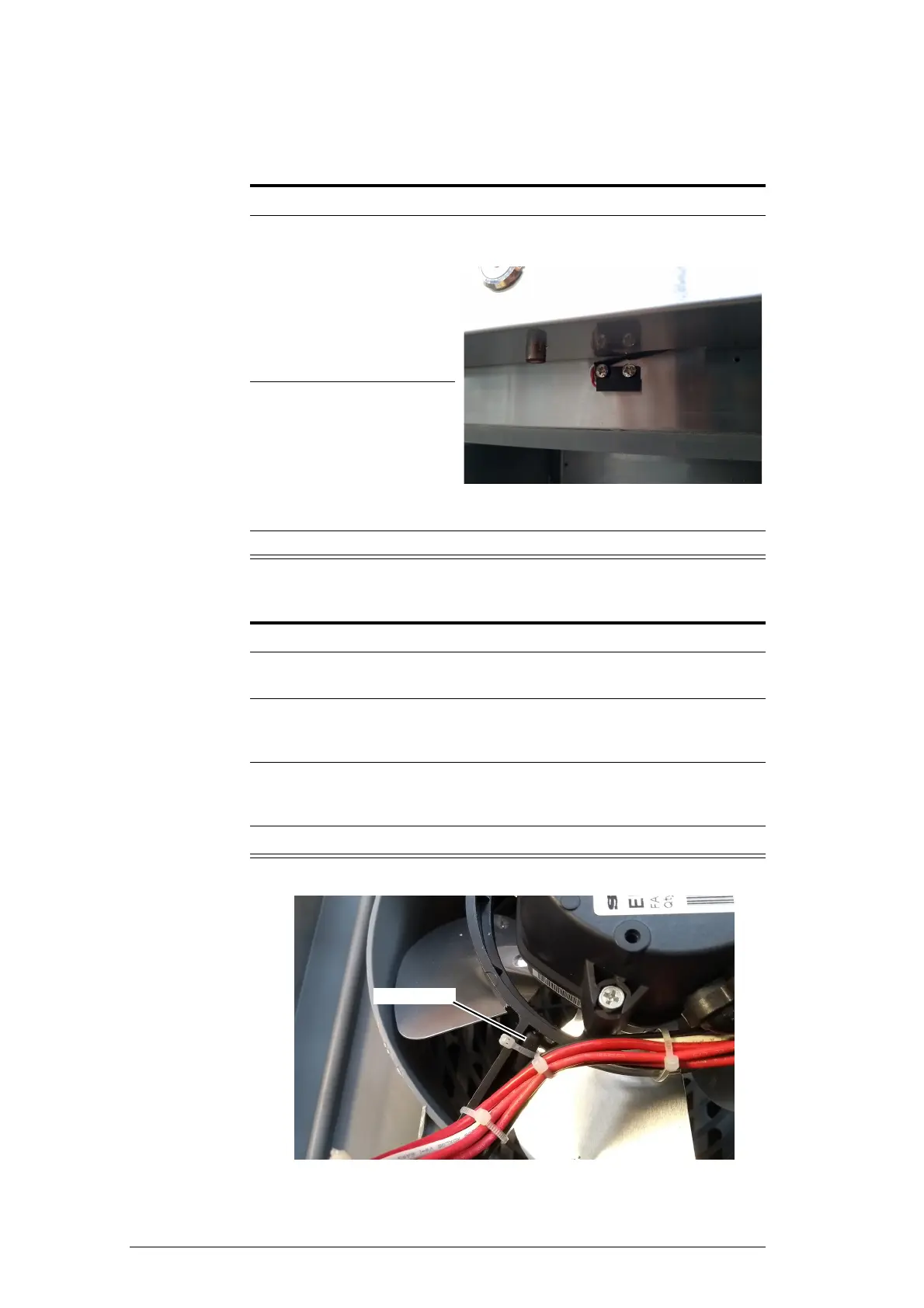

Door Switch The cabinet is fitted with a door switch at the top of each door opening,
which tells the electronic controller when a door is opened. A small magnet
at the top of the door activates the switch.
To replace the door switch
Control Probe The control probe is located in the evaporator fan motor bracket.
To replace the control probe
1. Unplug the cabinet from the power supply.
2. Take note of cable
routing (photo
recommended).
Carefully cut cable ties to
release the cable.
Unscrew the door switch
from the evaporator
assembly, trace back to
its connector and unplug.
3. Replace the door switch.
Following the same path
as the original switch, fit
the new switch with
cable ties as necessary.
Ensure the cable is
securely connected and
cable tied in place.
4. Reconnect the cabinet to the power supply and check for correct operation.
1. Remove the cartridge from the cabinet (see page 41).
2. Gain access to the evaporator fan assembly (see steps 2-3, “To access and
remove the evaporator fan assembly” on page 48).
3. Take note of cable routing (photo recommended), then carefully cut cable
ties to release the probe cable. Detach the probe from the evaporator
assembly, trace back to its connector and unplug.
4. Replace the probe. Following the same path as the original probe, fit the
new probe with cable ties as necessary. Ensure the probe cable is securely
connected and cable tied in place.
5. Reassemble and test for correct operation.
