Replacement Procedures
Service Manual
SKOPE Reflex Upright Fridge, Freezer, Combo
Electronic Controller
The electronic controller is matched to the cabinet, and must be left with the
cabinet when exchanging the cartridge. Replacement spare part cartridges
are not supplied with controller and electrics panel.
Different controller parameter sets are used across various models. Ensure
the controller is set-up with the correct parameter set for the cabinet model.
Controller
Location

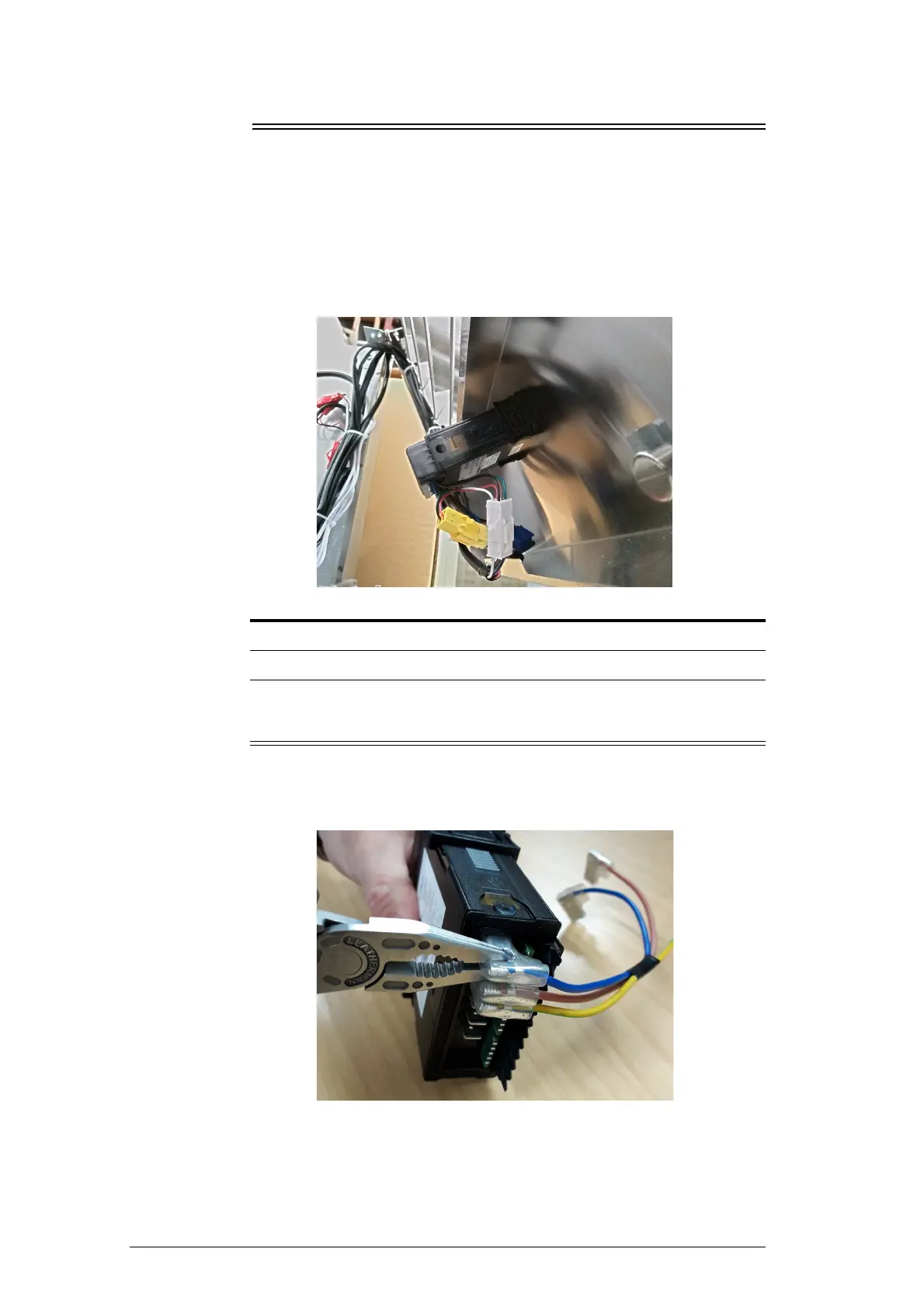

The electronic controller is attached to the front panel in front of the
refrigeration cartridge.
To access and remove the controller
QC Terminals The terminals at the back of the controller are locking QC terminals, which
cannot be pulled off without pressing in the locking tabs.
Use needle nose pliers to unlock and gently remove the terminals.
1. Unplug the cabinet from the power supply.
2.
Swing the front panel up and tape/restrain safely in place.
3. To remove the controller: Unplug the electronic controller from the cartridge.
Press and hold the tabs on each side of the electronic controller to unlock,
and push the controller through the front panel.
