Skope ReFlex Upright - Evaporator Fan

48
Replacement Procedures
Service Manual
SKOPE Reflex Upright Fridge, Freezer, Combo
Evaporator
Fan

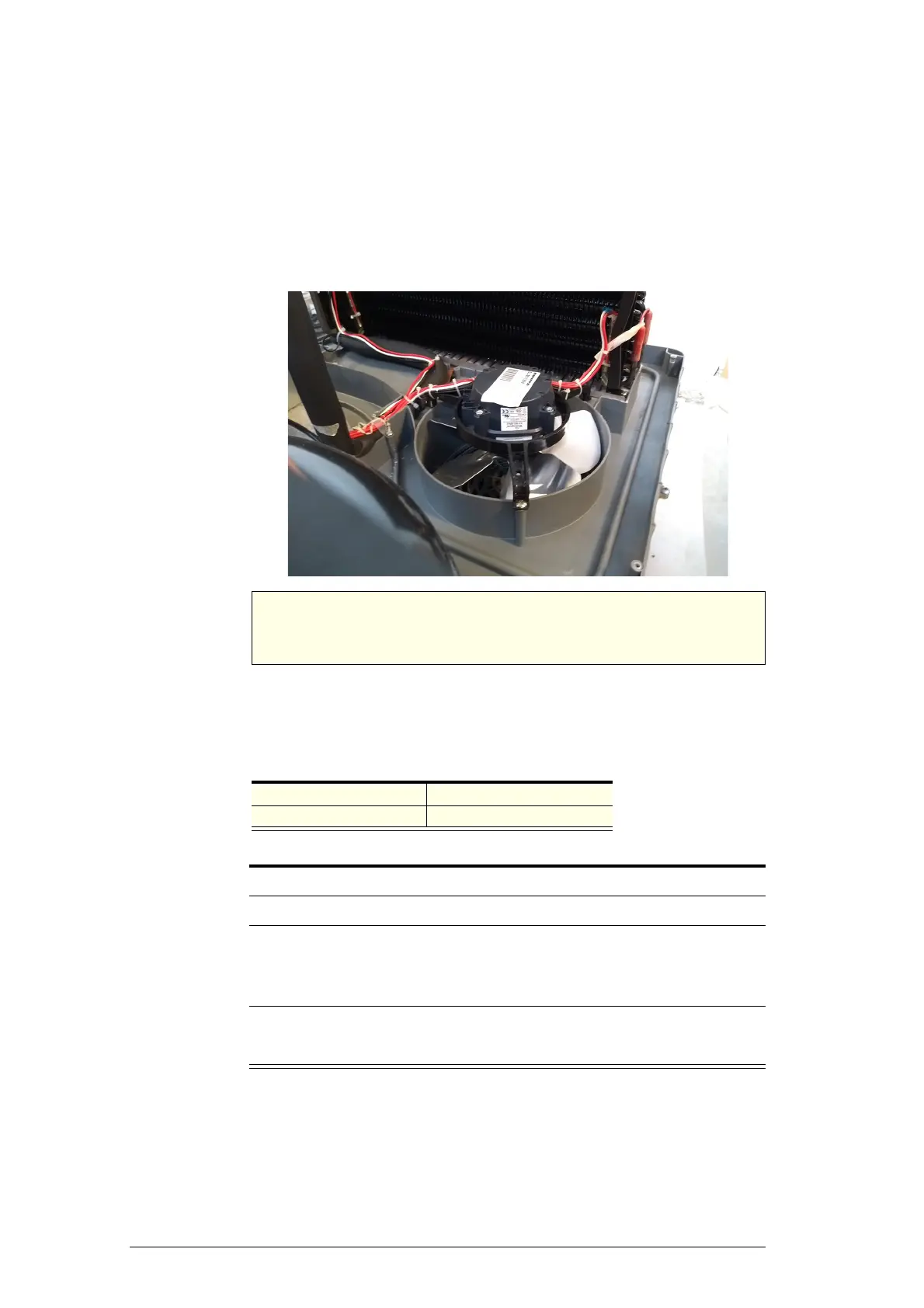

The evaporator fan assembly is made up of a fan motor, fan blade and
mounting brackets which can be replaced if necessary.
Determining if the evaporator fan is actually running during fault finding can
be difficult. Place a separate magnet on the door switch to stop the controller
detecting open door (stopping the evaporator fan), and place a sheet of
paper across the return air port - it will get sucked onto the grille when the
evaporator fan is working.
If the fan stops for any reason, check all connections to ensure no plugs
have come loose.
It is important that the fan blade and/or fan motor is replaced with the same
part to ensure safety, correct alignment, refrigeration performance, and
compliance. Fan blades should be tightened to the recommended torque
settings (shown in the table below).
Fan motor manufacturer recommended torque settings
To access and remove the evaporator fan assembly
IMPORTANT
Replace the motor with the same SKOPE OEM part.
DO NOT use alternative parts.
Fan motor manufacturer Torque setting
Wellington Drive 1.4 Nm
1. Remove the cartridge from the cabinet (see page 41).
2. Unscrew and remove the evaporator box.
3. Take note of cable routing (photo recommended), then cut the cable ties
holding the evaporator fan motor cable and the control probe along the
cartridge, and free up the evaporator fan motor cable and control probe
cable.
4. Unscrew the evaporator fan assembly from the cartridge, and remove the
assembly (fan motor, fan blade, mounting brackets) from the cartridge by
lifting the shroud up and out.
