SKOPE Reflex Upright Fridge, Freezer, Combo
Replacement Procedures
Service Manual
To replace the fan blade
To replace the fan motor (with correct SKOPE spare part only)
1. Remove the evaporator fan assembly (see previous page).
2. Remove the screw and washer from the centre of the fan blade, and lift the
blade from the motor.
3. Replace new blade and fix with existing 12mm flat washer and serrated
head screw. Tighten the blade to recommended torque setting.
4. Refit the evaporator fan assembly to the cartridge. Following the same path
as the original cable, secure the evaporator fan motor cable with cable ties
as necessary.

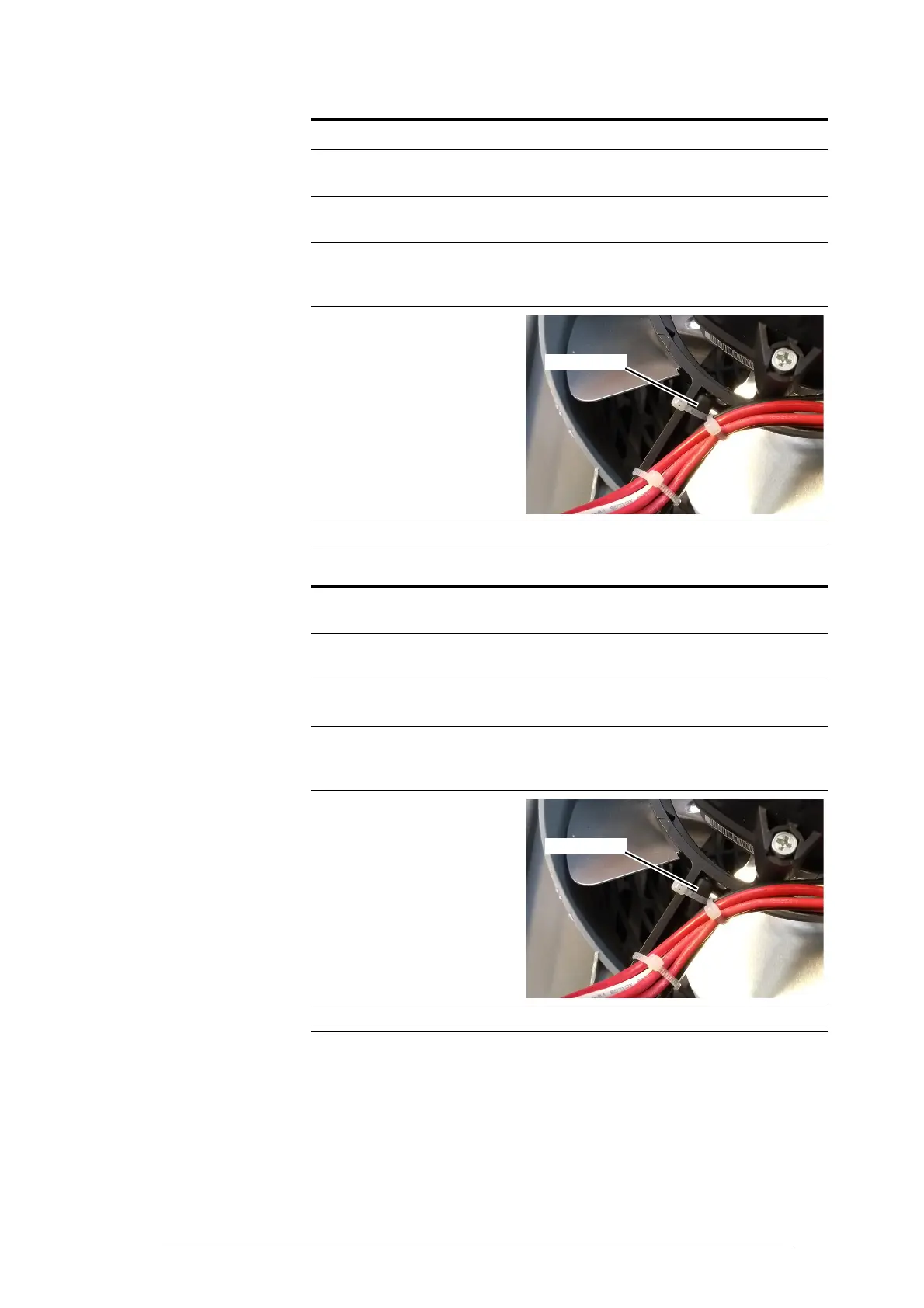

5. Following the same path,
refit the control probe in
the evaporator fan
bracket housing, and
secure with a cable tie.
6. Reassemble and test.
1. Remove the evaporator fan assembly and the fan blade (see previous
page).
2. Detach the fan motor from the fan mounting brackets by removing the four
screws from the mounting bracket.
3. Fit new motor and reattach fan blade with existing 12mm flat washer and
serrated head screw. Tighten the blade to recommended torque setting.
4. Refit the evaporator fan assembly to the cartridge. Following the same path
as the original cable, secure the evaporator fan motor cable with cable ties
as necessary.
5. Following the same path,
refit the control probe in
the evaporator fan
bracket housing, and
secure with a cable tie.
6. Reassemble and test.
