SKOPE Reflex Upright Fridge, Freezer, Combo
Replacement Procedures
Service Manual
Replacing the
Controller
Follow the steps below to replace the controller.
Note: Replacement spare part electronic controllers are not supplied with
the parameter set loaded. This must be loaded via the SCS Connect Field
app after replacing the controller. Internet access may be required.
To replace the controller
1. Disconnect the cabinet from the power supply and access the electronic
controller (see “Controller Location” on page 52).
2. Disconnect the terminals from the back of the controller.

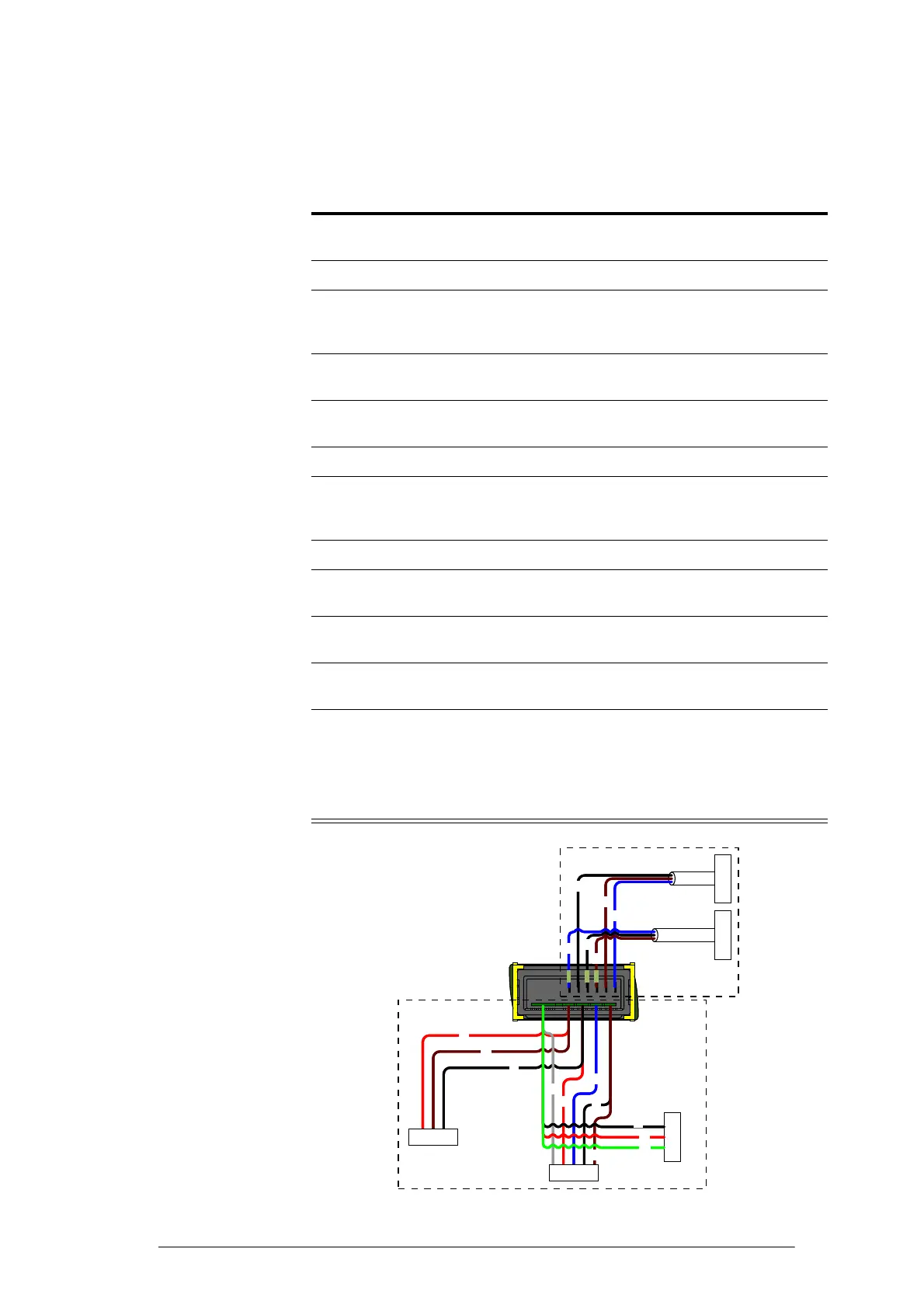

3. Fit the new replacement controller, and connect up the terminals at the back
of the controller (see image below). Connect low voltage terminals before
high voltage terminals.
4. Reassemble, perform electrical safety test as per standard procedure, and
reconnect to the power supply.
5. Use a mobile device to connect to the controller with the SCS Connect Field
app (see “SCS Connect Field App and Track App” on page 11).
6. Navigate to the LOAD PARAMETER FILE menu.
7. Select the appropriate parameter file from LOCAL. If not available in
LOCAL, search for the parameter file in SERVER (internet access required),
and download to LOCAL.
8. Confirm correct file and WRITE TO SCS.
9. After WRITE TO SCS is complete, select MENU DISCONNECT to save
parameter set on SCS controller.
10. Power cycle the controller, reconnect via SCS Connect Field app and check
that correct parameter set has been applied.
11. Navigate to the SCS SETUP menu and select the model (as per the cabinet
rating label).
12. Set up controller and cabinet links as required:
Corporate
The service tech must link to the controller to the cabinet serial number in the
SCS Connect Field app.
General Market
The owner must set up via SKOPE-connect (if in use).
PlugPlug
BK
BU
BN
BK
BU
BN
BK
BN
BU
RD
BK
RD
BN
Socket
WH
Plug
BK
RD
GN
Plug
UW0300008
UW0100029
UW0100030
PlugPlug
BK
BU
BN
BK
BU
BN
BK
BN
BU
RD
BK
RD
BN
Socket
WH
Plug
BK
RD
GN
Plug
Low voltage
High voltage
To Next Page
