SKOPE Reflex Upright Fridge, Freezer, Combo
Replacement Procedures
Service Manual
Electrics Box The electrics box is fitted to the side of the cabinet top, beside the
refrigeration cartridge. Combo models are equipped with two electrics
boxes: one for each cartridge.
The electrics box is matched to the cabinet, and must be left with the cabinet
when exchanging the cartridge. Replacement spare part cartridges are not
supplied with an electrics box.

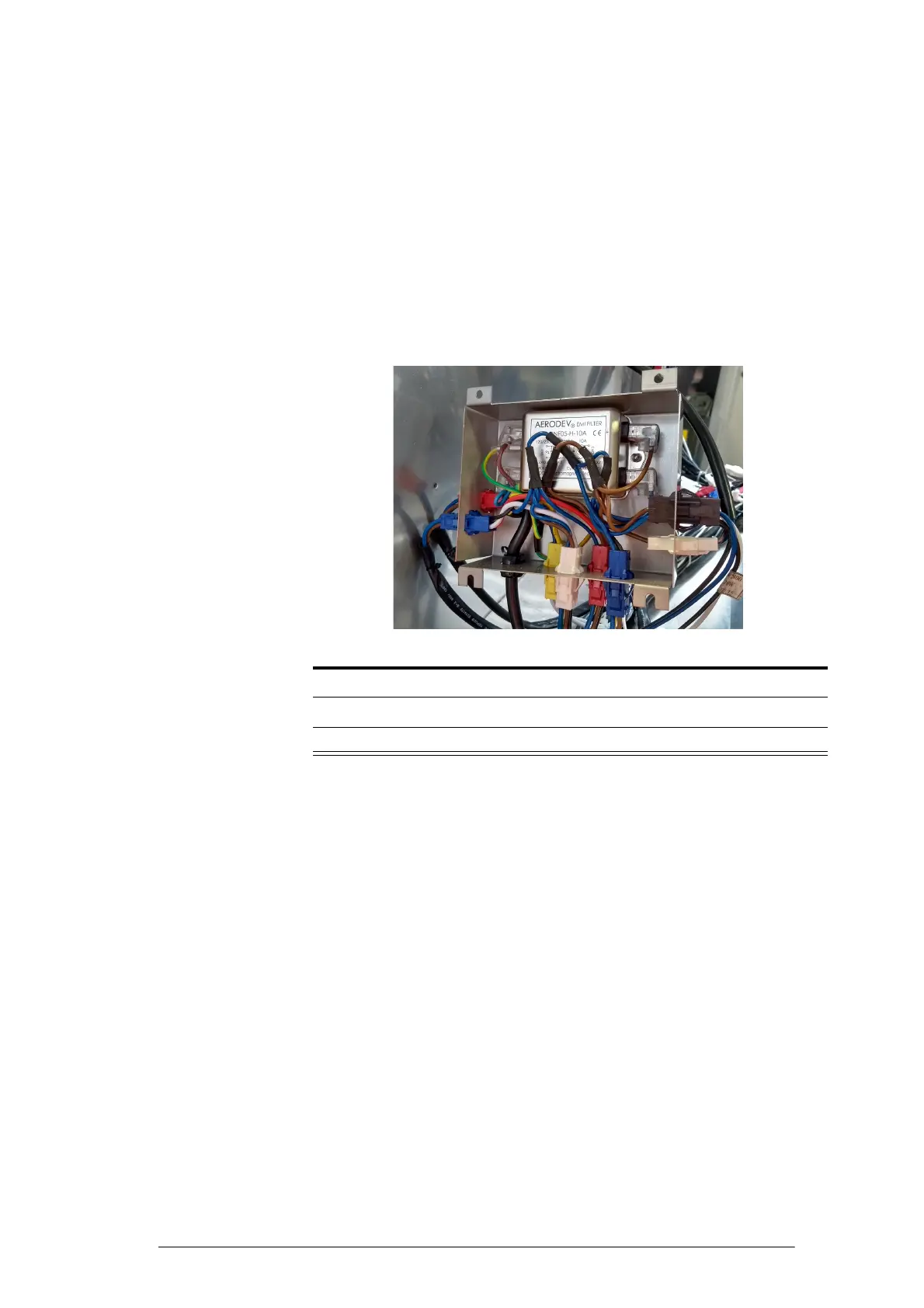

The electrics box assembly contains the EMI filter and panel mount socket
connectors for the cartridge and cabinet. Note: Connector colour may vary
depending on date of manufacture.
Due to the confined space within the electrics box, plugs may come loose as
a result of movement and vibrations during servicing. Take care when
refitting to ensure all plugs are securely attached to the correct sockets.
To remove the cartridge electrics panel and open the electrics box
1. Unplug the cabinet from the power supply.
2.
Swing the front panel up and tape/restrain safely in place.
3. To open the box, unscrew the four screws and lift the box off the panel.
