Replacement Procedures
Service Manual
SKOPE Reflex Upright Fridge, Freezer, Combo
Door Hinge
Reversal
Follow the steps below to reverse the door hinging on ReFlex Upright 1-
Door fridge and freezer.
Parts Required
The following kit is required to complete the procedure:
Tools Required
The following tools are required to complete the procedure:
Procedure
Description SKOPE Part No. Quantity
LH hinge kit KN-HIN12003 1
Screwdriver - Phillips
head
Allen key - 3mm Drill bit - 10mm
Side cutters Allen key - 5mm -
Socket - M6 Drill -
1. Ensure the cabinet is
unplugged from the power
supply.
2. Unscrew and swing the top
panel up and tape/restrain
safely in place.
3. Unscrew the top and bottom
hinge and remove the door
from cabinet (4 × M6 socket
head screws).
4. Remove the plastic bungs
from the LH hinge screw
holes on the LH side of the
cabinet, and fit the bungs to
the RH hinge screw holes on
the RH side of the cabinet.
Continued over page

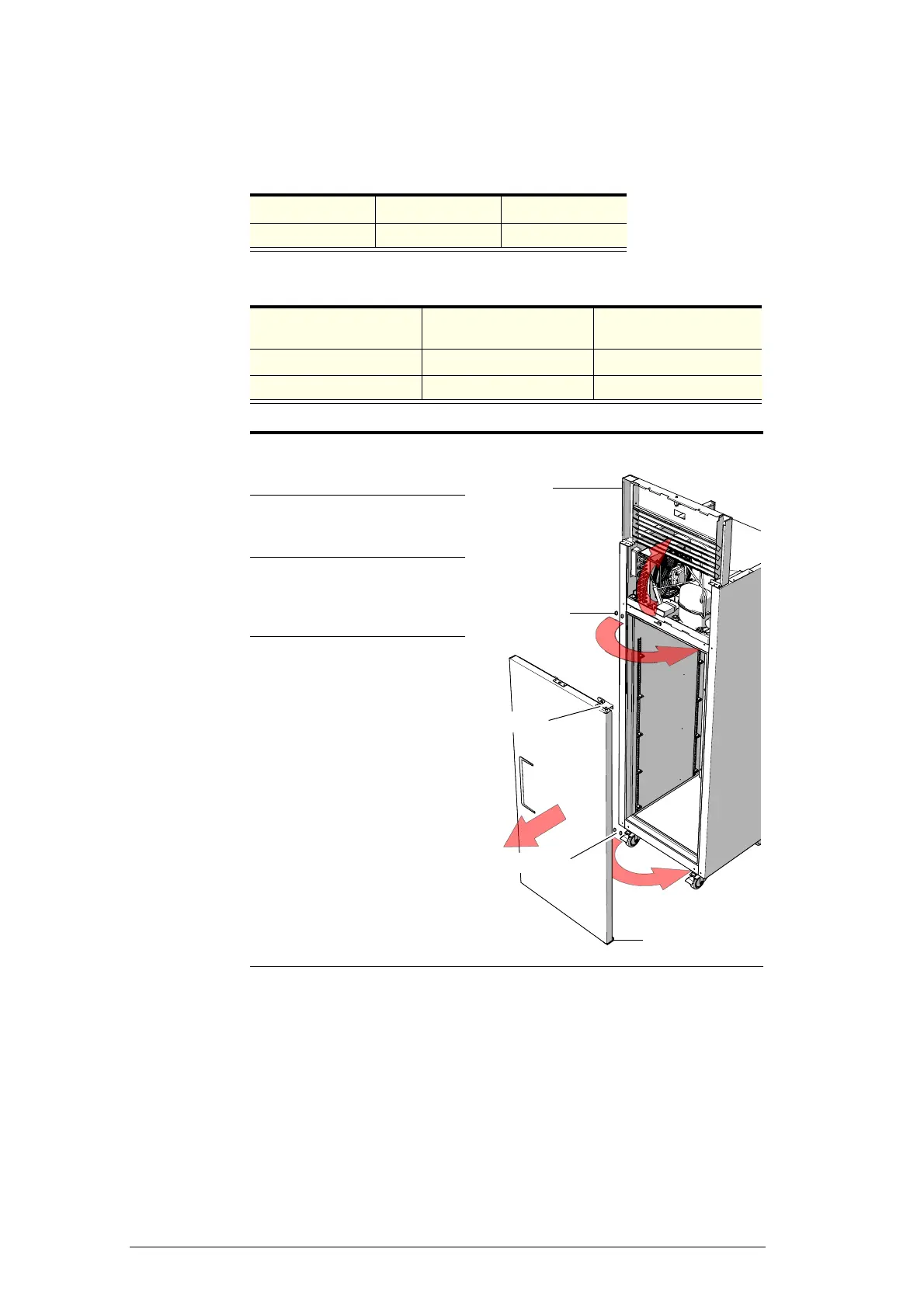

Top panel
Bottom hinge
Plastic bungs
Top hinge
Plastic bungs
