Replacement Procedures
Service Manual
SKOPE Reflex Upright Fridge, Freezer, Combo
Refrigeration
Cartridge
Assembly
The refrigeration cartridge is a top mounted, electronically controlled
removable cartridge.
The electronic controller and electrics panel (including light power supply) is
matched to the cabinet, and must be left with the cabinet when exchanging
the cartridge. Replacement spare part cartridges are not supplied with
controller and electrics panel.
For servicing or transportation, the refrigeration cartridge unplugs and lifts
off the cabinet. Some minor servicing can be performed without removing
the refrigeration cartridge.
The model and serial number are both printed on the cartridge rating/serial
number label attached to the cartridge.
Various fridge and freezer cartridges are used across different models, and
cartridge spare parts vary between cartridges. Refrigeration system pipe
routing varies between different model releases.
Hydrocarbon cartridges
Hydrocarbon cartridges must only be used on a SKOPE Hydrocarbon
compliant cabinet. Refer to the cabinet rating label to determine if the
cabinet is suitable for use with a hydrocarbon cartridge. The rating label
MUST state refrigerant as R290. If the label states a different refrigerant, or
does NOT state a refrigerant, it is NOT suitable for a hydrocarbon cartridge.
For safety and compliance, only SKOPE supplied parts specifically for this
appliance may be used for repairs. Other parts may appear suitable, but
may not be approved or safe for use in an appliance with hydrocarbon
refrigerant.
Defrost Cycle Electric defrosting is used for both fridges and freezers. Defrost parameters
vary depending on product type, and can be reviewed in the SCS Connect
Field app.

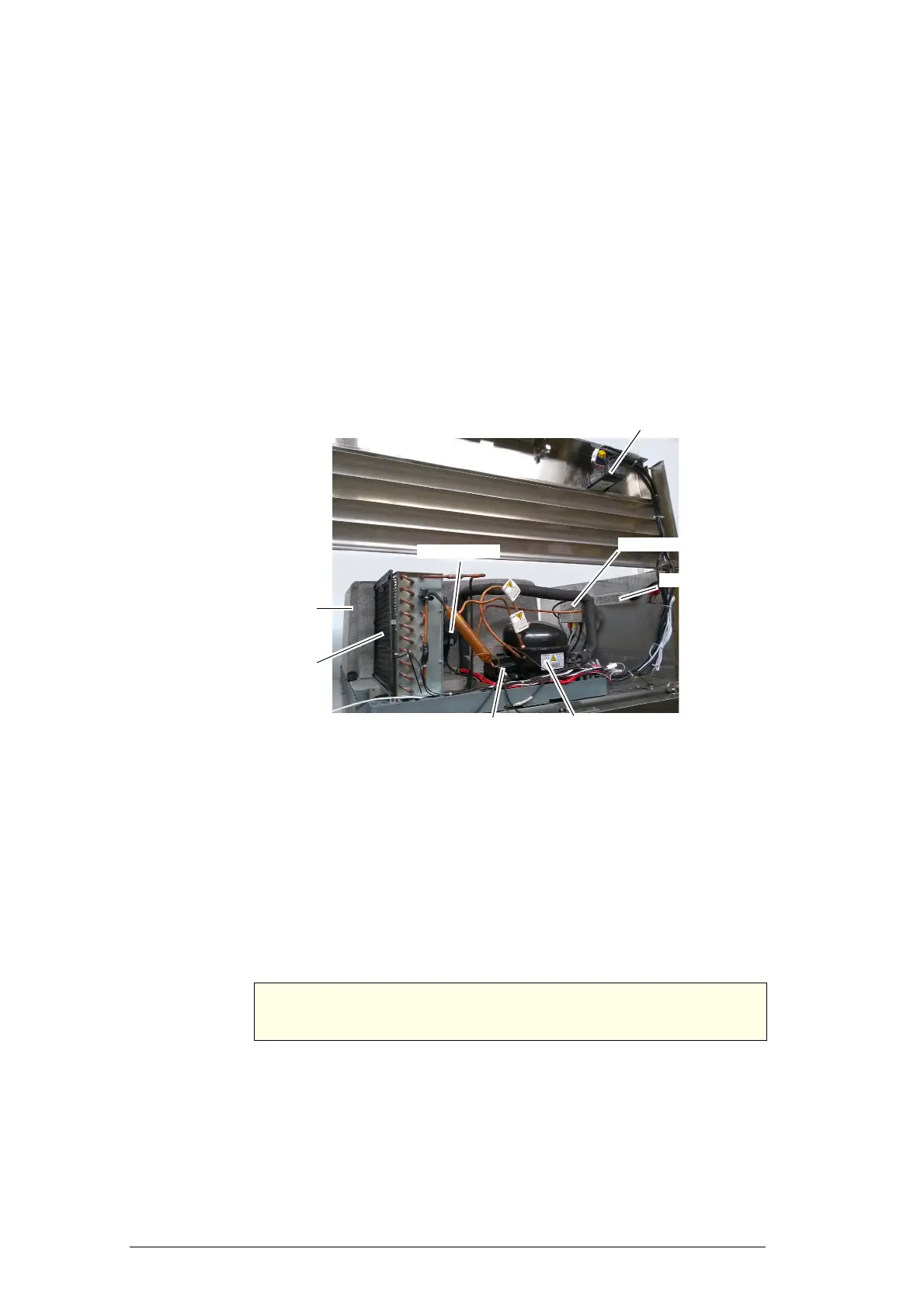

Compressor electrics
Evaporator tub
Compressor
Condenser filter
and coil
Electronic controller
Condenser fan
Electrics box
Light power supply
WARNING
The hydrocarbon cartridge must only be used on an hydrocarbon
compliant cabinet.
