SKOPE Reflex Upright Fridge, Freezer, Combo
Replacement Procedures
Service Manual

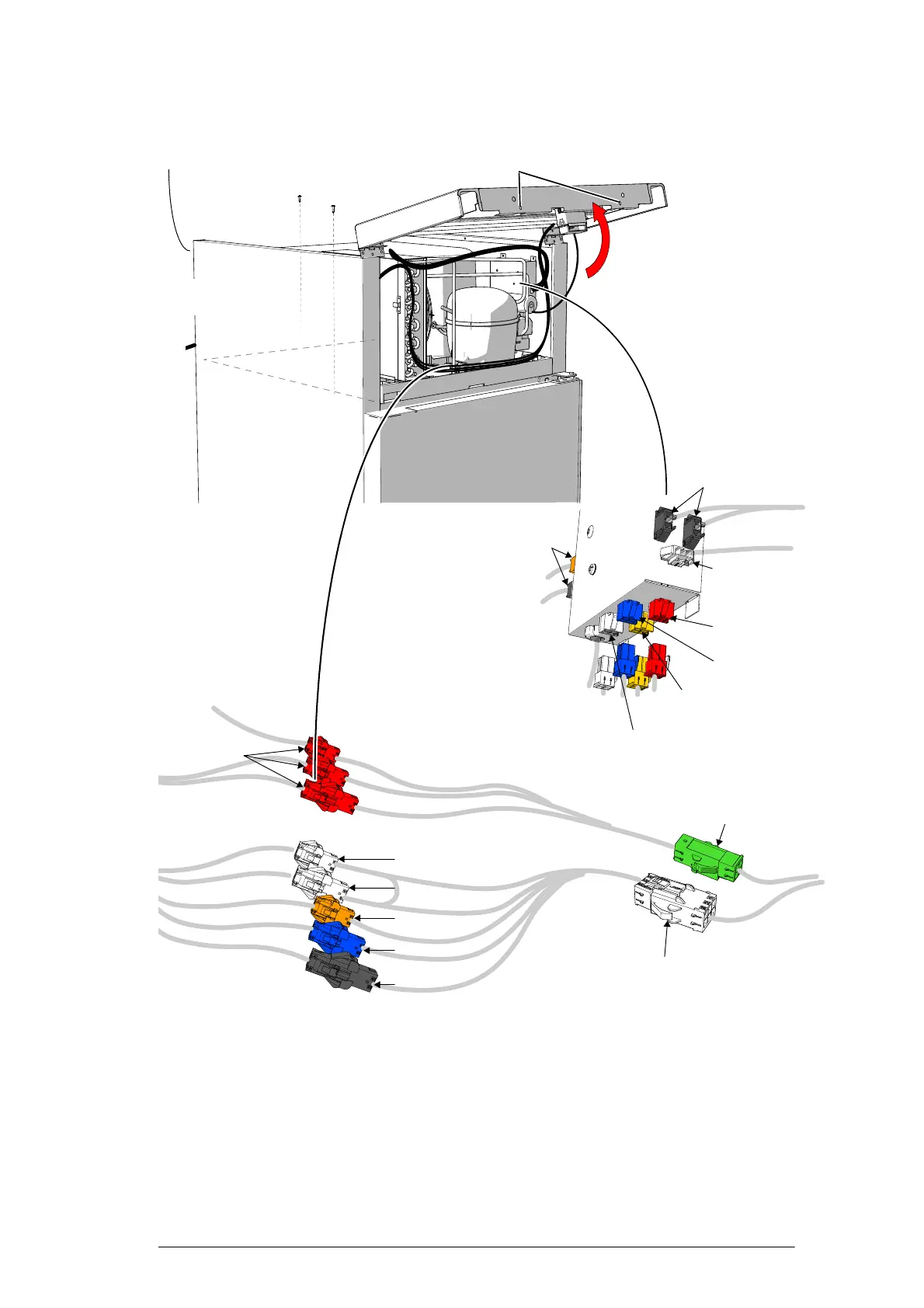

Lights - Red
UNPLUG
Door switch - White
Ambient probe - White
Condenser probe - Orange
Evaporator probe - Blue
Control probe - Black
UNPLUG
Controller to loom - White
To controller
UNPLUG
Compressor - Blue
Controller - Black and Orange
UNPLUG
Defrost element - Yellow
UNPLUG
Evaporator fan - White
UNPLUG
Condenser fan - Red
Cabinet elements - Black
Lights - White
To controller
Controller to Lights- Green
6. Rear grille
8. Cartridge screws
1. Power cord
and cable tie
2. Front panel screws
5. Electrics panel and loom
electrical connections.
Unplug as pictured.
Manufactured Feb. 2020 onwards
