Skydio X2 Color/Thermal - Operator Manual © 2022 Skydio, Inc. All rights reserved.
4
7
2
5 86 9
12
11
10
1
3
14
16
1817
13 15
22
21
20
19

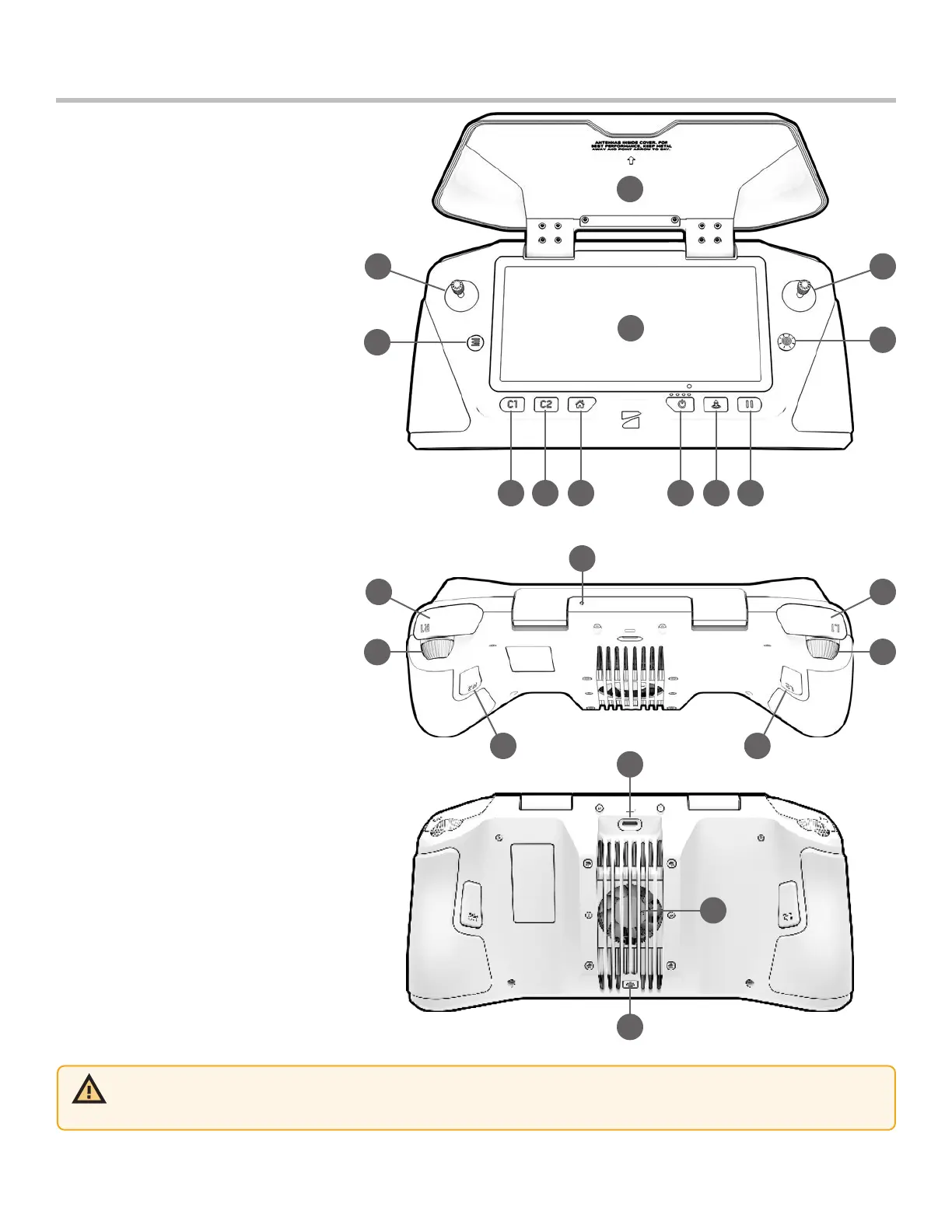

Overview
Skydio Enterprise Controller
1. Left joystick
2. Right joystick
3. Menu/back button
4. Directional pad (D-pad)
5. C1 Button - toggle Obstacle Avoidance
6. C2 Button - toggle lights
7. Return to Home (RTH) button
8. Power button
9. Launch/Land button
10. Pause button
11. Controller clamshell embedded antennas
12. User interface screen
13. R1 button - shutter/record
14. Right wheel - zoom
15. L1 button - boost
16. Left wheel - gimbal tilt
17. R2 button - Programmable*
toggle map (default)
18. L2 button - Programmable*
color to thermal camera (default)
19. Reset button
20. USB-C port
21. Cooling fan
22. Neck strap/tripod (¼-20 mount)
CAUTION: Skydio Enterprise Controller is not weatherproof. Do not operate in any precipitation, including rain, fog,
snow, or similar environments. Do not rest the controller in sand, dirt or on similar terrain where particles can get
trapped in the fan. Do not use batteries if the magnets or connector pins are damaged.
* To change L2 and R2 Select Device Settings
> Controller > Custom Functions:
• Toggle Map
• Toggle thermal or color camera
• Select close, minimal, disabled Obstacle
Avoidance
• No Function
• Restore Defaults
To Next Page
