Section 8 – Labels Models SJ643 TH & SJ843 TH
Operator’s Cab Controls (continued)
5
Description Label Pictorial
5

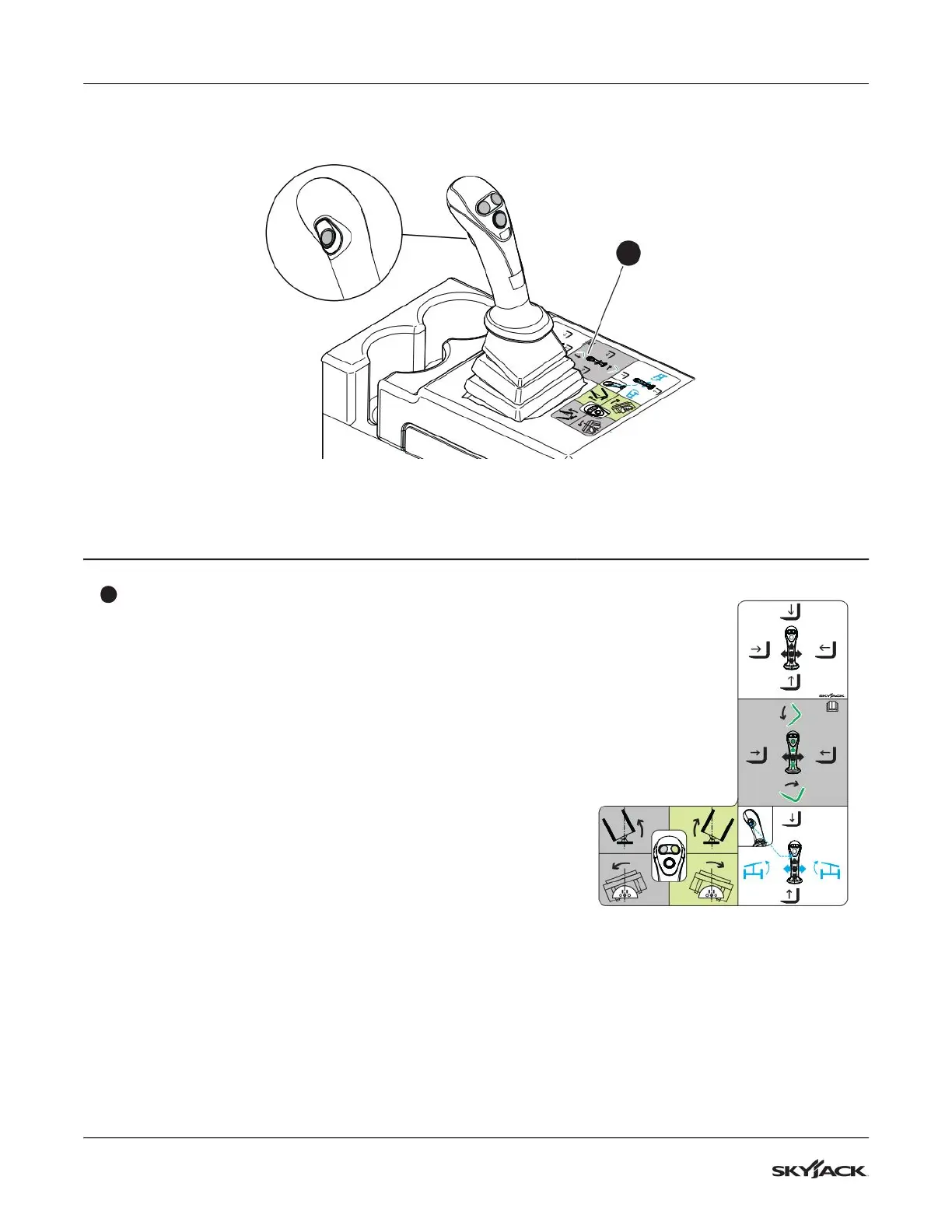

Standard Multi-function Joystick
The multi-function single controls boom operation, frame
leveling, fork tilt, and auxiliary functions.
▪
Move joystick forward or backward to raise or lower the
boom.
▪
Move joystick right or left to extend or retract the boom.
▪
Press and hold middle button and move joystick forward to
tilt attachment forward.
▪
Press and hold middle button and move joystick rearward
to tilt attachment backward.
▪
Press and hold frame level enable switch and move joystick
to the left to level the frame to the left.
▪
Press and hold frame level enable switch and move joystick
to the right to level the frame to the right.
▪
Use optional attachment function switches to control the
auxiliary functions of optional attachments.
