SJ643 TH & SJ843 TH 216201ADA
93
Models SJ643 TH & SJ843 TH Section 8 – Labels
Operator’s Cab Controls (continued)
6
Description Label Pictorial
6

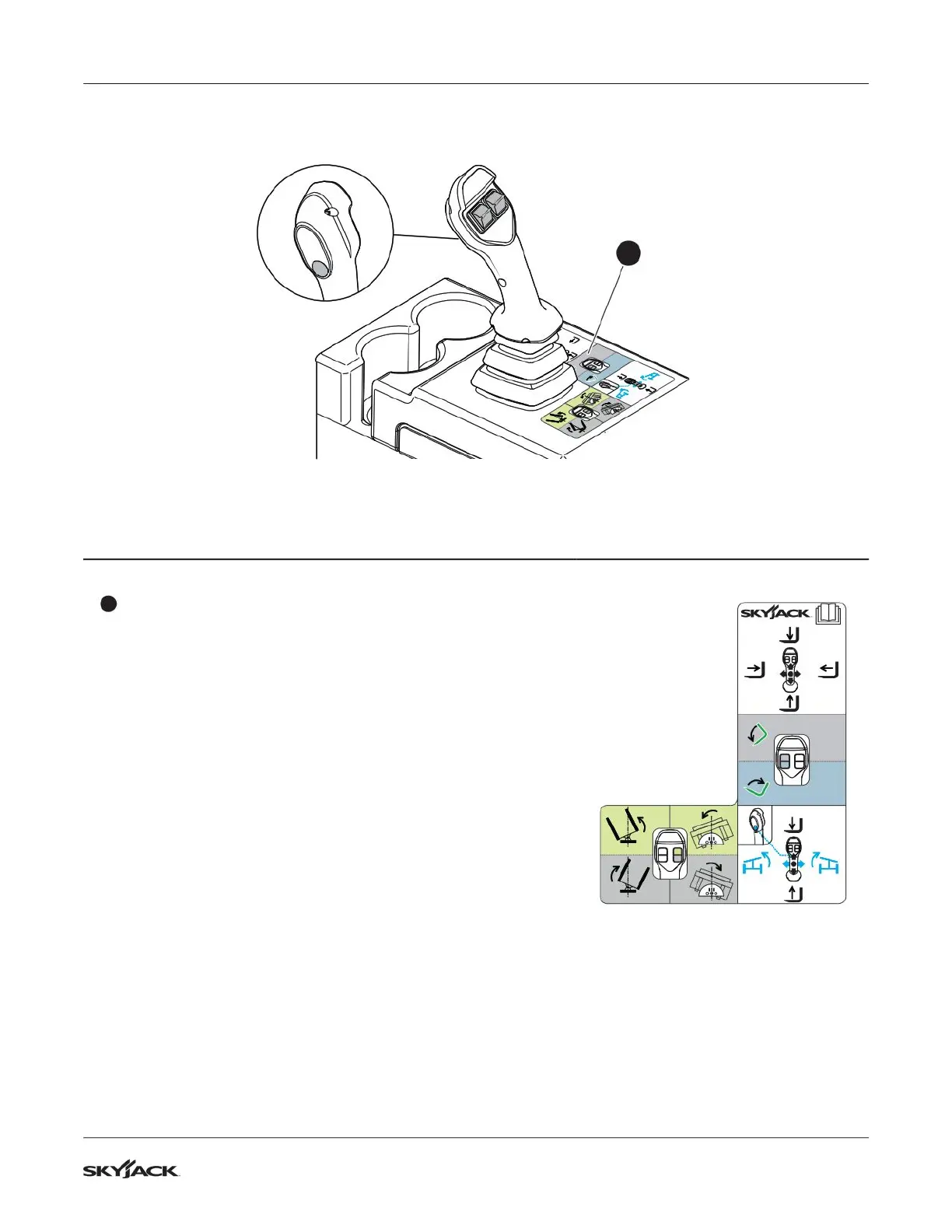

Premium Multi-function Joystick (If Equipped)
The multi-function single controls boom operation, frame
leveling, fork tilt, and auxiliary functions.
▪
Move joystick forward or backward to raise or lower the
boom.
▪
Move joystick right or left to extend or retract the boom.
▪
Hold left switch up to tilt attachment forward.
▪
Hold left switch down to tilt attachment backward.
▪
Press and hold frame level enable switch and move joystick
to the left to level the frame to the left.
▪
Press and hold frame level enable switch and move joystick
to the right to level the frame to the right.
▪
Hold right switch up or down to control the auxiliary
functions of optional attachments. Refer to Section 3.6 for
details for each optional attachment.
172648AAZZ
