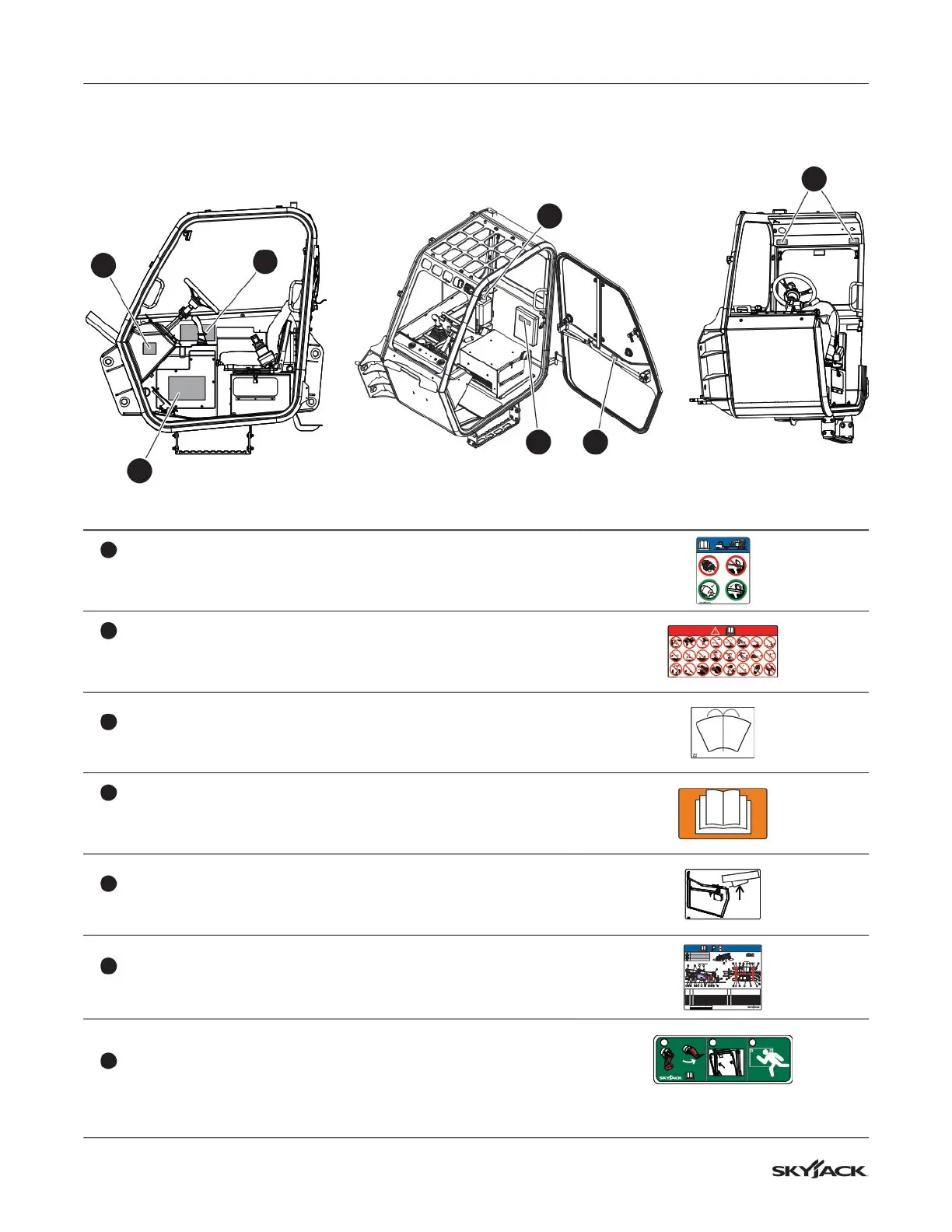

Section 8 – Labels Models SJ643 TH & SJ843 TH
Operator’s Cab
7
8
12
1110
9
13
Description Label Pictorial
7
Transportation Reminder
Ensure engine air cleaner, and exhaust are sealed during
transportation.
8
Hazard Identication
Read and understand outlined risks associated with this
telehandler prior to operation.
9
Windshield Washer Fluid Container
Windshield Washer uid
10
Manual Storage Box
Indicates location of operating manual and other important
documentation.
11
Open Door (If Equipped)
Squeeze to open cab door.
12
Daily & Weekly Maintenance Chart
Grease points and lubrication intervals chart
10h / 50h
250h
(a)
1,000h
(b)
10h
195426ADA
1
68
8
8
8
7
12 11
13
14
14
15
18
15
13 13
17
13
1313 154
17
16
18
5
18
1012
11
2
14
19
9
3
15
14
Premium Multi-purpose ATF Oil
442 ft.-lbs / 600 N·m
EP2 Grease
Ultra Low Sulfur Diesel Only
Multi-purpose Premium Engine Oil
1 Check engine oil level. Add to “full”.
10 hrs.
or
Daily
50 hrs.
or
Weekly
2 Check engine coolant level. Add as required.
3 Check transmission oil level with engine running. Add to “full”.
4 Check air cleaner indicator. Squeeze vaccuator valve to clean.
5 Check fuel level and DEF level
(c)
(If equipped). Add as required.
15 Grease drive shaft U-joints and slip joints. (6 fittings).
10 Check wheel lugs condition.
17 Grease frame level pivot bushings. (2 fittings).
18 Grease boom pivot and cylinders. (11 fittings).
19 Grease axle lock cylinder. (2 fittings).
11 Check for oil leaks around axle differential.
12 Check axle planetary wheel ends oil level. Add as required. (4 plugs).
13 Grease axle pivot bearings. (4 fittings).
14 Grease axle king pins. (8 fittings).
16 Grease fork pins.
6 Check hydraulic oil level. Fill to sight gauge.
7 Check fuel/water separator.
8 Check tire condition.
9 Check windshield washer fluid level. Add as required.
Engine-Side View
Top View
15
Notes:
(c) Telehandlers equipped with Diesel Exhaust Fluid only.
Filter Maintenance Kit 6 43/843 TH
1044 TH/THS
1056 TH/THS
(a) 250 h 195958
(b) 1000 h 195959
196925
196926
13
Emergency Exit Procedure
204421AAZZ
TM
1 2 3
