General Maintenance
201
Model MMV Rev. 10/11
Battery Equalizer Fuses (Under Engine Cover)
There are two fuses (3) located on the bottom side of the equalizer (4).
These two fuses are 125 amp fuses and are located on the 12V and 24V
positive terminals of the equalizer. These fuses protect the 12V and 24V
circuits of the equalizer. You will require a small telescoping mirror to check
these two fuses.
If a 125 amp fuse blows, the fuse along with the mounting hardware will
have to be replaced as a kit.
Replace a 125 amp fuse as follows:
IMPORTANT! When removing the cable or cables from the fuse or fuses be
sure to insulate each cable away from any metal objects to prevent shorting
of the electrical system.
1. Remove the blown fuse and associated hardware. Discard all
items.

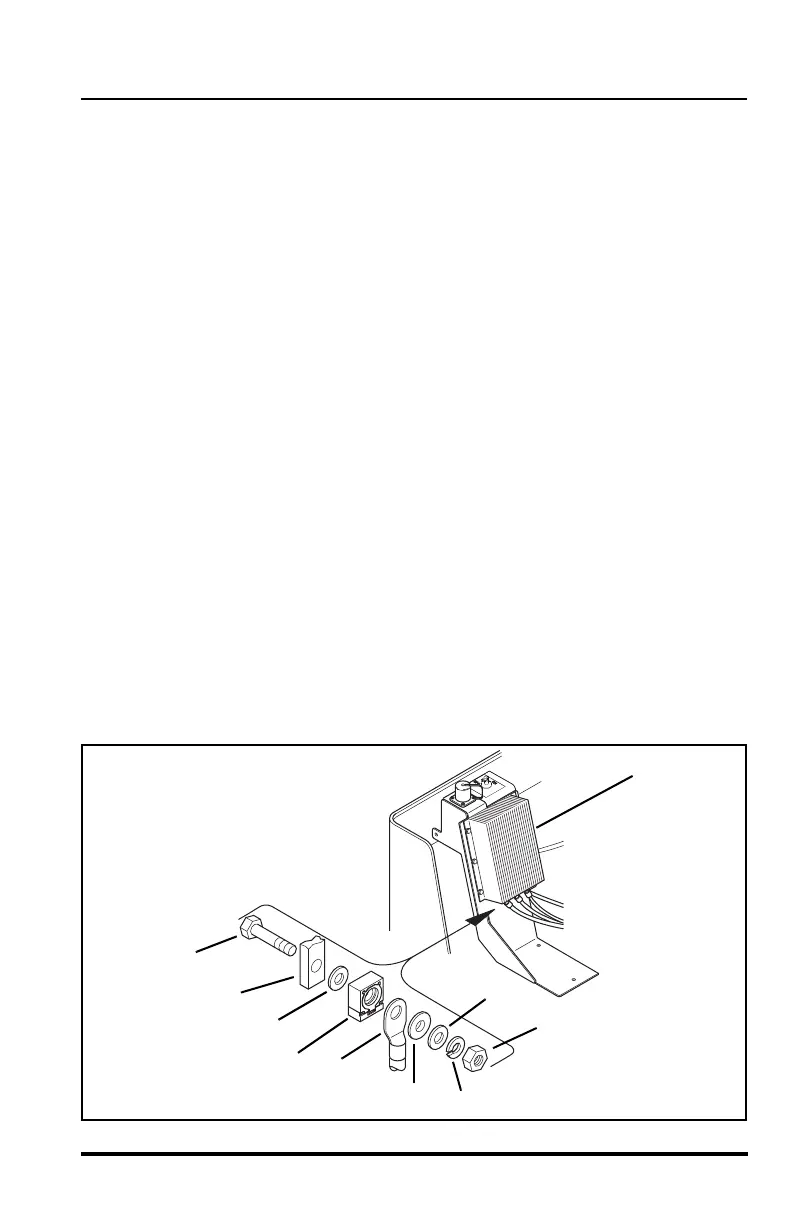

2. Insert the new capscrew (5) through the tab (6) on the equalizer (4).
3. Place a flat washer (7) and new fuse (3) onto the capscrew. Posi-
tion fuse as required to best see the clear window.
4. Place the positive cable (8) onto the capscrew.
5. Place the nylon shoulder washer (9) onto the capscrew and place
against the positive cable with the hub toward the cable.
6. Secure in place with a flat washer (10), lockwasher (11) and hex
nut (12). Torque the hex nut to a maximum of 100 lbs-in (11 Nm).
To Next Page
