Skytrak MMV - External Transport;Slinging

General Maintenance
235
Model MMV Rev. 10/11
External Transport/Slinging

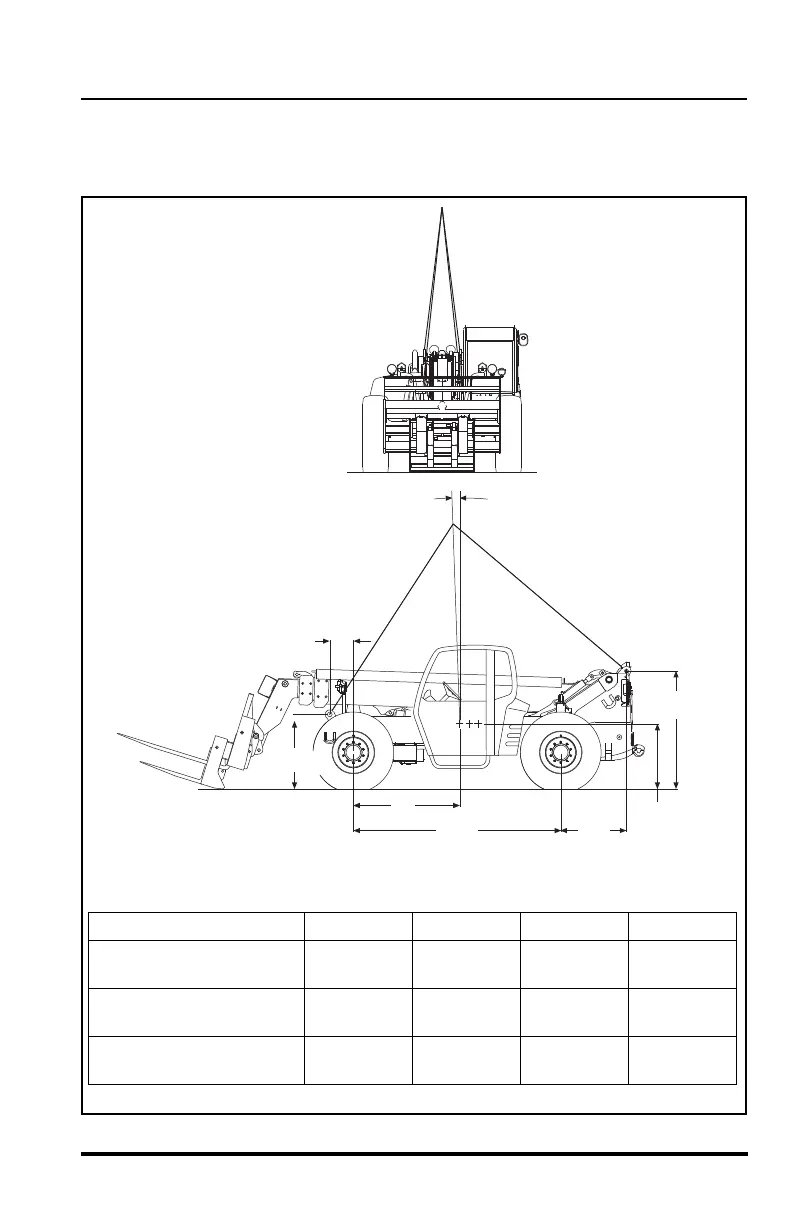

Refer to the following diagram.
CG
DISTANCE
TILT ANGLE
15.5"
(394 mm)
47.3"
(1201 mm)
41.5"
(1054 mm)
74.8"
(1900 mm)
131.0"
(3327 mm)
41.0"
(1041 mm)
Carriages CG Distance Tilt Angle Weight
Both Carriages
67.25"
(1.708 mm)
2.0°
30,500 lbs
(13.835 Kg)
CH-53
Not Allowed
(7 K)
48" Load Center Carriage
73.25"
(1.860 mm)
5.0°
29,300 lbs
(13.290 Kg)
CH-53
Not Allowed
(11 K)
24" Load Center Carriage
78.75"
(2.000 mm)
7.0°
28,100 lbs
(12.746 Kg)
CH-53
Approved
OM1342
