Skytrak MMV - Rear Window Latch; Rifle Mount

46
Model MMV Rev. 10/11
Operation

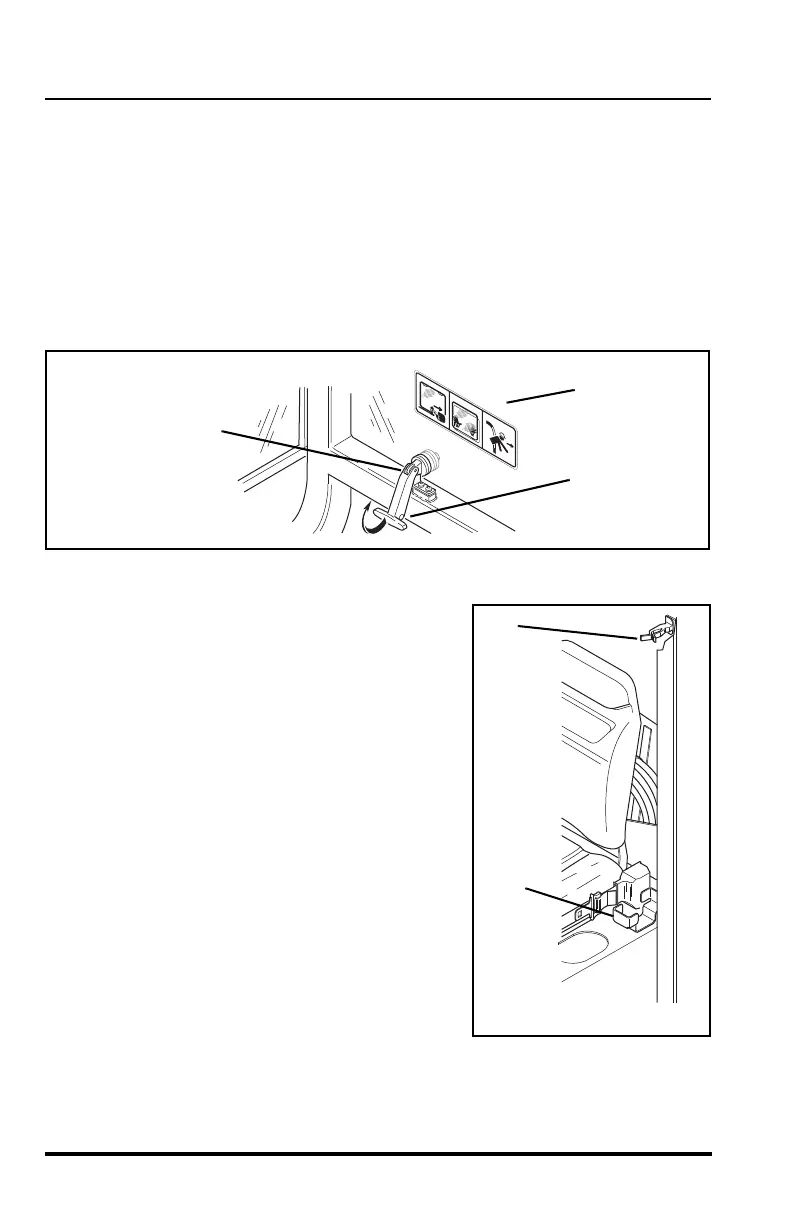

Rear Window Latch
The rear window (1) can be partially opened and secured in place with the
rear window latch. To open the window, grab the latch handle (2) and pull up
and then push the window outward. To close and secure the window, pull
the latch handle up and then inward.
NOTE: In an emergency situation, the operator can exit through the rear
window opening by removing the latch pin (3) on the window latch. The win-
dow is then free to swing open.
Rifle Mount
Stow rifle in stowage mount as follows:
• Position butt of M-16 rifle in the lower
mount (4) with trigger guard forward.
• Position barrel of M-16 rifle in upper
mount (5).
• Check that M-16 rifle is held tightly.
Remove rifle from stowage mount as follows:
• Pull the handle of the upper mount (5)
to the side.
• Remove the barrel of M-16 rifle from
the upper mount.
• Remove the butt of M-16 rifle from the
lower mount (4).
