Neutral Lock Lever

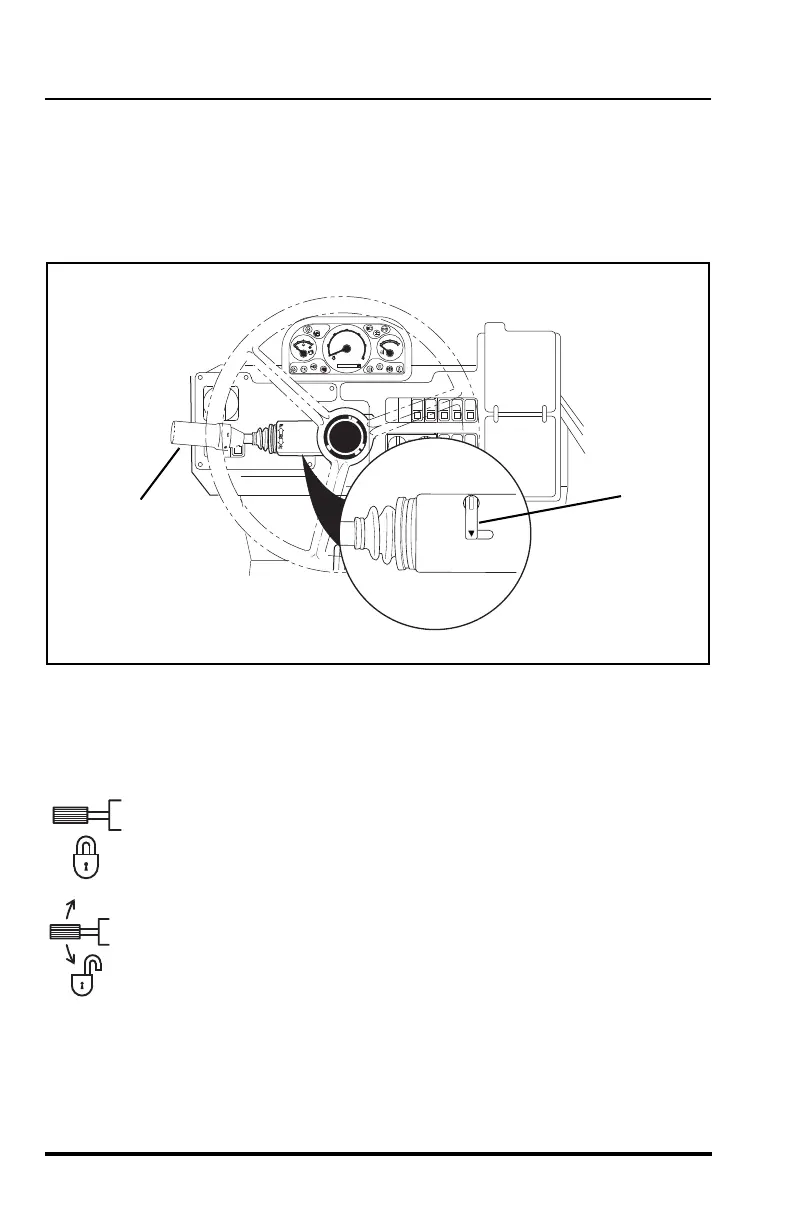

The Travel Select Lever (1) is equipped with a neutral lock. The Neutral
Lock Lever (2) locks the Travel Select Lever in NEUTRAL or unlocks the
Travel Select Lever so that it can be moved into the FORWARD or
REVERSE drive position.
To lock the Travel Select Lever (1) in the NEUTRAL position, place the lever
in the NEUTRAL position and move the Neutral Lock Lever (2) to the (N)
NEUTRAL LOCK position.
To unlock, move the Neutral Lock Lever to the (D) DRIVE position.
N = NEUTRAL LOCK ..................all the way LEFT
D = DRIVE...................................all the way RIGHT
