Page 39
CS-3. Back Up Inhibit Switch
Test at pins 11 & 13
Table Switch Meter
Position Position Reading
K-Lift Dn Open Infinity
K-Lift Up Closed 0
When K-Lift is Up, CS-3 will not allow
Back Section to go more than 45° above
horizontal.
3500
CS-1. Leg Down 45˚ Inhibit
Test at pins 9 & 13
Table Switch Meter
Position Position Reading
Center Closed 0
Slide Hd Closed 0
Slide Ft Open Infinity
When Top is slid toward head, CS-1 will
not allow Leg Section to go more than
45˚ below horizontal.
CS-2. Back Down Inhibit
Test at pins 10 & 13
Table Switch Meter
Position Position Reading
Center Open Infinity
Slide Hd Closed 0
Slide Ft Open Infinity
When Top is slid toward foot, CS-2 will
not allow Back Section to go below
horizontal.
NOTES
SLIDE function will not operate when
CN-2 is disconnected.
CN-2
TS-2
PINK
COM
NC NC
COM
CS-2 CS-1
7
4
BLACK/WHITE
BLACK
3
13
10
9

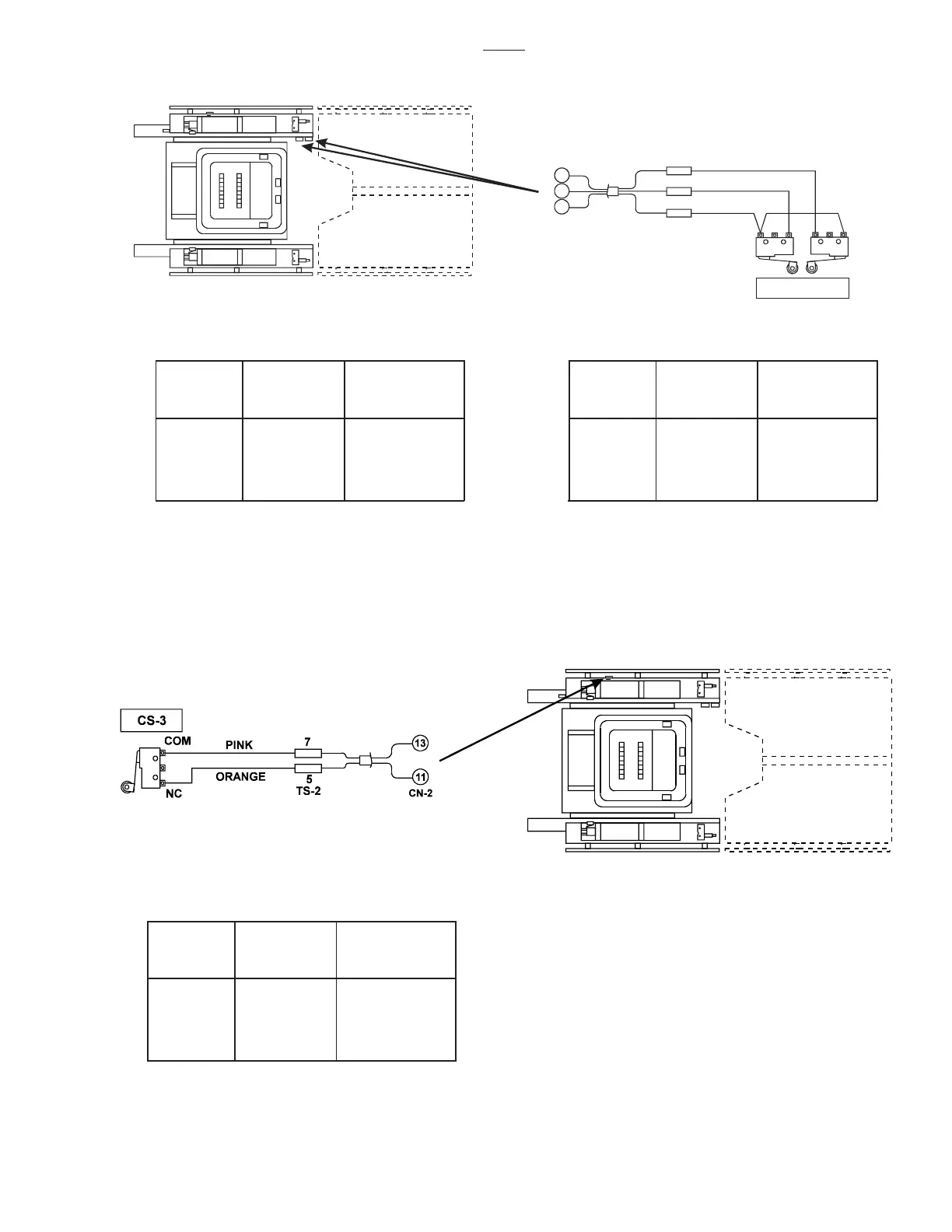

Figure 5-18. Leg Down / Back Down Inhibit Switches
Figure 5-19. Back Up Inhibit Switch
