Skytron ELITE Series Maintenance Manual

Page 40

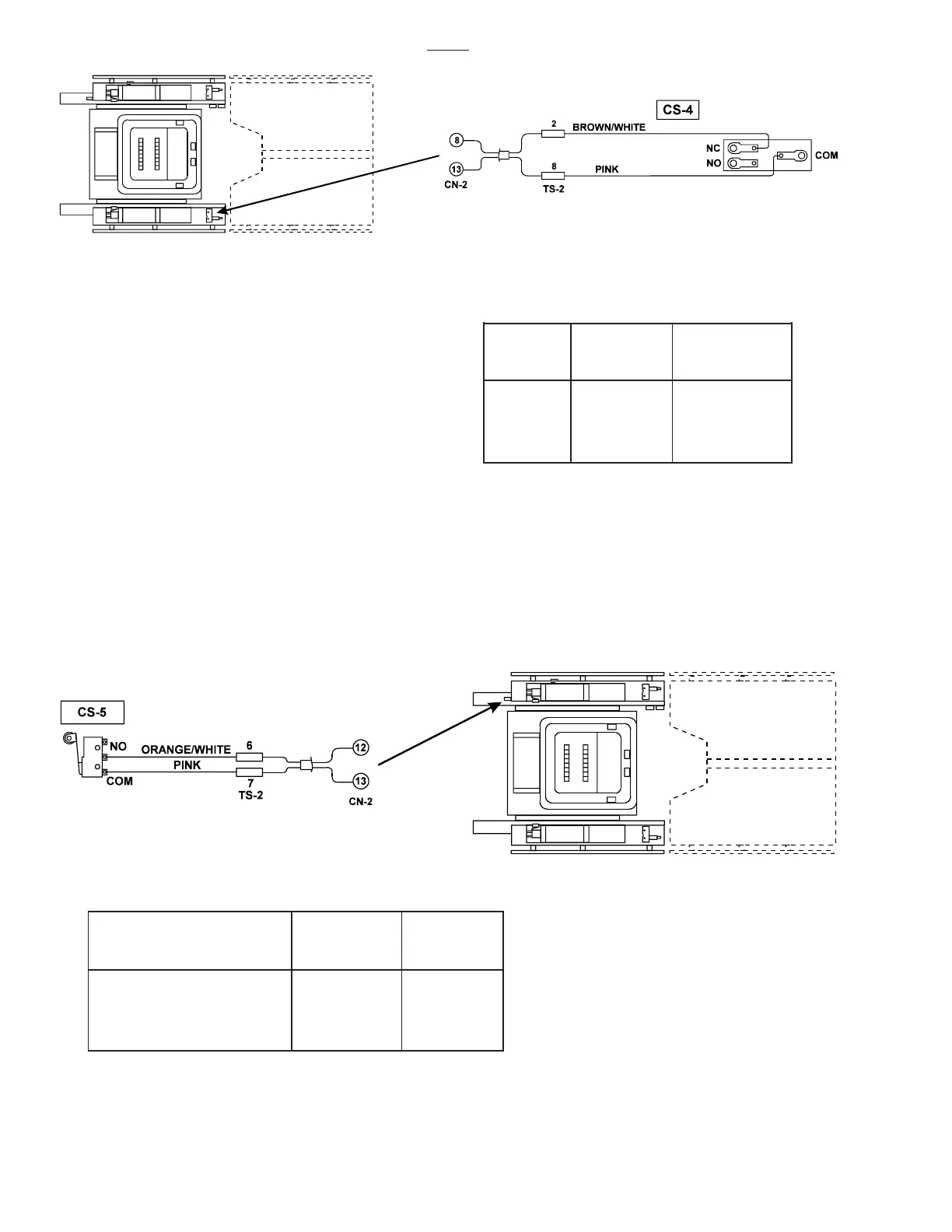

CS-4. Slide Inhibit
Test at pins 8 & 13
Table Switch Meter
Position Position Reading
Level Open Infinity
Leg Dn Closed 0
When Leg Section is more than 45°
below horizontal, CS-4 will not allow Top
to Slide toward head.
CS-5. Slide Inhibit
Test at pins 12 & 13
Table Switch Meter
Position Position Reading
Back Up Less Than 45° Open Infinity
Back Up More Than 45° Closed 0
When Back Section is more than 45° above hori-
zontal, CS-5 will not allow Kidney Lift to operate.
more than 45°
3500
Figure 5-20. Slide to Head Inhibit Switch
Figure 5-21. Kidney Lift Inhibit Switch
