Skytron ELITE Series Maintenance Manual

Page 58
3500B
CS-4. Slide Inhibit
Test at pins 8 & 15
Table Switch Meter
Position Position Reading
Level Open Infinity
Leg Dn Closed 0
When Leg Section is more than 45˚
below horizontal, CS-4 will not allow Top
to Slide toward head.
more than 45˚
CN-10
8
15
TS-2
8
2
BROWN/WHITE
CS-4
NC
COM
NO
GREY

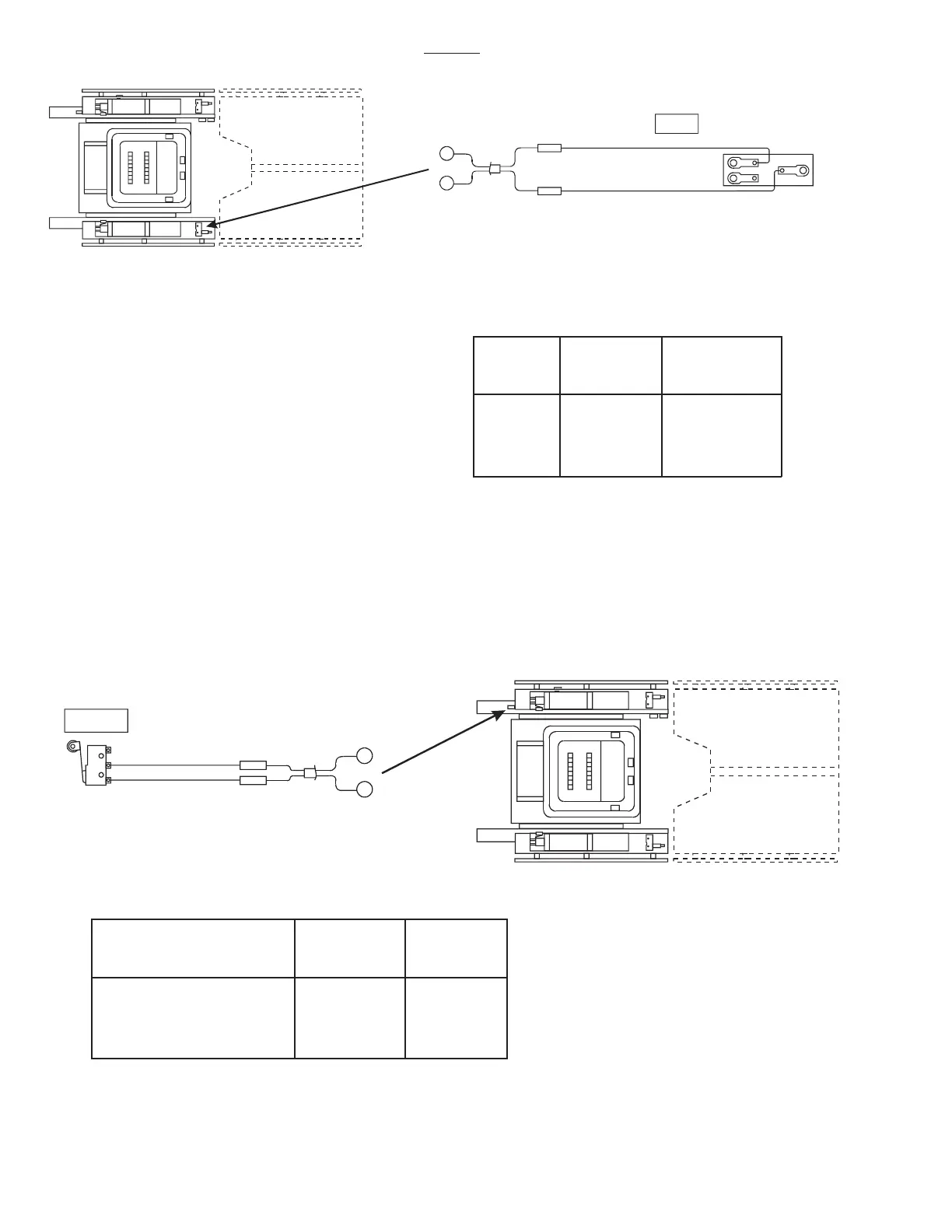

Figure 6-31. Slide to Head Inhibit Switches
CS-5. Slide Inhibit
Test at pins 12 & 15
Table Switch Meter
Position Position Reading
Back Up Less Than 45˚ Open Infinity
Back Up More Than 45˚ Closed 0
When Back Section is more than 45˚ above hori-
zontal, CS-5 will not allow Kidney Lift to operate.
12
15
CN-10
CS-5
ORANGE/WHITE
NO
PURPLE
TS-2
6
7
COM
Figure 6-32. Kidney Lift Inhibit Switches
