Page 59
3500B
b. Switch Adjustment.
If proper readings are not obtained during test or if
table does not properly return to level, use the
following procedure to adjust the switches.
1. Apply table brakes and (using a level) level
the table top using the TRENDELENBURG and
LATERAL-TILT function buttons on the pendant
control.
2. For all switches except the Leg Section
switches, carefully loosen the switch retaining
screws, and adjust the switches as needed. See
figure 5-22.

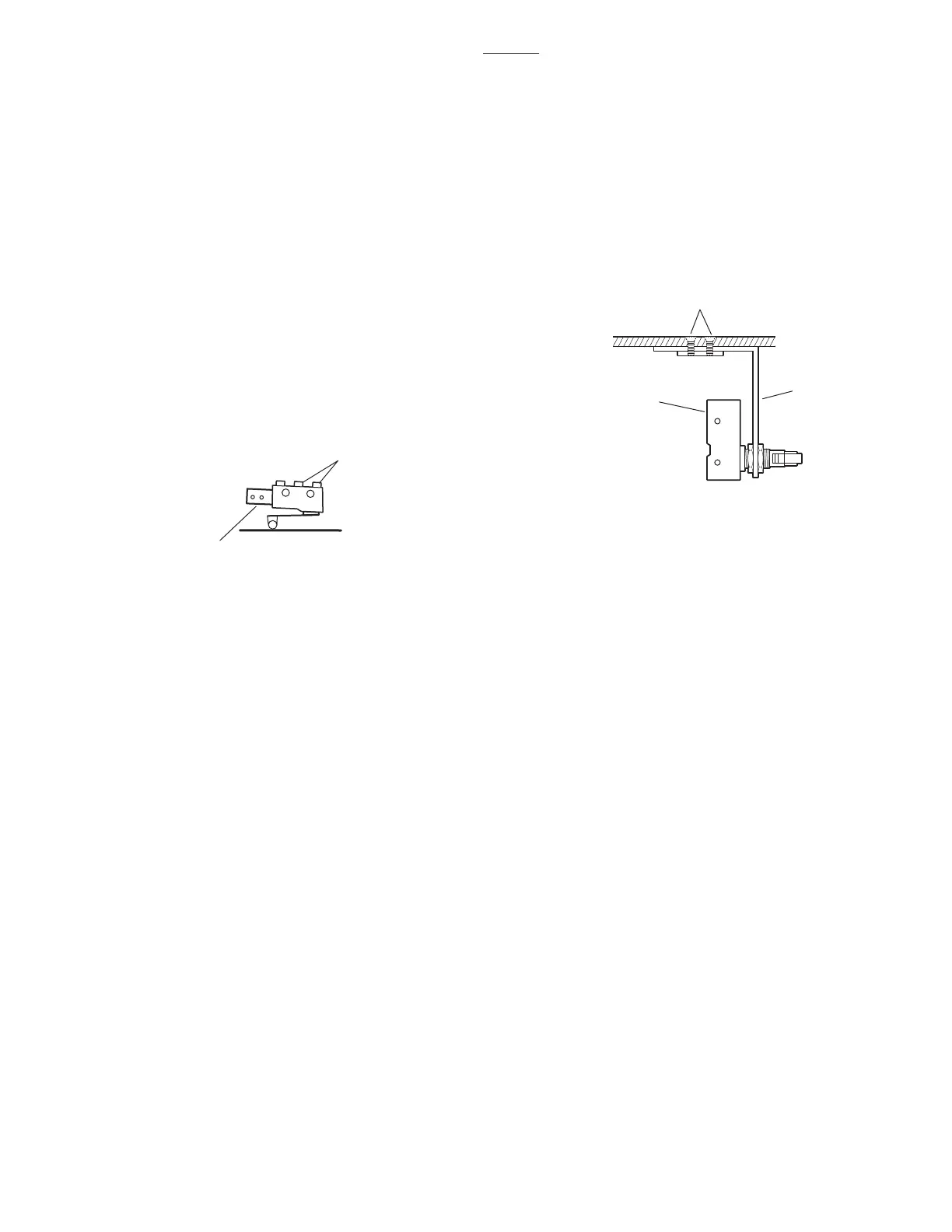

Figure 6-33. Micro-Switch Adjustment
3. To adjust the Leg Section switches, remove
seat section top, loosen the two phillips head screws
securing the bracket, adjust the switch, tighten the
screws and replace the seat section top. See
figure 6-34.
RETAINING
SCREWS
MICRO-SWITCH
LEG SECTION
MICRO-SWITCH
BRACKETS
PHILLIPS HEAD
SCREWS
Figure 6-34. Leg Section Micro-Switch
Adjustment.
