SMART Board MX Series Installation And Maintenance Guide

Chapter 1 Welcome
smarttech.com/kb/171555 13
This guide is intended for those who install and maintain displays in their organizations. Other
documentation and resources are available for those who use displays (see More information on
page19).

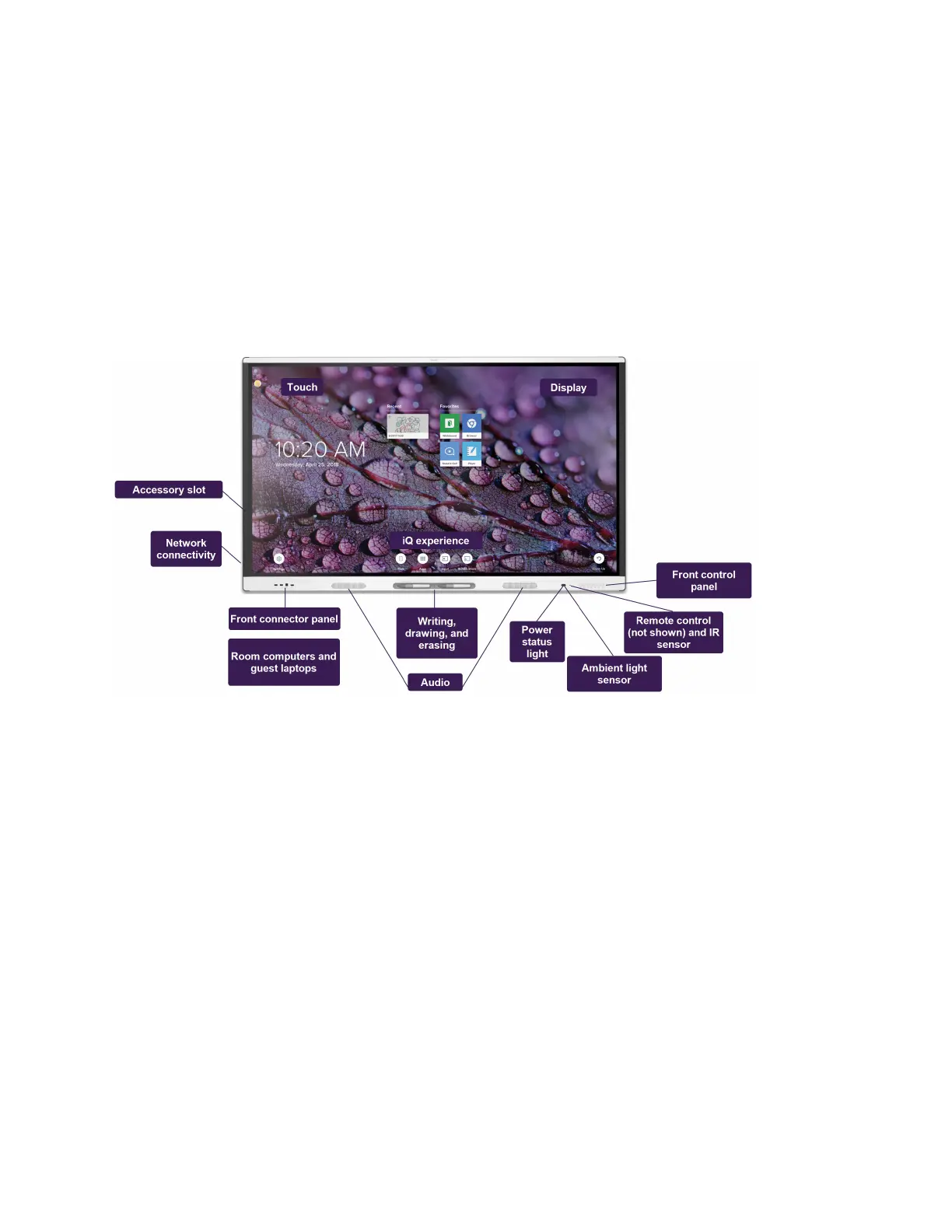

About the display
The SMART Board
®
MX or MX Pro interactive display with iQ is the hub of your classroom.
The display includes an extensive set of features and components:
Touch
You can do everything on the display that you can do at your computer—open and close applications,
meet with others, create new documents or edit existing ones, visit websites, play and manipulate videos,
and so on—by touching the display’s surface.
You can use an array of gestures within applications, including panning, scaling, rotating, and zooming
in and out.
Writing, drawing, and erasing
The display comes with two pens, which you can use to write or draw on the screen.
Use your fist or palm to erase digital ink on the screen.
With Object Awareness
™
, the display responds automatically to the tool or object you’re using, whether
it’s a pen, finger, or palm. The display’s Simultaneous Tool Differentiation technologies allow two people
to write independently and simultaneously.

SMART Board MX Series Specifications

General

Screen Sizes	65", 75", 86"
Touch Points	20
Aspect Ratio	16:9
Response Time	8 ms
Viewing Angle	178°
Integrated Speakers	Yes
Internal Storage	16 GB
VESA Mount Compatibility	Yes
Warranty	3 years
Display Type	LCD
Brightness	350 cd/m²
Inputs	HDMI, USB, VGA
Operating System Compatibility	Windows, macOS, Chrome OS
Operating System	Android
Processor	Quad-Core
Dimensions	Varies by size
Touch Technology	Infrared
Weight	Varies by size: 65" - 45.6 kg, 75" - 62 kg, 86" - 78 kg
