SMART Board MX Series Installation And Maintenance Guide

Chapter 3 Connecting computers and other devices
smarttech.com/kb/171555 47
Connector diagrams
SMARTBoard MX (V3) series
Connector panel

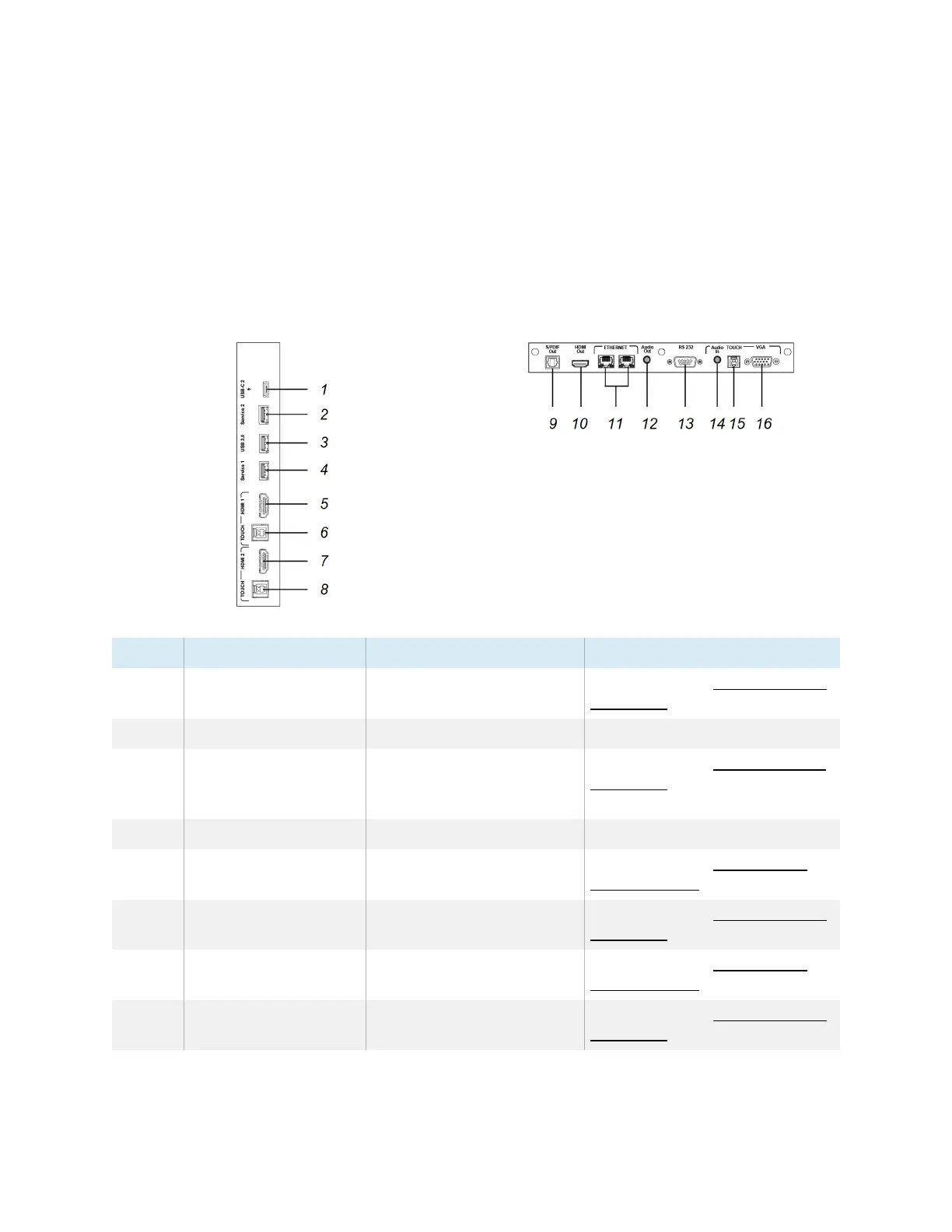

The following diagram and table present the connectors on the display’s connector panel:
Side Bottom
No. Connector Connects to Notes
1
USB Type-C USB Type-C 2 input
See page36 and USB cables and
connectors.
2 USB 3.0 Type-A [N/A] This connector is a service port.
3 USB 3.0 Type-A Supported USB drives,
peripherals, and other
devices
See page43 and USB cables and
connectors.
4 USB 2.0 Type-A [N/A] This connector is a service port.
5 HDMI 2.0 in HDMI 1 input
(videoandaudio)
See page36 and HDMI cables
and connectors.
6 USB 3.0 Type-B HDMI 1 input (touch) See page36 and USB cables and
connectors.
7 HDMI 2.0 in HDMI 2 input
(videoandaudio)
See page36 and HDMI cables
and connectors.
8 USB 3.0 Type-B HDMI 2 input (touch) See page36 and USB cables and
connectors.

SMART Board MX Series Specifications

General

Screen Sizes	65", 75", 86"
Touch Points	20
Aspect Ratio	16:9
Response Time	8 ms
Viewing Angle	178°
Integrated Speakers	Yes
Internal Storage	16 GB
VESA Mount Compatibility	Yes
Warranty	3 years
Display Type	LCD
Brightness	350 cd/m²
Inputs	HDMI, USB, VGA
Operating System Compatibility	Windows, macOS, Chrome OS
Operating System	Android
Processor	Quad-Core
Dimensions	Varies by size
Touch Technology	Infrared
Weight	Varies by size: 65" - 45.6 kg, 75" - 62 kg, 86" - 78 kg
