SMART Board MX Series Installation And Maintenance Guide

Chapter 3 Connecting computers and other devices
smarttech.com/kb/171555 50
No. Connector Connects to Notes
5 HDMI 2.0 in HDMI 1 input
(videoandaudio)
See page36 and HDMI cables and
connectors.
6 USB 3.0 Type-B HDMI 2 input (touch) See page36 and USB cables and
connectors.
7 HDMI 2.0 in HDMI 2 input
(videoandaudio)
See page36 and HDMI cables and
connectors.
8 RJ45 (×2) Network See page29 and Ethernet (network)
cables and connectors.
9 S/PDIF out Digital audio output See page45 and Digital audio cables
and connectors.
10 Stereo 3.5 mm out External audio system See page45 and Analog audio cables
and connectors.
11 Stereo 3.5 mm in VGA input (audio) See page36 and Analog audio cables
and connectors.
12 VGA in VGA input (video) See page36 and VGA cables and
connectors.
13 USB 3.0 Type-B VGA input (touch) See page36 and USB cables and
connectors.

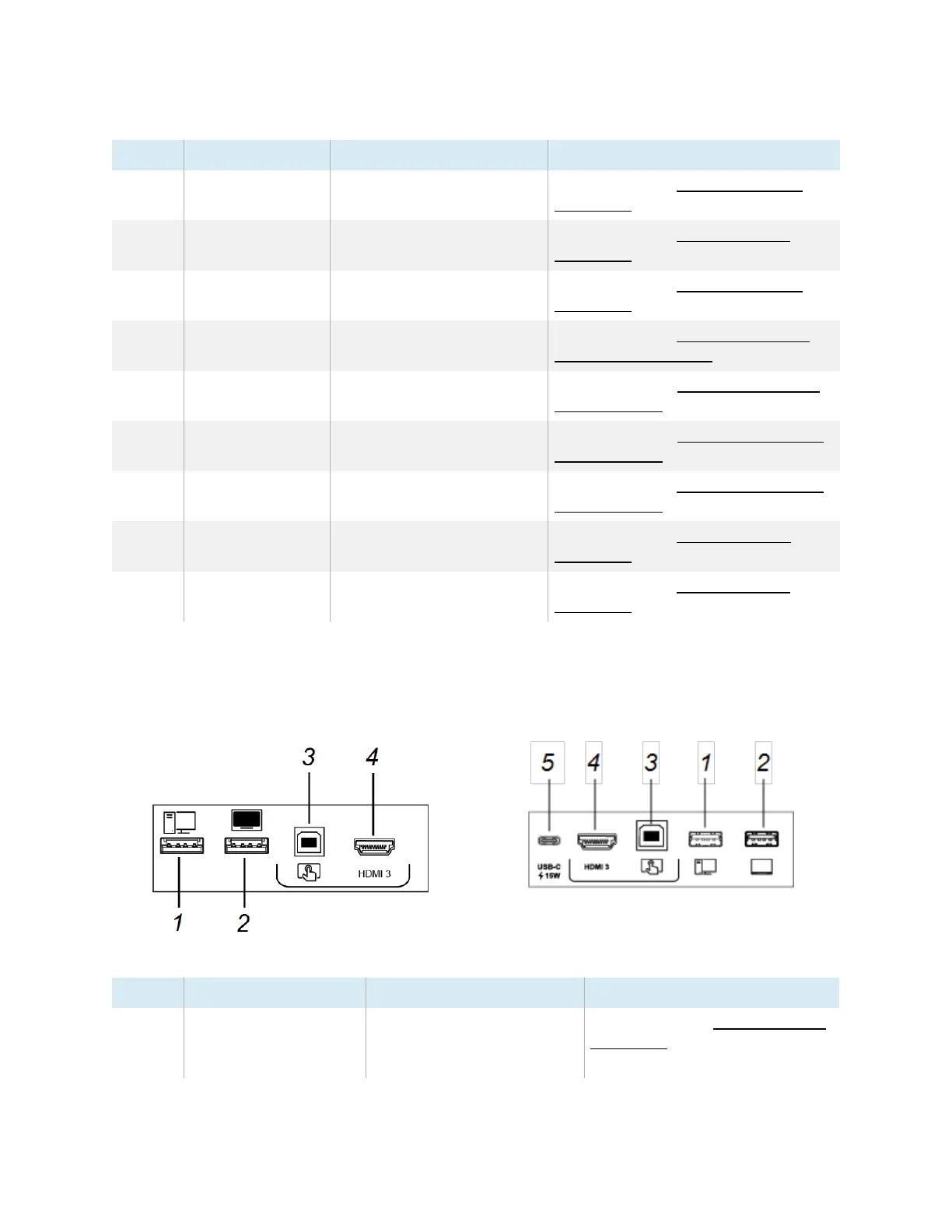

Front connector panel
The following diagram and table present the connectors on the display’s front connector panel:
SMART Board MX (V2) series SMARTBoard MX (V2-C) series
No. Connector Connects to Notes
1 USB 2.0 Type-A Supported USB drives,
peripherals, and other
devices
See page43 and USB cables and
connectors.

SMART Board MX Series Specifications

General

Screen Sizes	65", 75", 86"
Touch Points	20
Aspect Ratio	16:9
Response Time	8 ms
Viewing Angle	178°
Integrated Speakers	Yes
Internal Storage	16 GB
VESA Mount Compatibility	Yes
Warranty	3 years
Display Type	LCD
Brightness	350 cd/m²
Inputs	HDMI, USB, VGA
Operating System Compatibility	Windows, macOS, Chrome OS
Operating System	Android
Processor	Quad-Core
Dimensions	Varies by size
Touch Technology	Infrared
Weight	Varies by size: 65" - 45.6 kg, 75" - 62 kg, 86" - 78 kg
