SMART Board MX Series Installation And Maintenance Guide

Chapter 3 Connecting computers and other devices
smarttech.com/kb/171555 53
Front connector panel

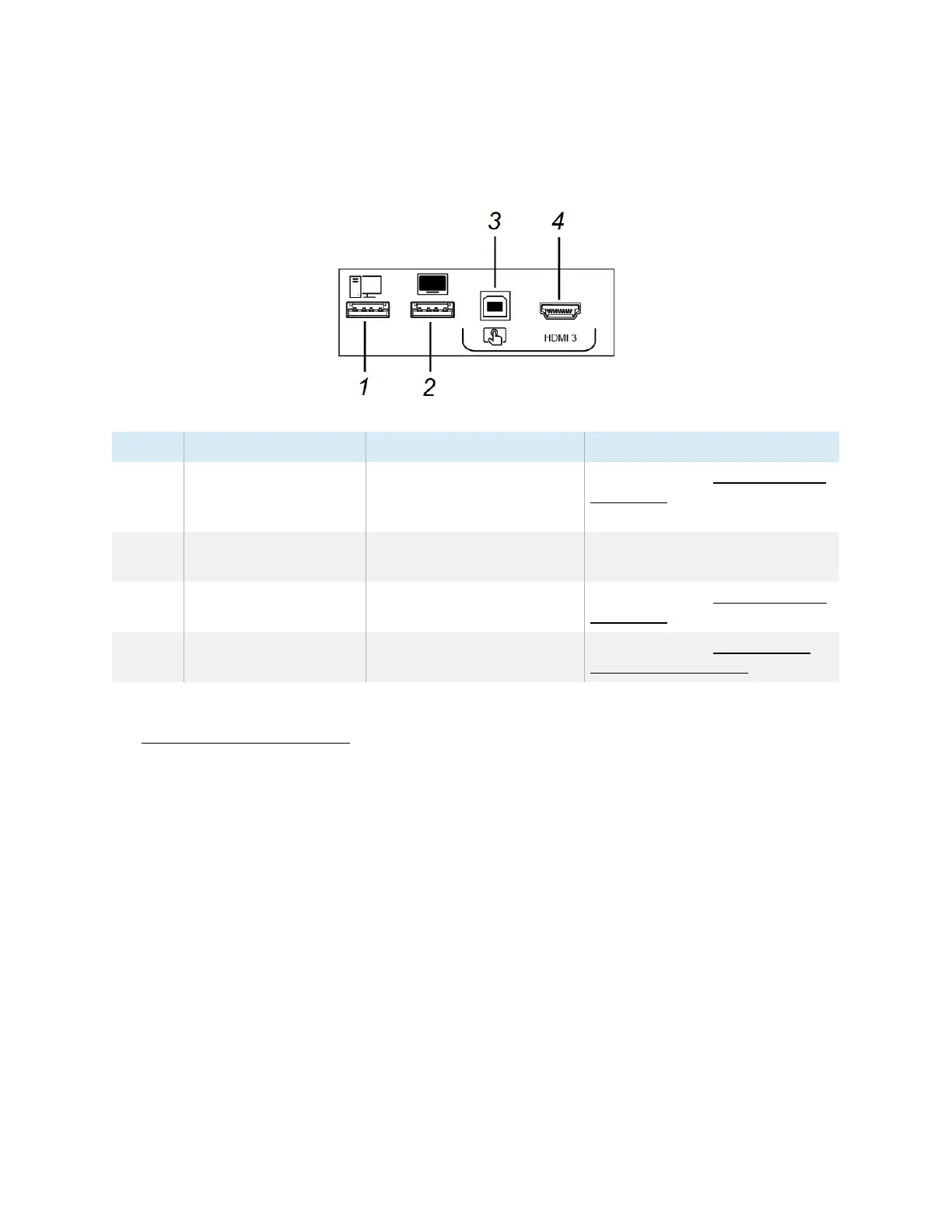

The following diagram and table present the connectors on the display’s front connector panel:
No. Connector Connects to Notes
1 USB 2.0 Type-A Supported USB drives,
peripherals, and other
devices
See page43 and USB cables and
connectors.
2 USB 2.0 Type-A
connector
Supported USB drives Connect a USBdrive to update the
display’s firmware.
3 USB 2.0 Type-B
connector
HDMI 3 input (touch)
See page36 and USB cables and
connectors.
4 HDMI 3 input connector HDMI 3 input
(videoandaudio)
See page36 and Analog audio
cables and connectors.
AM40 and AM50 appliances
See iQ appliance connector panel.

SMART Board MX Series Specifications

General

Screen Sizes	65", 75", 86"
Touch Points	20
Aspect Ratio	16:9
Response Time	8 ms
Viewing Angle	178°
Integrated Speakers	Yes
Internal Storage	16 GB
VESA Mount Compatibility	Yes
Warranty	3 years
Display Type	LCD
Brightness	350 cd/m²
Inputs	HDMI, USB, VGA
Operating System Compatibility	Windows, macOS, Chrome OS
Operating System	Android
Processor	Quad-Core
Dimensions	Varies by size
Touch Technology	Infrared
Weight	Varies by size: 65" - 45.6 kg, 75" - 62 kg, 86" - 78 kg
