Connecting an external display
You can connect an external display to SMART Board MX (V2 and V2-C) series

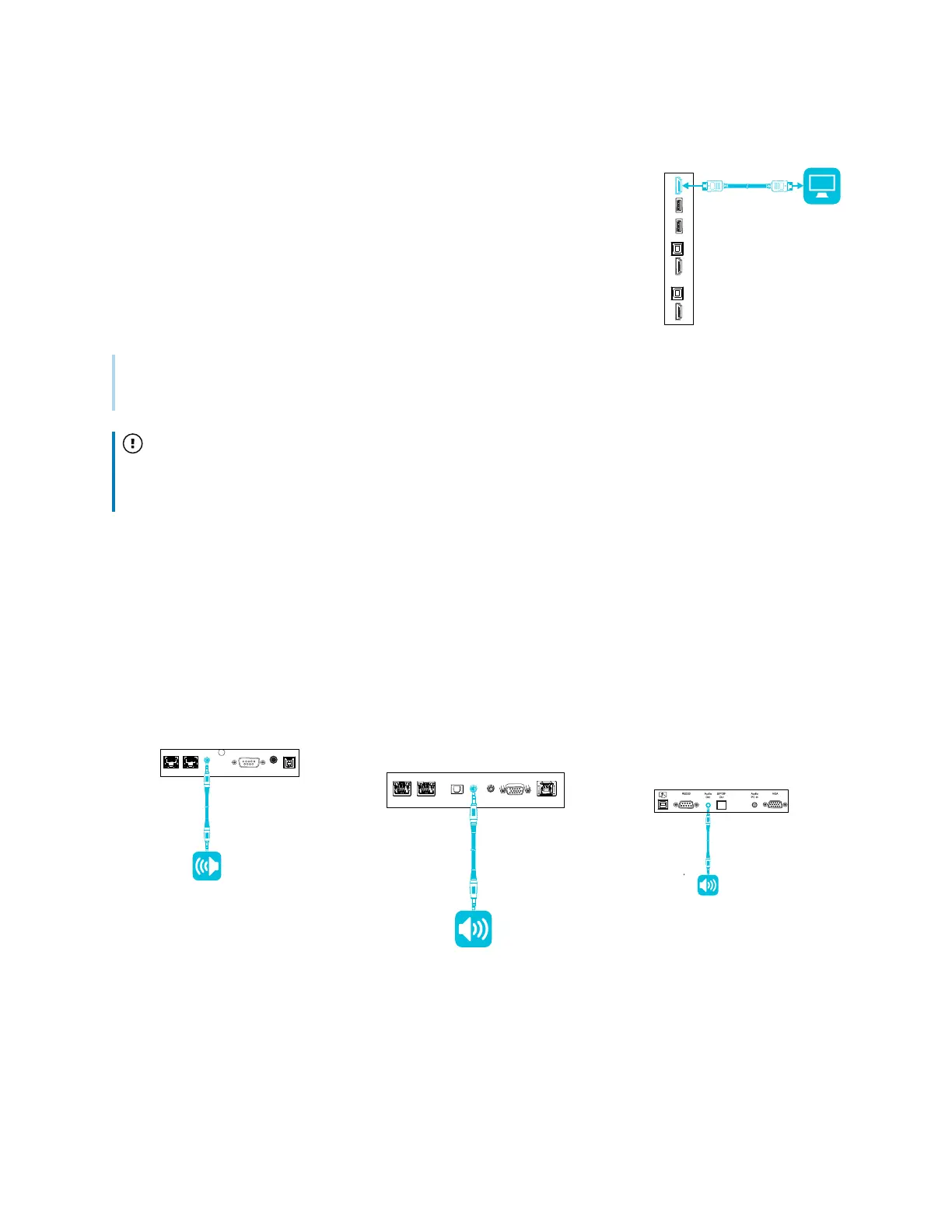

displays using the HDMI 2.0 out connector on the connector panel (pictured).
The external display will show the same image. This is useful when you’re
using the display in an auditorium or other large space where it would be
beneficial to have a second display.
Note
SMARTBoard MX (V3N) series displays do not include an HDMI Out connector.
Important
If the connected external display doesn’t support HDCP, the image on the external display is limited to
480p resolution. For full resolution output, connect a display that supports HDCP.
Connecting an external audio system
The display includes two speakers, which are designed to provide sound at the front of a room. You
might want to connect an external audio system if you’re providing sound in a larger space.
You can connect an external audio system to the display using the stereo 3.5mm out connector
(pictured). This disables the display’s internal speakers. Alternatively, you can connect an external audio
system directly to a room computer.
SMART Board MX (V3) series SMART Board MX (V2 and V2-
C) series
SMART Board MX series
In addition to the stereo 3.5 mm out connector, the display provides a Sony/Philips Digital Interface
(S/PDIF) out connector (pictured). S/PDIF is a digital audio transmission medium. You need an audio
system that has an S/PDIF input to decode this connection to analog. Most external sound bars include a
S/PDIF connector.
