SMART Board MX Series Installation And Maintenance Guide

Chapter 2 Installing the display
smarttech.com/kb/171555 27
l

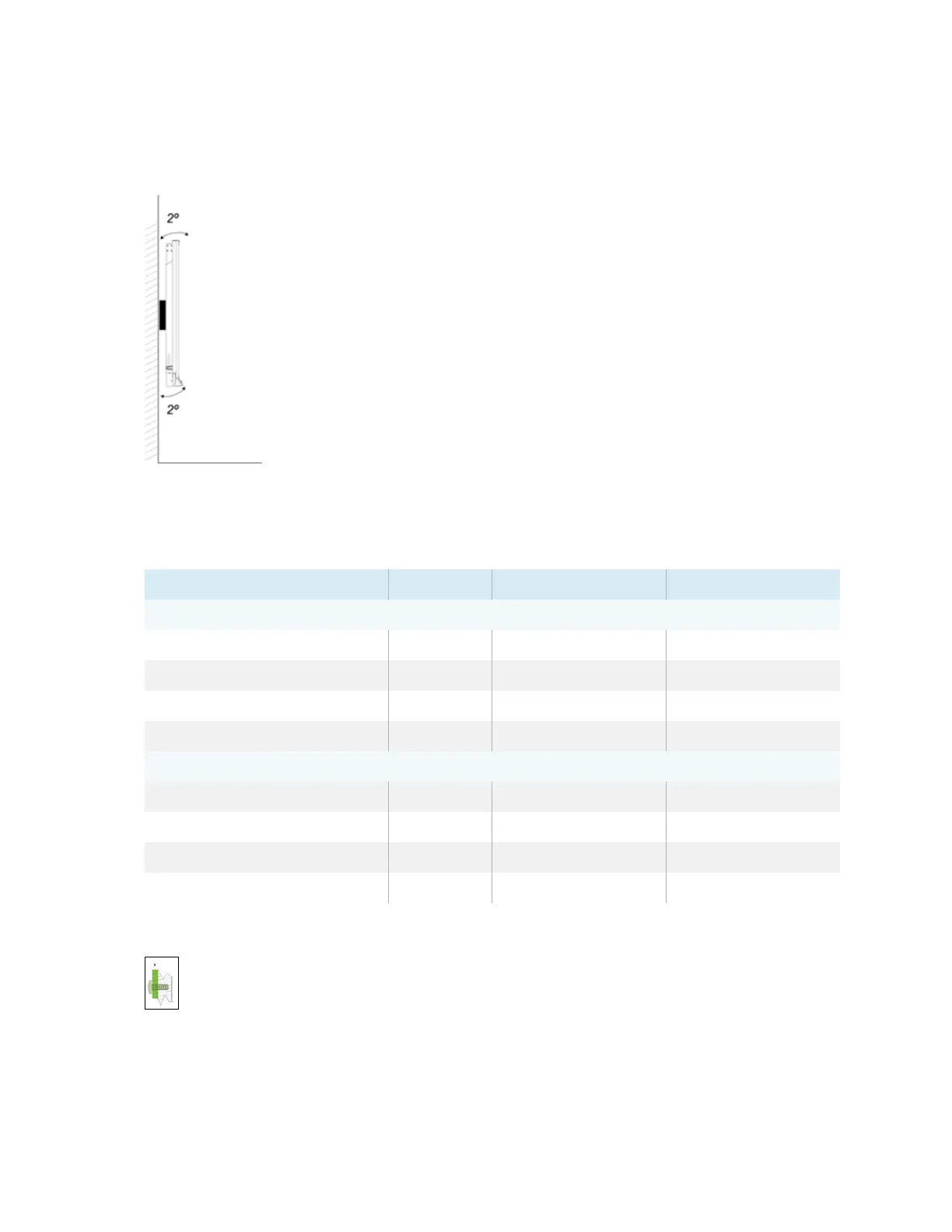

Mount the display vertically (90° relative to the floor plus or minus 2° for tolerance) and in landscape
orientation. SMART doesn’t support mounting the display at other angles or in portrait orientation.
l
Use the included wall mount. Optionally, use a VESA-approved mounting plate that is rated for the
display’s weight and size.
l
If you’re not using the included bolts to fasten the wall mount to the display, see the following table.
Display Bolt type Minimum length Maximum length
SMARTBoard MX (V2, V2-C, and V3) series
55" models M8 14 mm + x mm 20 mm + x mm
65" models M8 14 mm + x mm 18 mm + x mm
75" models M8 18 mm + x mm 30 mm + x mm
86" models M8 14 mm + x mm 30 mm + x mm
SMARTBoard MX series
65" models (Part No. 1031028) M6 14 mm + x mm 18 mm + x mm
65" models (Part No. 1033445) M8 14 mm + x mm 18 mm + x mm
75" models M8 18 mm + x mm 30 mm + x mm
86" models M8 14 mm + x mm 30 mm + x mm
where x is the combined thickness of the wall mount and washer

SMART Board MX Series Specifications

General

Screen Sizes	65", 75", 86"
Touch Points	20
Aspect Ratio	16:9
Response Time	8 ms
Viewing Angle	178°
Integrated Speakers	Yes
Internal Storage	16 GB
VESA Mount Compatibility	Yes
Warranty	3 years
Display Type	LCD
Brightness	350 cd/m²
Inputs	HDMI, USB, VGA
Operating System Compatibility	Windows, macOS, Chrome OS
Operating System	Android
Processor	Quad-Core
Dimensions	Varies by size
Touch Technology	Infrared
Weight	Varies by size: 65" - 45.6 kg, 75" - 62 kg, 86" - 78 kg
