HGM9510 GENSET PARALLEL UNIT
HGM9510 Genset Parallel Unit ISSUE 2013-08-06 Version 1.1 Page 12 of 65
Status of genset and ATS
★Engine, including as below,
Engine speed, engine temperature, engine oil pressure, fuel level, flexible sensor 1, flexible
sensor 2, battery voltage, charger voltage, engine accumulated run, accumulated start times.
NOTE: If connected with J1939 engine via CANBUS port, this page also includes: coolant
pressure, coolant level, fuel temperature, fuel pressure, inlet temperature, exhaust temperature,
turbo pressure, total fuel consumption and so on. (Different engine with different parameters)
★Generator, including as below,
Phase voltage, line voltage, frequency, phase sequence, current, Active Power(positive and
negative), total active power (positive and negative), Reactive Power(positive and negative), total
reactive power (positive and negative), Apparent Power, total apparent power, Power
Factor(positive and negative), average power factor (positive and negative), accumulated
energy (kWh, kVarh, kVAh), multi power, earth current, negative sequence current.

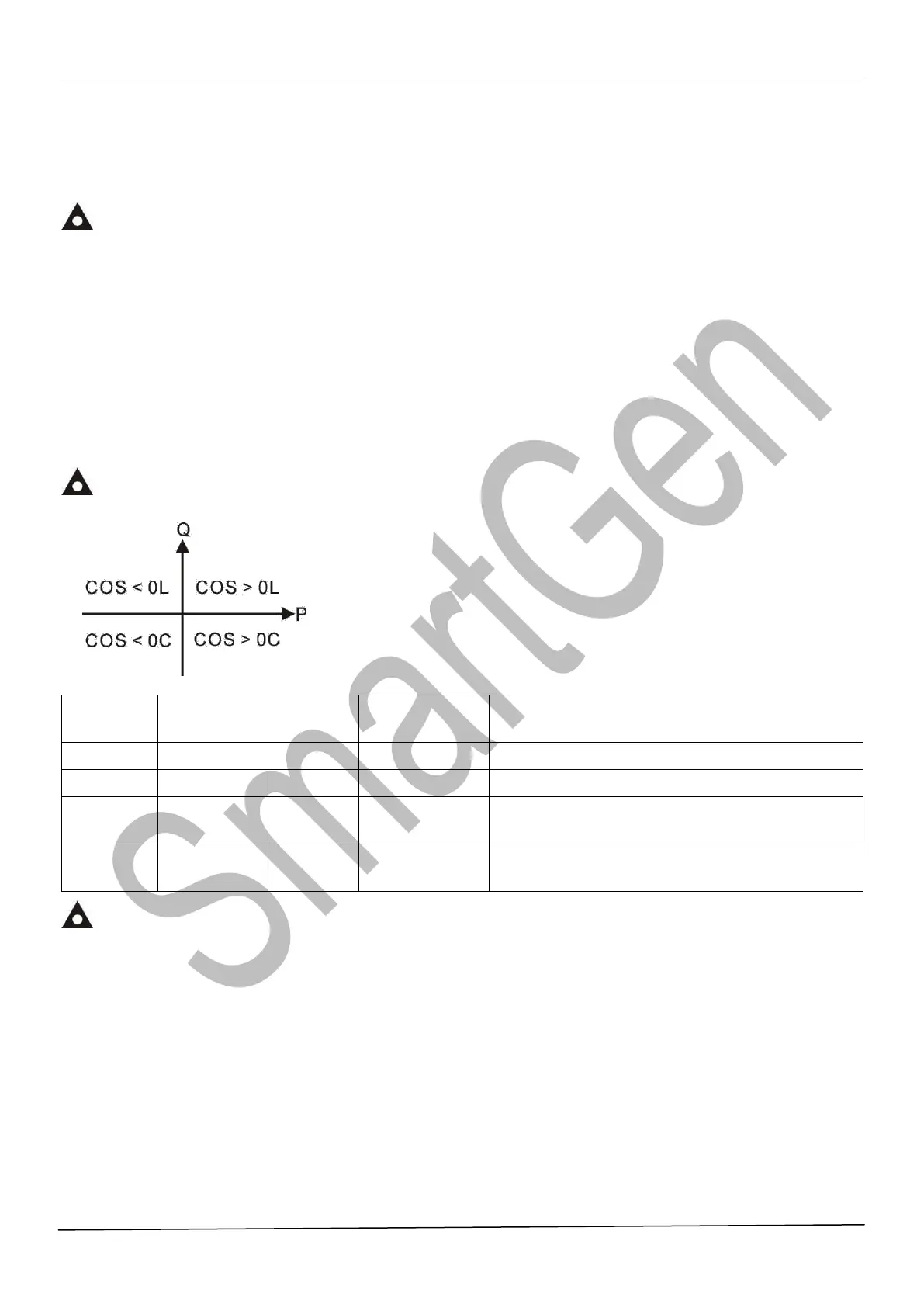

NOTE: Power factor shows as following,
Remark:
P stands for active power
Q stands for inactive power
Note:
1. Input active power, generator send active power to load.
2. Output active power, load supply electricity to generator.
3. Input reactive power, generator send reactive power to load.
4. Output reactive power, load send reactive power to generator.
★Bus, including as below,
Phase voltage, line voltage, frequency, phase sequence
★SNYC, including as below,
Power
factor
Conditions
Active
power
Reactive
power
Remark
COS>0L
P>0,Q>0
Input
Input
Load is inductive resistance.
COS>0C
P>0,Q<0
Input
Output
Load is capacitance resistance.
COS<0L
P<0,Q>0
Output
Input
Load is equal to one under excitation
generator.
COS<0C
P<0,Q<0
Output
Output
Load is equal to one over excitation
generator.
