HGM9510 GENSET PARALLEL UNIT
HGM9510 Genset Parallel Unit ISSUE 2013-08-06 Version 1.1 Page 54 of 65
14 LOAD SHEDDING
Non-essential load ---- NEL for short.
The controller can control the NEL1, NEL2 and NEL3 to trip separately. The order of the
essentiality is: NEL3 > NEL2 > NEL1

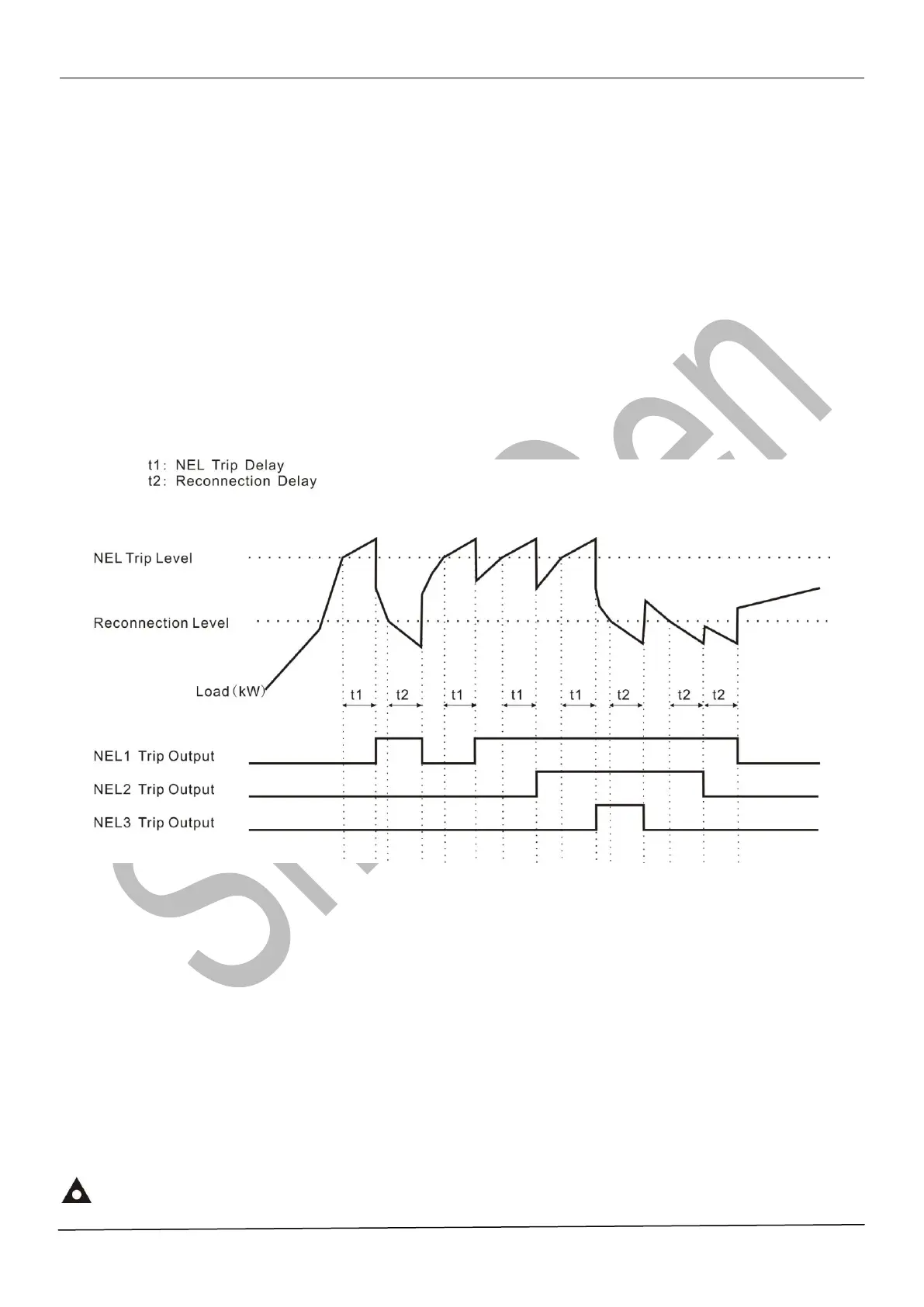

Auto trip：
When NEL auto trip is enabled:
If the genset power has exceed the NEL trip value, after the trip delay, NEL1 will trip the earliest,
and then is NEL2，NEL3；
When NEL auto reconnection is enabled:
If the genset power has fallen below the auto reconnection set value, after the auto reconnection
delay, NEL3 will reconnection the earliest, and then is NEL2，NEL1；
Manual Trip
If NEL manual trip input is active (earthed failing edge is active), NEL1 will trip without delay; If
NEL manual trip input is active again, NEL2 will trip; If NEL manual trip input is active the third
time, NEL3 will trip. During this process, the controller do not detect if the genset power has
exceed the NEL trip value or not.
If NEL manual reconnection input is active (earthed failing edge is active), NEL3 will reconnect
without delay; If NEL manual reconnection input is active again, NEL2 will reconnect; If NEL
manual reconnection input is active the third time, NEL1 will reconnect. During this process, the
controller detects the genset power: if the genset power has fallen below the NEL reconnection
value, then the input is active; if it doesn’t, the input is deactivated.
Note: When auto trip and auto reconnection are enabled, manual trip is still active.
