10.7 Defibrillator
Category
Rated specifications
Waveform
Biphasic Truncated Exponential (BTE)
The waveform parameters are regulated automatically depending on the patient’s autonomy

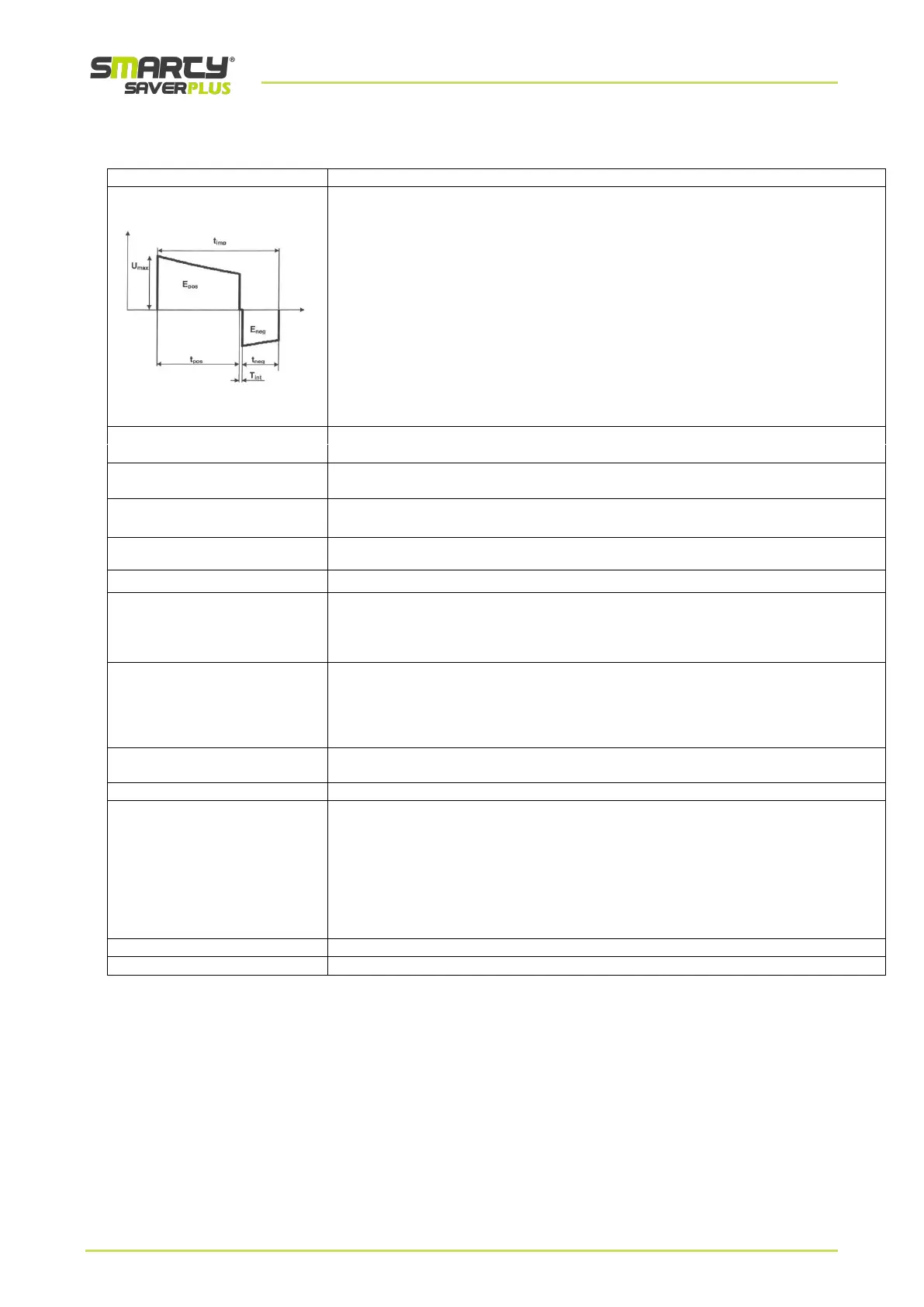

In the graph on the left, t
pos
represents the duration of phase 1 (ms), t
neg
represents the
duration of phase 2 (ms), t
int
is the delay between the phases, U
max
indicates the peak voltage,
t
imp
is the end voltage. In order to compensate for variations in patient impedance, the
duration of each phase of the waveform is regulated dynamically based on the shock delivered,
as indicated in the following paragraph.
Max Energy delivered (Adults)
nominal 200J
Adult shock protocol
Incremental: First: 150J – Subsequent: 200J
Max Energy delivered (Children)
nominal 50 J
Children shock protocol
Fixed: First and subsequent: 50J
Charge control:
Automatic through a patient analysis system
Charge time
(from shock warning)
≤ 9 sec (in accordance with IEC60601-2-4
150J with new, fully charged battery SMT-C14031
≤ 12 sec (in accordance with IEC60601-2-4
200J with new, fully charged battery SMT-C14031
Charge time
(from the start of the analysis)
≤ 13 sec (in accordance with IEC60601-2-4
150J with new, fully charged battery SMT-C14031
≤ 16 sec (in accordance with IEC60601-2-4
200J with new, fully charged battery SMT-C14031
Indication of full charge
• The SHOCK button is blinking
• Voice message “Push the blinking red button”
Delivery of the shock
The shock is delivered by pushing the “SHOCK” button
Disarming
Automatic:
• If the patient analysis system considers the rhythm to be no longer
defibrillable, or
• If the operator has not pushed the SHOCK button within 15 seconds from
completion of the charge, or
• If the defibrillation pads have been removed from the patient or
disconnected from the unit.
Manual:
• If the operator pushes the OFF/DEACTIVATION button, at any time, to
deactivate or switch off the device.
Shock detection vector
Through the defibrillation pads (Lead II)
Patient insulation
Through the Type BF defibrillation pads
