- 15 -
No.EX##-OMY0004
3.2. Structure
No.
Components
Function
1
SI Unit
Fieldbus, Safety Digital Input, Safe power supply for valve interface and
supply voltage to modules
2
Digital Input Module
Supply voltage to sensors and input digital data
3
Digital Output Module
Output to electric loads
4
End plate
End plate of module
5
Solenoid valves
Operate pneumatic devices

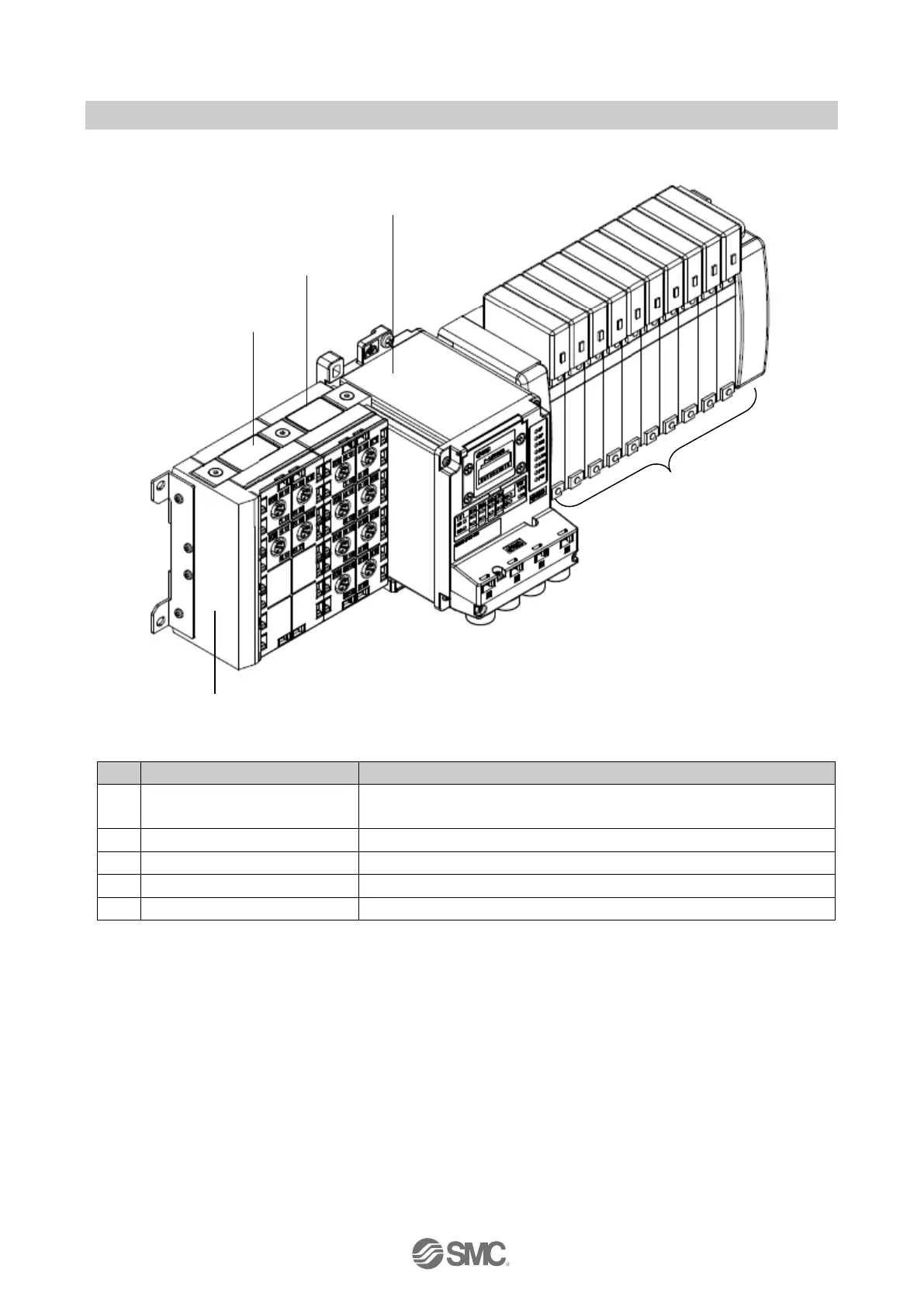

Fig. 3-1 System structure
4. End plate
EX245-EA2-1
2. Digital Input Module
EX245-DX1
3. Digital Output Module
EX245-DY1
5. Solenoid valves
1. SI Unit
EX245-FPS1/2/3
