- 70 -
No.EX##-OMY0004
11. Digital Input Module - EX245-DX1
11.1. Parts and description

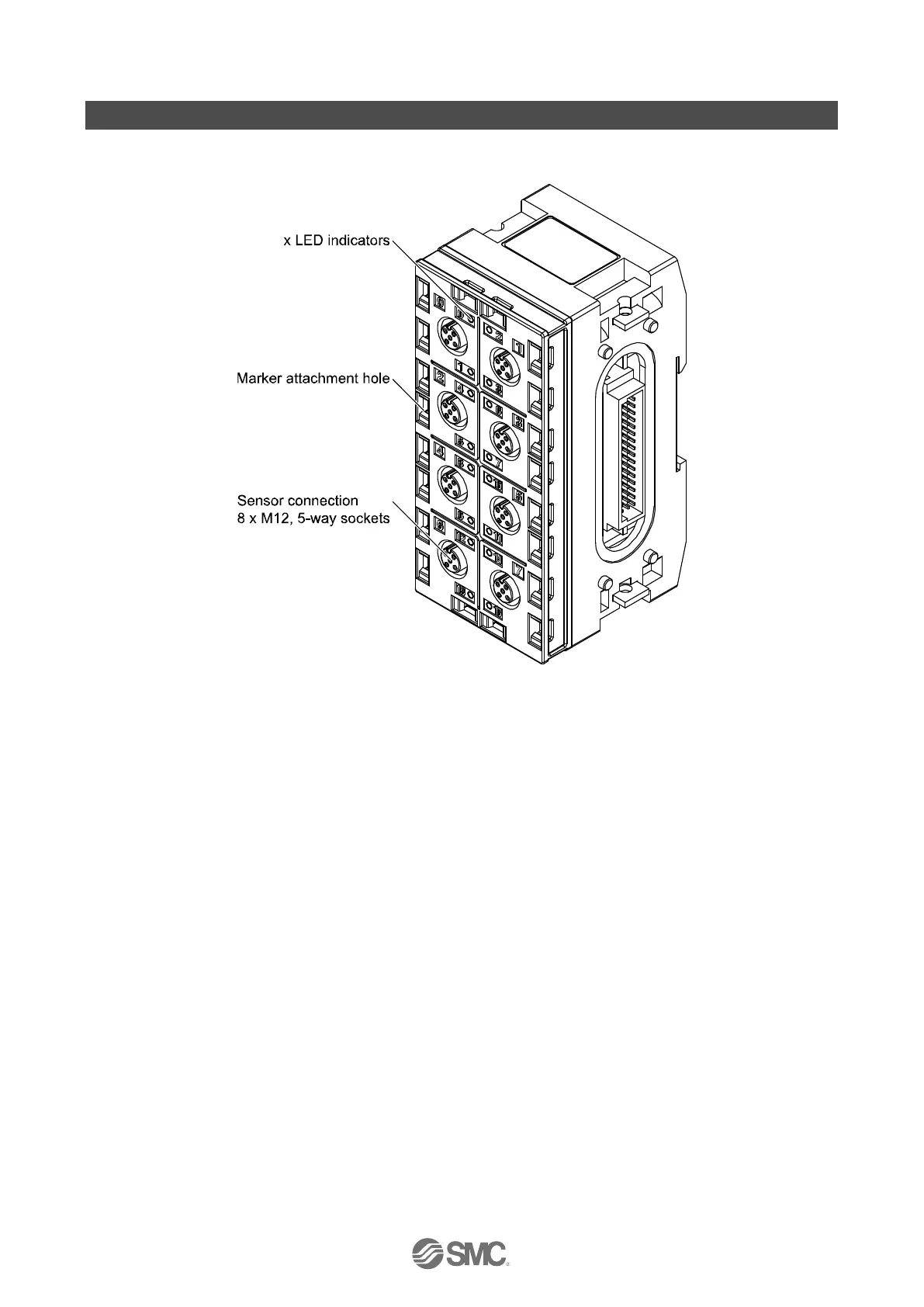

Fig. 11-1 Allocation of parts on the EX245-DX1
Note: EX245-DX1 is the new part number for the EX245-DX1-X36
