8. Commissioning
8.1. Configuration
The EX245-FPS1/2/3 is a modular device that can consist of several modules. Setup your PROFIsafe
master's software to reflect the configuration of your system.
8.1.1. File and symbol files
In order to configure the EX245-FPS1/2/3 with your PROFIsafe master’s software the appropriate GSD file
is required. The GSD file contains all of the necessary information to configure the EX245-FPS1/2/3 on
your PROFIsafe master’s software.
In order to represent the EX245-FPS1/2/3 in your PROFIsafe master’s software the appropriate symbol
files are required.
Current GSD file and symbol files name are as follows.
GSD file : GSDML-V2.3-SMC-EX245-FPS-V.-.xml
Symbol file : GSDML_0083_0006_EX2454N.bmp
Note:
The GSD file installs 4 separate module definitions for the EX245-FPS1/2/3

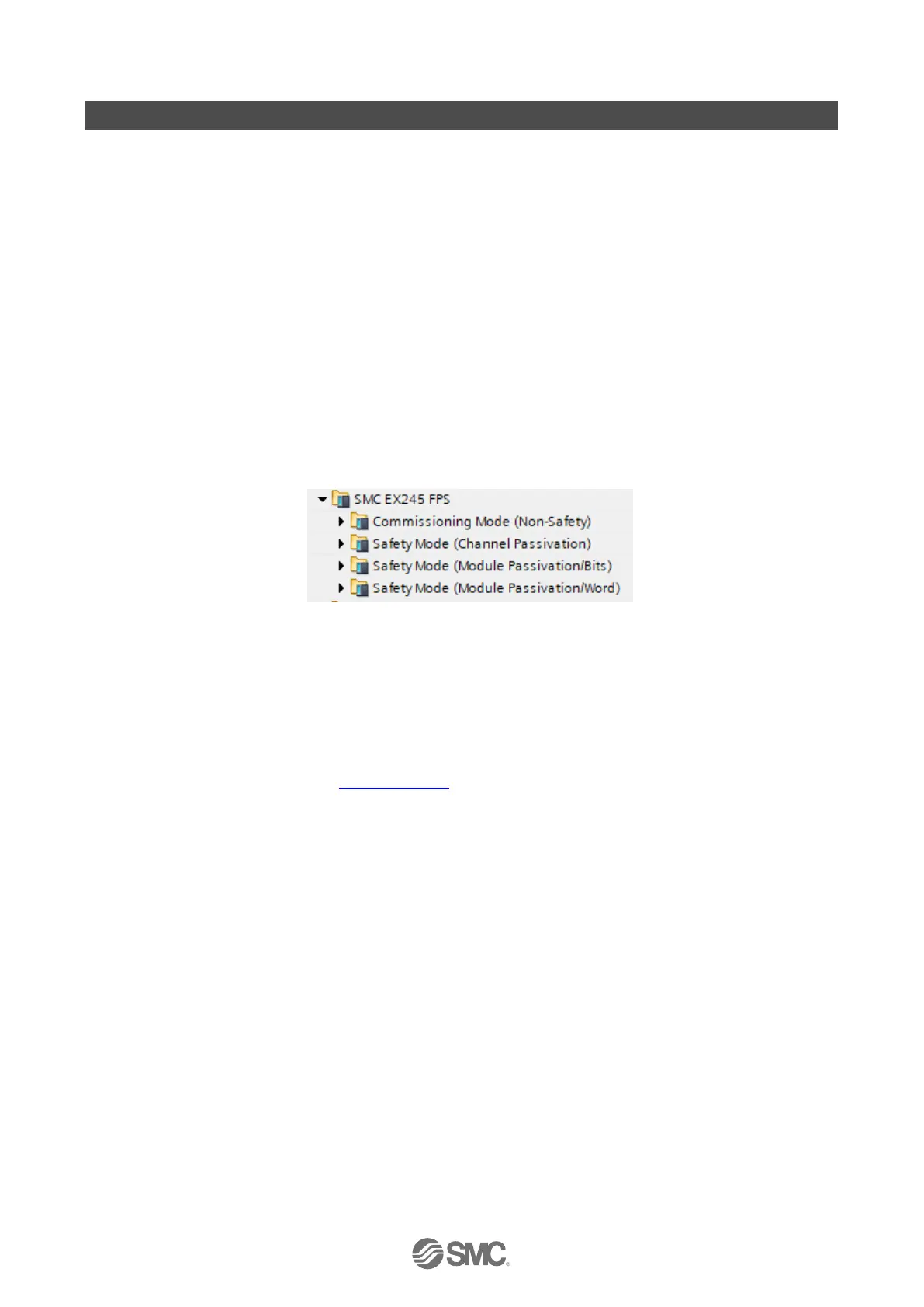

Fig. 8-1 Module definitions for EX245-FPS1/2/3
.
One entry (Commissioning Mode (Non-Safety)) contains module definitions when the EX245-FPS1/2/3 is
used in Commissioning Mode.
The remaining entries (Safety Mode (xxx)) contain definitions when the EX245-FPS1/2/3 is used in Safety
Mode.
Commissioning Mode is intended for use in product commissioning and must not be used for safety
applications.
The choice of operating mode (Commissioning Mode or Safety Mode) is user selectable and must match
the setting of the 2-bit DIP switch. Refer to 10.11.2
When used in Safety Mode the EX245-FPS1/2/3 can be configured how to react when a safety related
fault is detected.
Safety Mode (Channel Passivation):
In the event of a fault the affected channel(s) are passivated and "0" substitute values are used in
place of the normal channel value(s) within the process image. All other channels remain operational.
To resume normal channel functionality, remove the fault(s) and reintegrate the affected channel(s)
using the Function Block FB60
1
(available from SMC on request)
1
TIA Portal PLC program: PNDD_IL_Diag_V1_10 (FB60)
Safety Mode (Module Passivation/xxx):
In the event of a fault all channels are passivated and "0" substitute values are used for all channel
values within the process image. To resume normal functionality all faults must be removed, and the SI
unit reintegrated using the standard PROFIsafe acknowledgement process.
Note: Safety Mode (Module Passivation/xxx) can refer to either of these module types: - Safety Mode
(Module Passivation/Word) or Safety Mode (Module Passivation/Bit)
