SMC Networks EX245-FPS1 User Manual

- 59 -
No.EX##-OMY0004

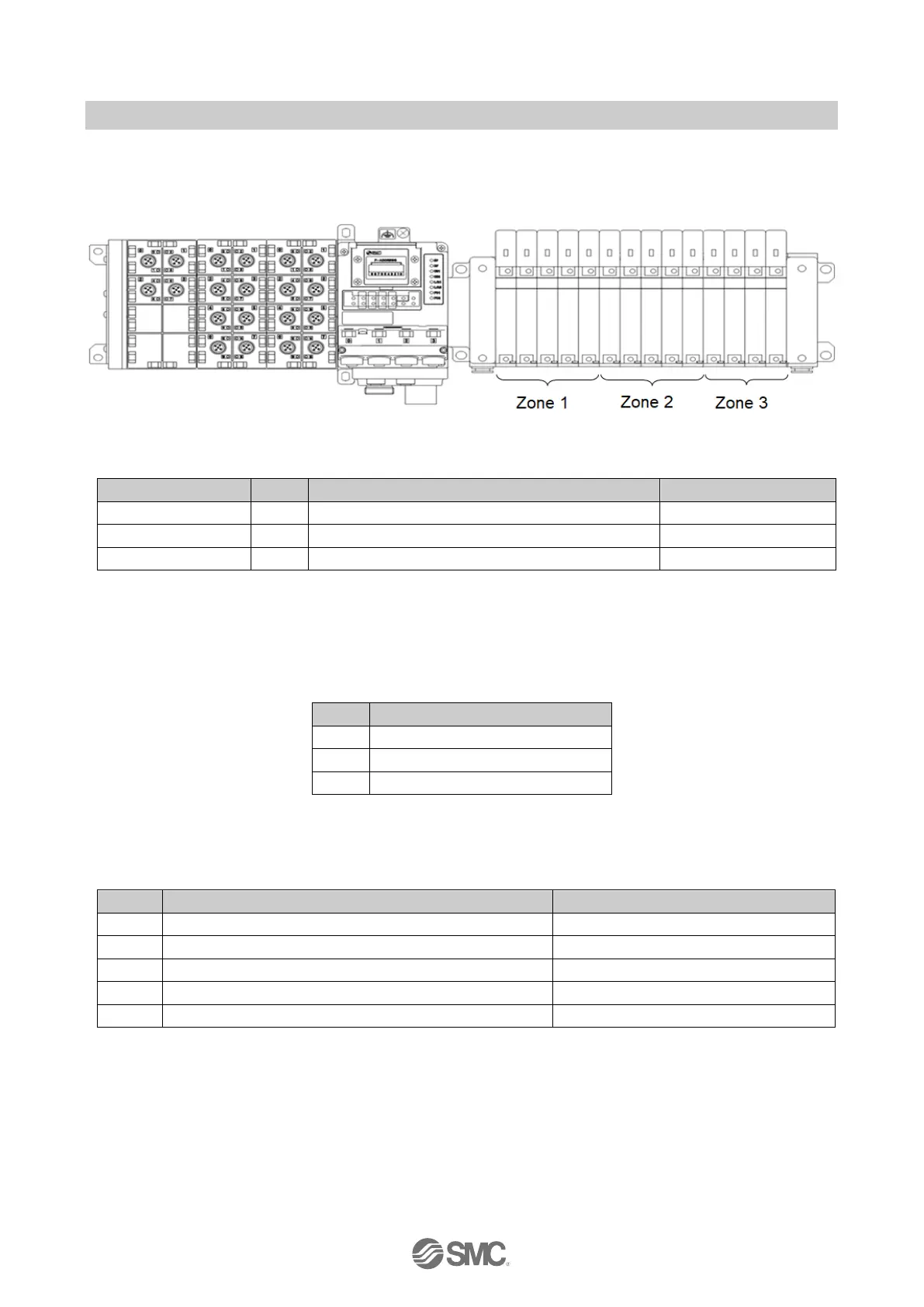

10.7. Process data for valves
The SI Unit occupies 3 bytes of output data for valves. The counting of valve coils starts at the SI Unit from
left to right.
Valve Zone
Bit
Description
Explanation
1
0-7
Valve coils 0-7 (of the 1st valve zone)
0: OFF, 1: ON
2
0-7
Valve coils 0-7 (of the 2nd valve zone)
0: OFF, 1: ON
3
0-7
Valve coils 0-7 (of the 3rd valve zone)
0: OFF, 1: ON
Fig. 10-3 The process data
10.8. Output status unit
Overview
Table 10-15 Overview
Byte
Description
0
Status of safe outputs
1
Status of the status bit in Byte 0
2
Switch ON ready
Byte 0: Status of safe outputs
The status of the safe outputs is shown after all internal safety tests have been performed
Table 10-16 Byte 0 Status of safe outputs
Bit
Description
Explanation
0
Status of safe output for IO Module
0: OFF, 1: ON
1
Status of safe output for valve zone 1
0: OFF, 1: ON
2
Status of safe output for valve zone 2
0: OFF, 1: ON
3
Status of safe output for valve zone 3
0: OFF, 1: ON
4…7
Reserved
Fixed 0
